Description

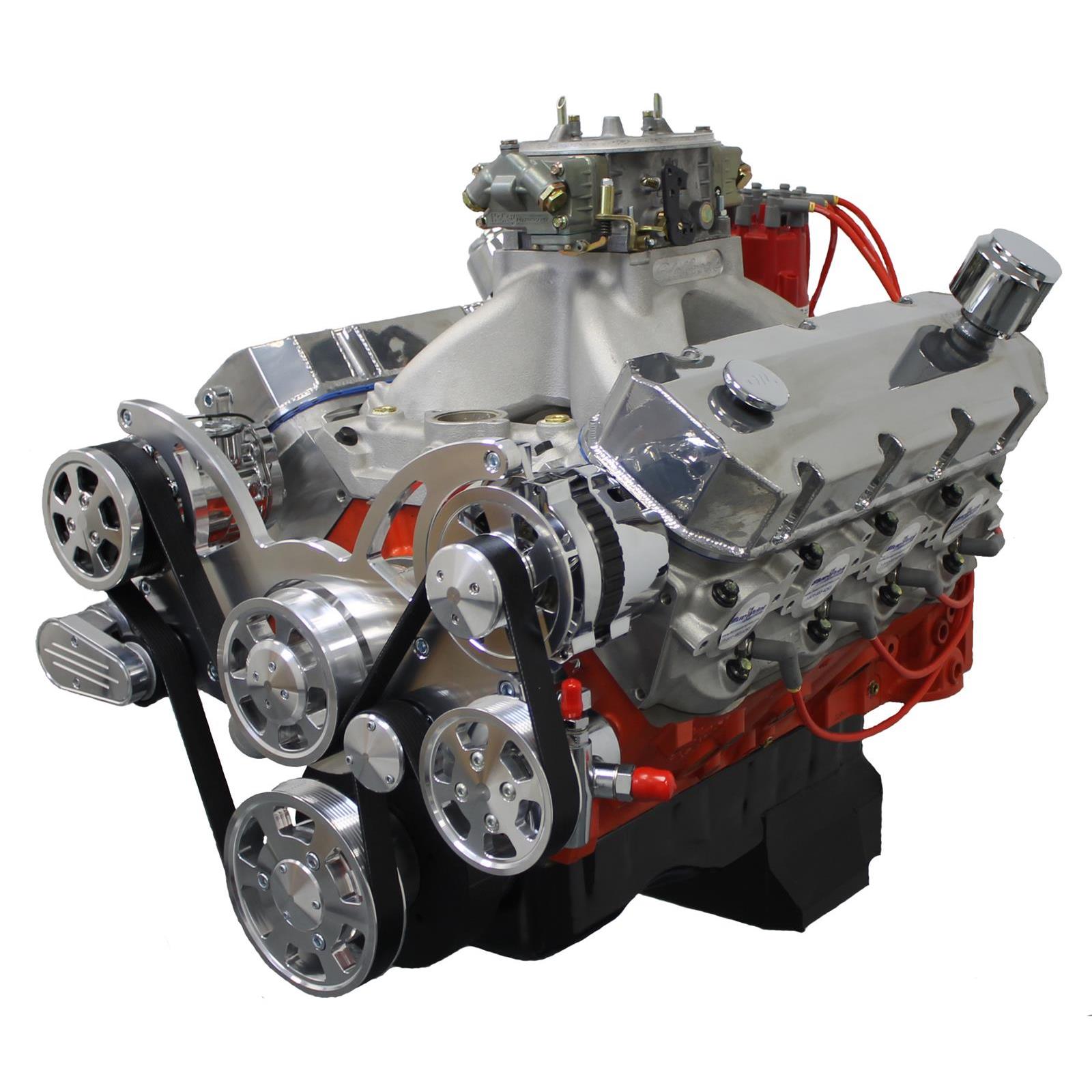

BluePrint PS5720CTCK 572 BBC Dressed W/ Polished Pulley Kit
572 CI ProSeries Stroker Crate Engine | Big Block GM Style | BBC | Drop In Ready – Polished
- HP & Torque: 745 HP / 710 FT LBS
- Compression Ratio: 10.0:1
- Aluminum Heads
- Hydraulic Roller Cam
- Forged Crank
- Forged Pistons
BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.500″
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Tall Deck
ROTATING ASSEMBLY:
New BluePrint Forged Crankshaft
4.500″ Stroke
Forged H-beam 6.535″ connecting rods
Forged Pistons
Internal
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -PS8013
119cc chamber
2.30″ intake/1.88″ exhaust valves
316cc intake/124cc exhaust runners
CAM SPECS:
Cam Type: Roller
.647 Intake .647 Exhaust
254 Intake / 262 Exhaust duration
@ .050 – 112 degree lobe separation
ALSO INCLUDES:
Polished Pulley kit
1250cfm carb
Aluminum, single plane intake manifold
MSD Pro Billet distributor
Valve covers, oil pan and timing cover
spark plugs
Spark plug wires
Harmonic balancer

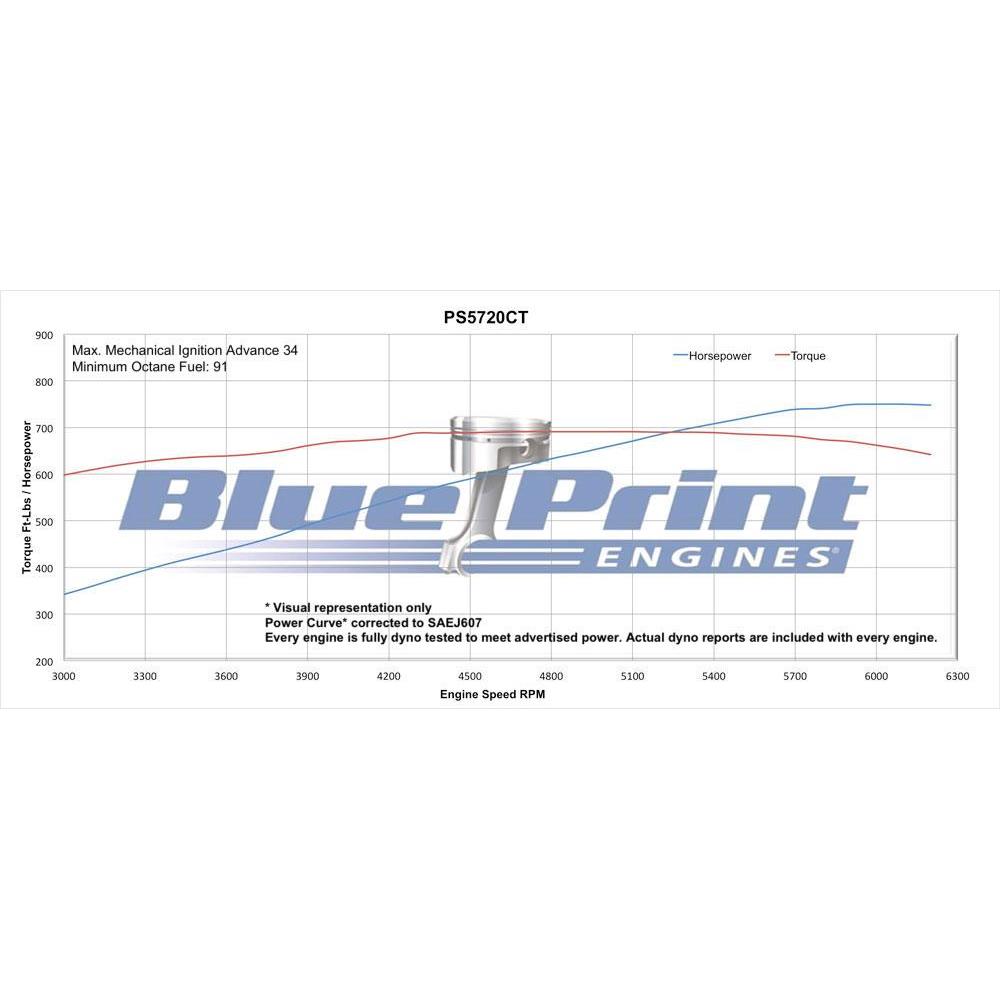

Dyno test results shipped with engine
*Not for use in pollution controlled vehicles.*
| KEY SPECS | |
|---|---|
| MFG. Part # | PS5720CTCK |
| Brand | BluePrint Engines |
| Engine Displacement | 572 cu. in. |
| Horsepower | 750 horsepower |
| Compression Ratio | 10.0:1 |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Forged Aluminum |
| Crankshaft Material | Forged |
| Combustion Chamber Volume | 119cc |
| Camshaft Lift (in) | .698 intake / .698 exhaust |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Valve Covers Included | Yes |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
