Overview:

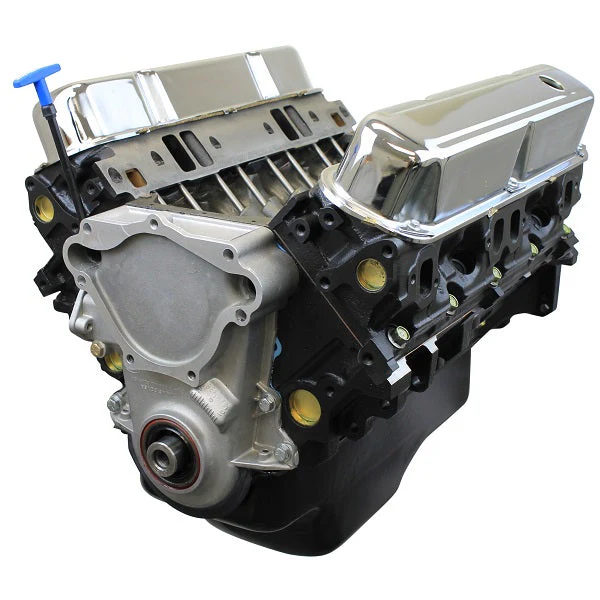

BluePrints BPC4082CT Chrysler Small Block Compatible performance crate engines are dyno tested with a Holley Classic 750cfm Vacuum Secondary Carburetor w/ Manual Choke. This produces 375 horsepower and 460 ft. lbs. torque. This engine comes with Dipstick, Oil Pan, Timing Cover, Valve Covers, and Magnum Cast Iron Heads. This engine comes with Magnum heads so it will require a Magnum Intake Manifold (BPP7577).
Description:
Horsepower & Torque: 375 Horsepower / 460 FT. LBS. Torque
Compression Ratio: 9.8:1
Cast Iron Heads
Flat Tappet Cam
Cast Crankshaft
Forged Pistons
Block:
Hand-Picked Seasoned Block
Square and Parallel Decked
Align Honed Main Bearing Bore
Cylinders Honed on Computer Controlled Machine to Within .0002 Straightness and Roundness
Cylinders are Sonic Tested for Thickness
2-Bolt Main
4.040″ Bore
2-Piece Rear Main Seal
Mech Fuel Pump Provision: Yes
Rotating Assembly:
Cast Crankshaft
4.000″ Stroke
Forged Magnum 6.123″ Connecting Rods w/ 150,000 PSI Bolts
Forged Pistons
Externally Balanced Front and Rear
Cylinder Heads:
NEW Magnum Cast Iron Heads
Hardened Retainers and Springs
1.92″ Swirl Polished Intake Valves
1.625″ Swirl Polished Exhaust Valves
Hardened Push Rods
Cam Specs:
Cam Type: Flat Tappet
.474 Intake / .474 Exhaust Lift
233 Intake / 240 Exhaust Duration
@.050-110 Degree Lobe Separation
Ignition Timing:
34 Degrees at 3500 RPM
Also Includes:
Valve Covers
Oil Pan
Timing Cover
