Description

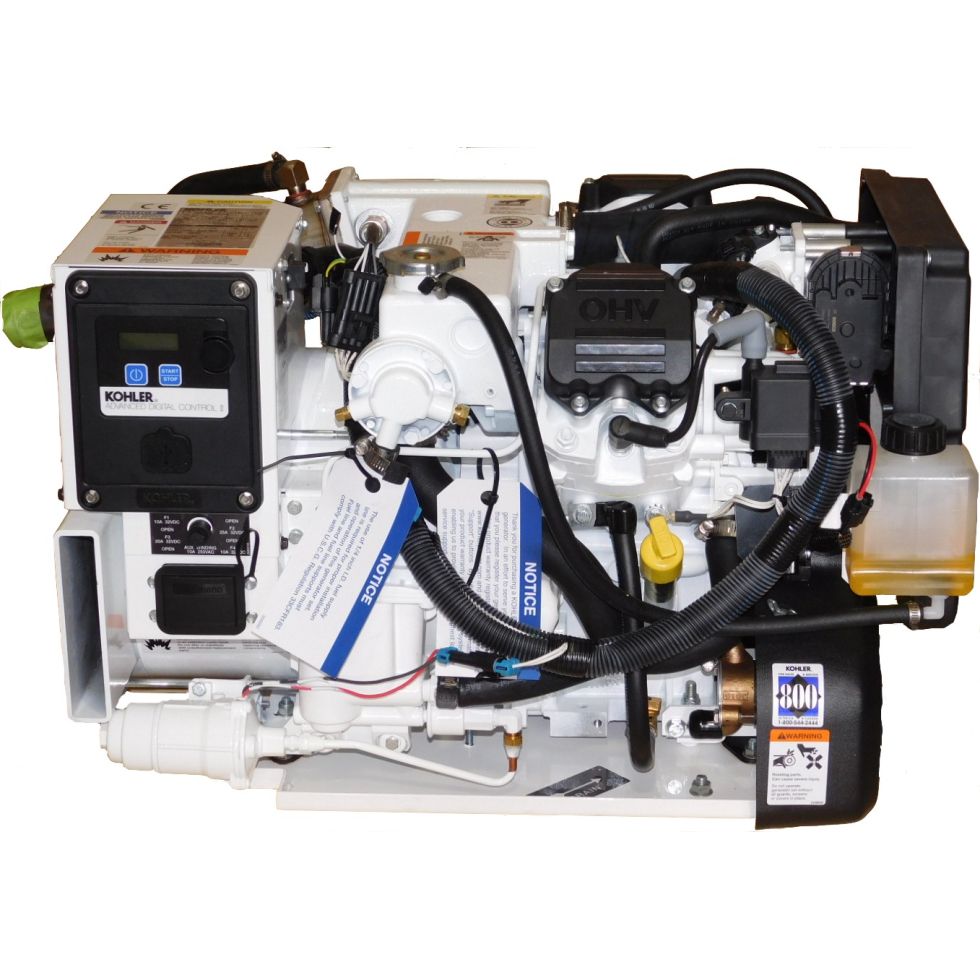

10EKD – 10kW Generator, Gas Fueled, 60Hz, 120V, 1-Phase, Heat Exchanged
Features of the KOHLER 10EKD – 10kW Marine Generator
Integral heat exchanger
CARB/EPA emission compliant (Low CO)
One-side serviceability of fuel filter, cooling systems, and lubrication system
Sequential-port throttle-body fuel injected Attached overflow bottle
Remote start 12-pin connector.
Voltage regulation of ±1.5%.
Rotor and stator are vacuum impregnated and coated with high-bond epoxy varnish. Varnish helps prevent corrosion in high-humidity areas.
Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for class H insulation.
Directly connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket (or end bearing tolerance ring) to prevent shaft misalignment and extend bearing life.
Specifications
Hertz: 60 Hz
spacer
Generator with sound shield
Width: 500 mm (19.69 in.)
Height: 467 mm (18.39 in.)
Length: 773 mm (30.43 in.)
Weight, wet: 132 kg (290 lbs)
spacer
Generator without sound shield
Width: 466 mm (18.35 in.)
Height: 445 mm (17.51 in.)
Length: 691 mm (27.2 in.)
Weight, dry: 118 kg (260 lbs)
Weight, wet: 120 kg (265 lbs)
