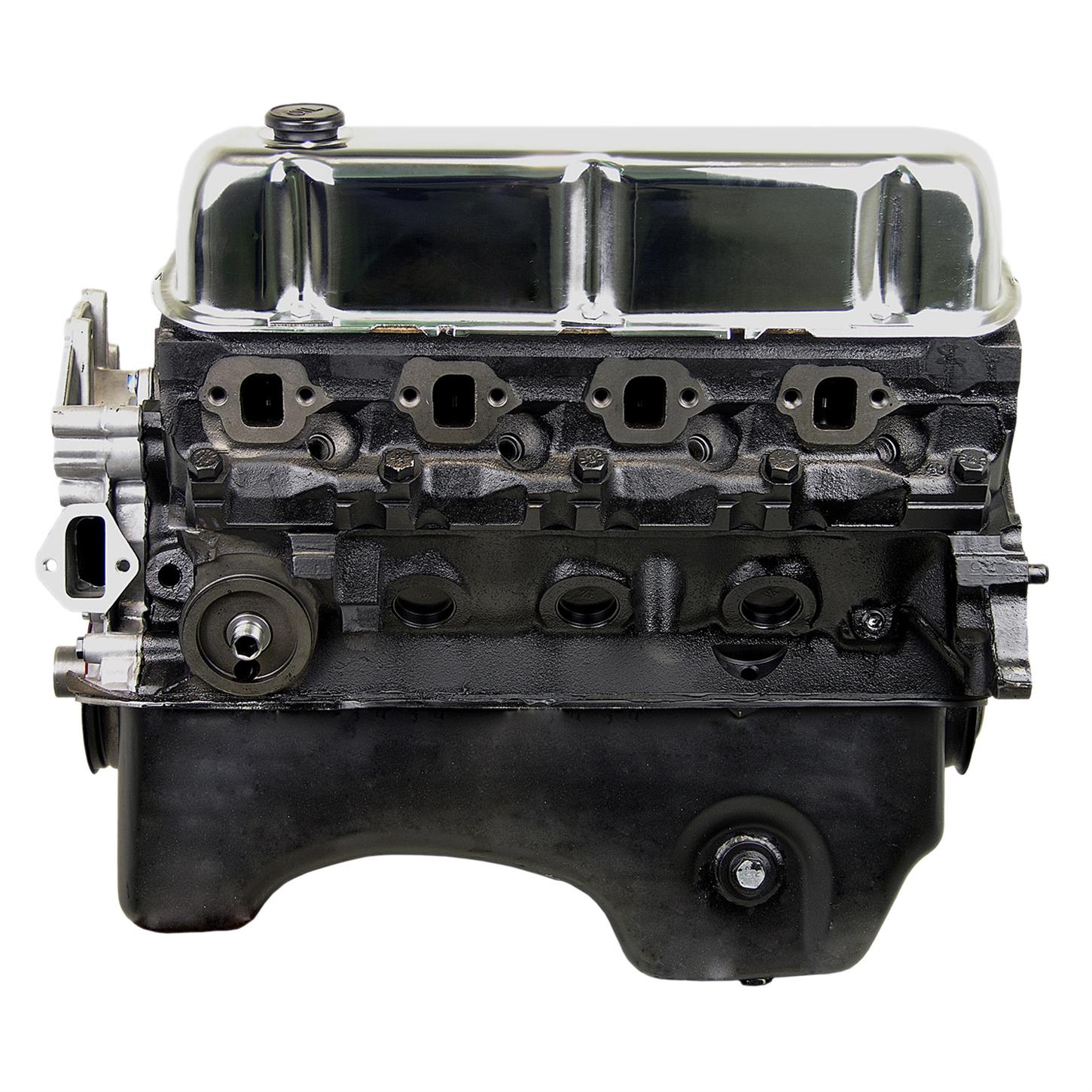

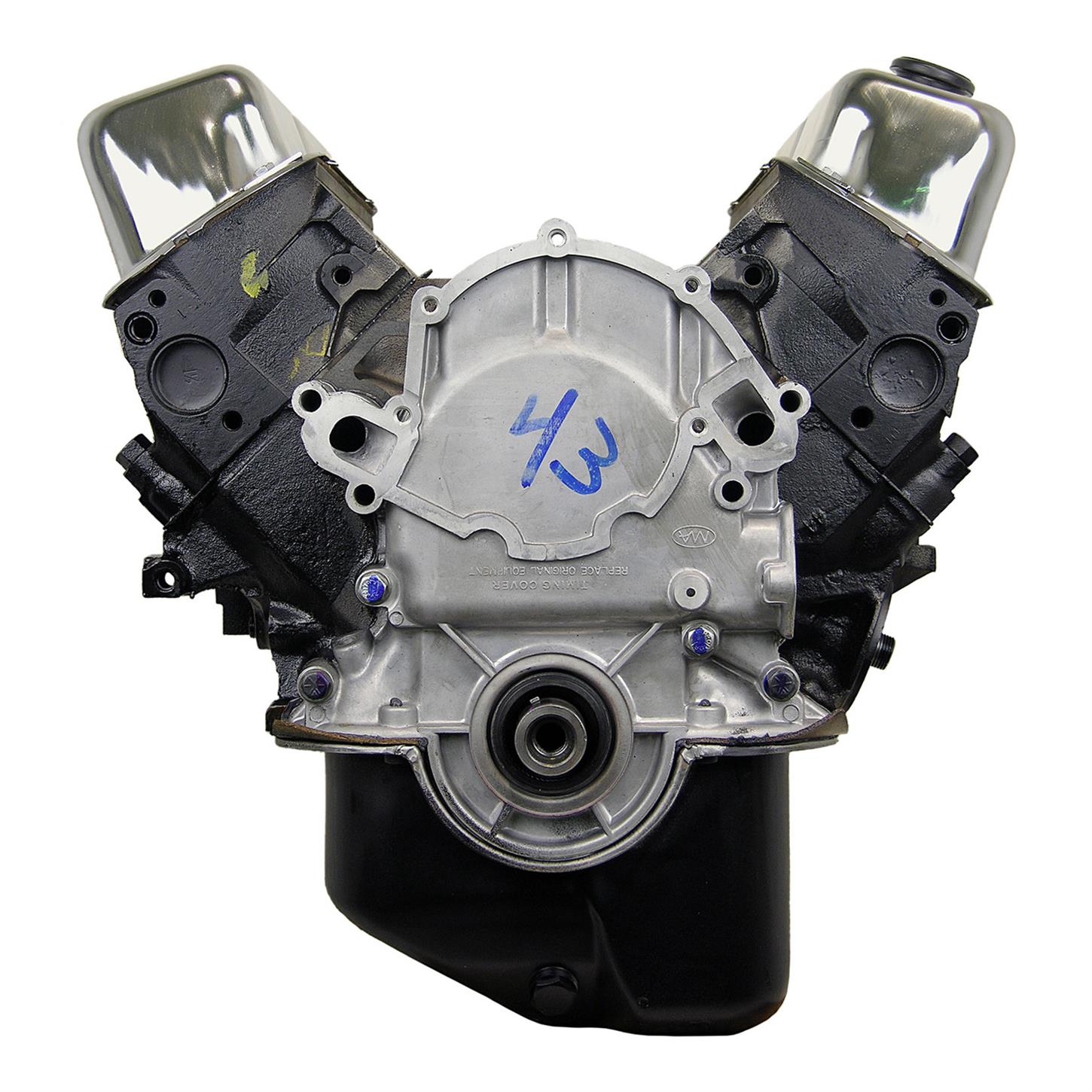

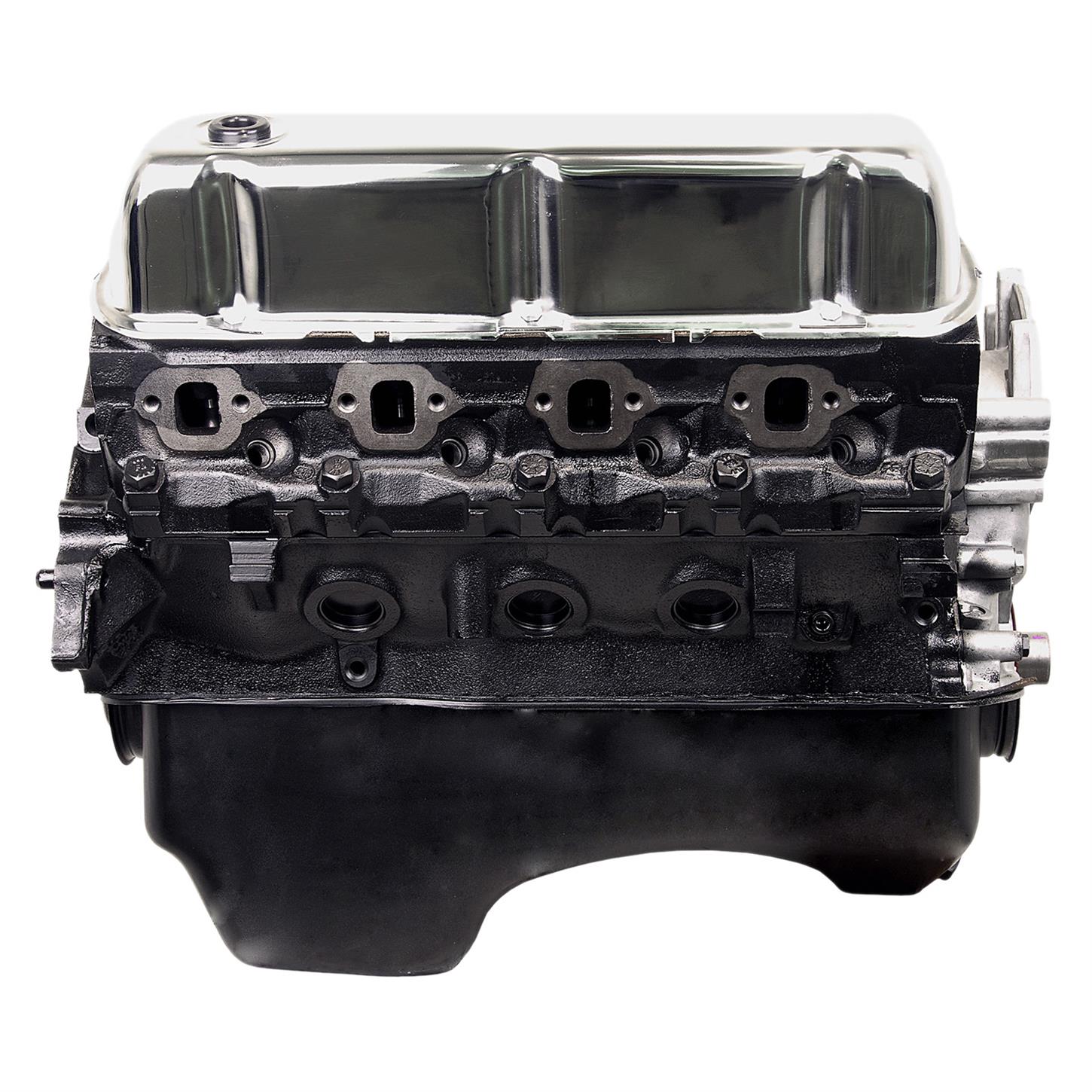

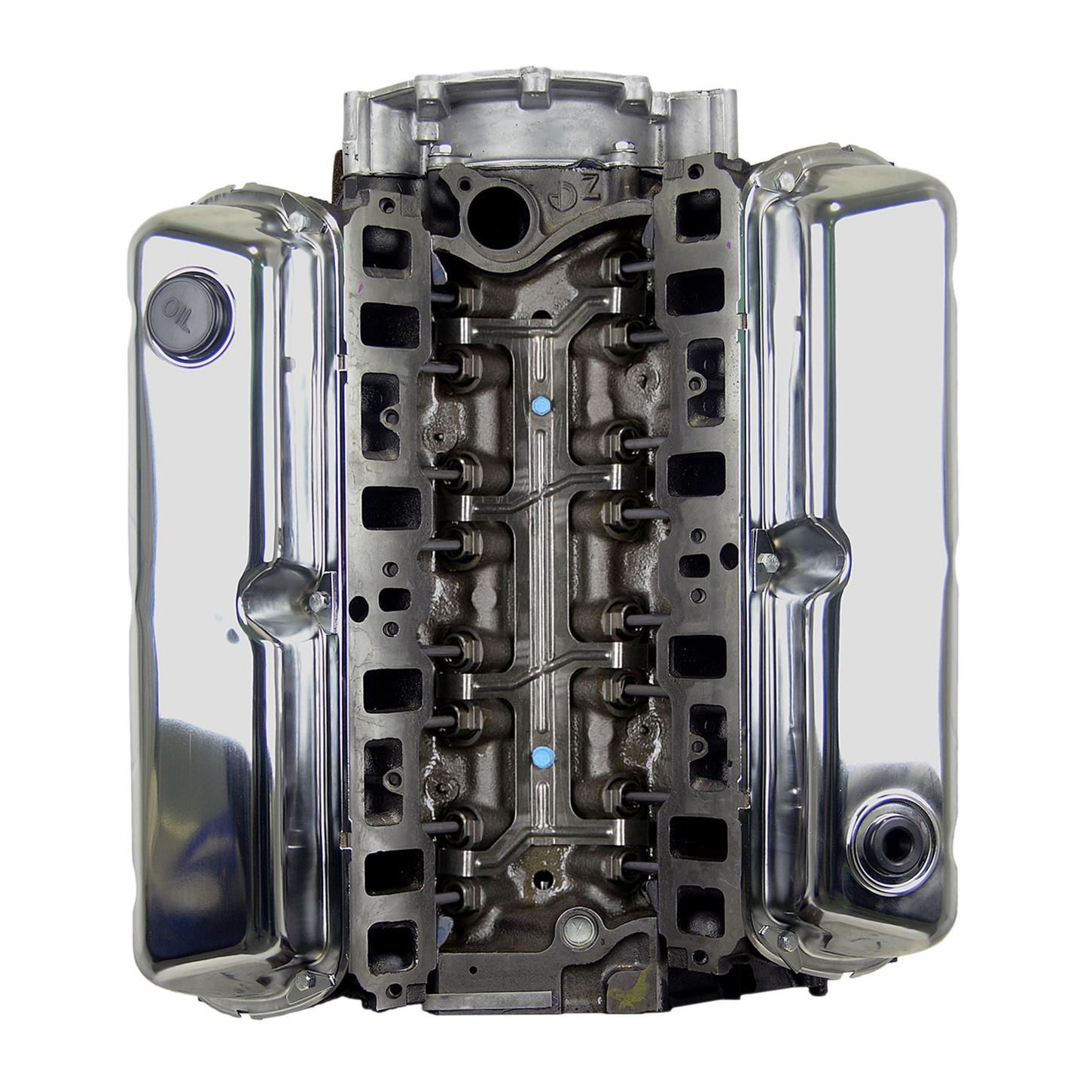

ATK HP06 Ford 302 Base Engine 300HP with Fox Body Oil Pan

Engine Specifications:

• HP: 300
• TQ: 336
• Block: Seasoned OE roller block 1987-1995
• Bore/Stroke: up to 4.060 x 3.000
• Displacement: 302CI
• Crankshaft: OE 1 Piece seal external balance 50oz
• Rods: OE
• Pistons: Hypereutectic 9.1:1 compression
• Rings: Moly
• Camshaft: Hyd. roller
• Cam Specs: 219/219 @50 .498in/.498ex 110LSA
• Timing Chain: Double roller
• Cylinder Heads: OE E5TE/E7TE 62cc 1.77/1.46
• Rocker Arms: Stamped steel 1.6 pedestal mount rockers
• Oil Pan: Fox body (mustang dual sump)
• Oil Pump: Melling high volume
  Recommended Components:

• Balancer: External balance 50oz
• Flexplate/Flywheel: External balance 50oz
• Intake Manifold: Weiand dual Plane #8020 or factory 1987-1995 mustang EFI intake
• Fuel Injection: Will not work with Ford factory speed density EFI or F-Series Trucks, Broncos or Vans. If installed in a 1987-1995 Mustang you must tune the ECM
• Carburetor: Edelbrock thunder series 650CFM #1806
• Fuel Pump: Holley Mechanical 110GPH #12-289-11 or Factory Electric if installed in 1987-1995 Mustang
• Distributor: Pro Billet RTR (steel gear or upgraded melonite) or Factory
• Spark Plugs: Autolite #24
• Spark Plug Wires: 8mm
• Water Pump: OE Per Application/Factory
  Engine Info:

• Oil: 10W30
• Oil Filter: Wix or K and N
• Timing: 34-36 Degrees (vacuum port plugged on carburetor)
• Spark Plug Gap: .035”
• Firing Order: 13726548
• Octane: 91+
• Stall Converter: Stock
• Exhaust: 1 5/8 Headers
  Disclaimer:

  The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work for their application. Some modifications to the vehicle may be required using these and or other aftermarket parts.
