Description

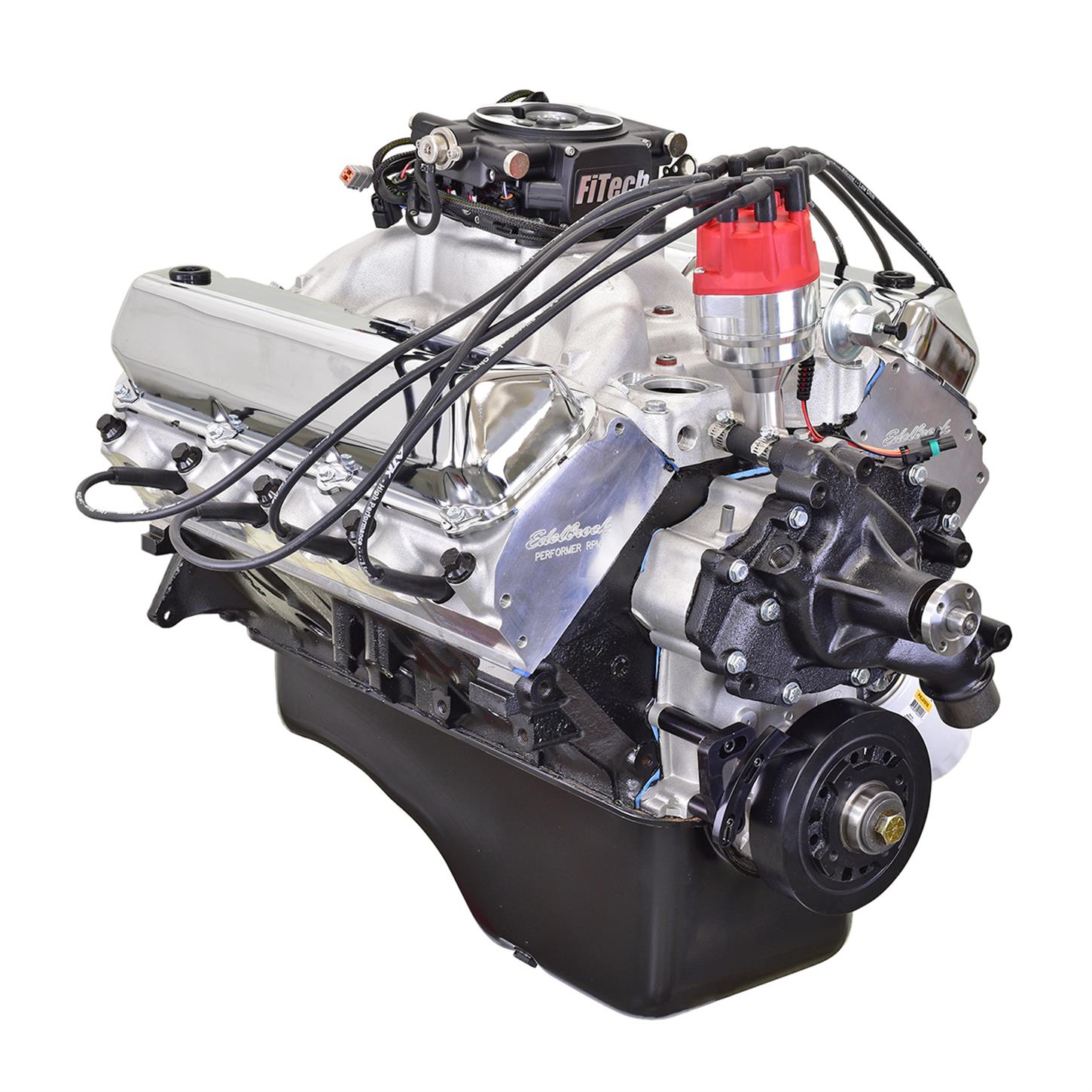

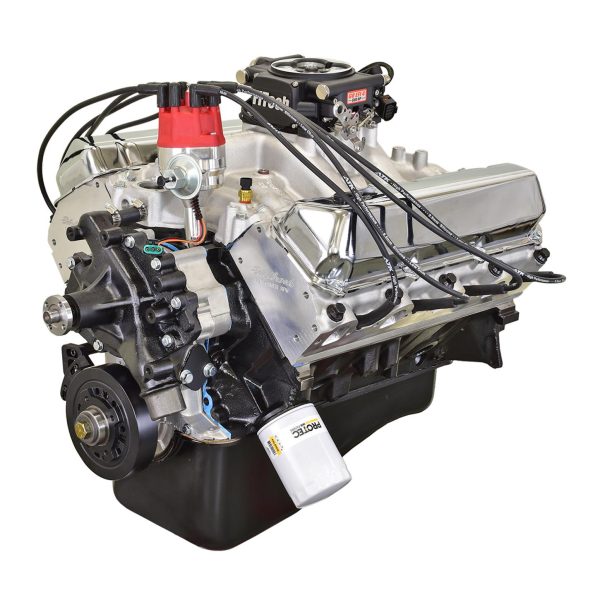

ATK HP102C-EFI Ford 502 Complete Engine 515HP
Engine Specifications:
- HP: 515+
- TQ: 585+
- Block: Seasoned OE block 1987-1992
- Bore/Stroke: 4.400 x 4.150
- Displacement: 502
- Crankshaft: Scat nodular iron internal balance
- Rods: Scat 4340 forged I beam with ARP 8740 bolts
- Pistons: Hypereutectic 9.5.1 compression
- Rings: Moly
- Camshaft: Hyd. flat tappet
- Cam Specs: 225/235 @50 .536in/.541ex 112LSA
- Timing Chain: Double roller
- Cylinder Heads: Edelbrock performer RPM aluminum 75cc/292cc 2.190/1.760
- Rocker Arms: Stainless steel 1.73 ratio
- Oil Pan: Front sump
- Oil Pump: Melling high volume
- Balancer: PowerBond internal balance #PB1210-N
- Flexplate/Flywheel: Pioneer internal balance #FRA-207
- Intake Manifold: Edelbrock performer RPM dual plane #7166
- Distributor: Pro billet RTR (Iron Gear)
- Water Pump: OE Cast iron
- Fuel Injection: FITECH EFI 6000HP unit with ECM and Harness
- Fuel Pump: Not provided
- Spark Plugs: Autolite #3923
- Spark Plug Wires: 8mm
Engine Info:
- Oil: Conventional / Non Synthetic 10W30 with Comp Cam zinc additive #159 for first 3000 miles
- Oil Filter: Wix or K and N per application
- Timing: 34-36 Degrees
- Spark Plug Gap: .035”
- Firing Order: 15426378
- Octane: 91+
- Stall Converter: 2200-2500
- Exhaust: 1 ¾-2” Headers
Disclaimer:
The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. ATK reserves the right to substitute parts used in engines if necessary.
| KEY SPECS | |
|---|---|
| MFG. Part # | HP102C-EFI |
| Brand | ATK Engines |
| Engine Displacement | 8.2 liters |
| Compression Ratio | 9.5:1 |
| Camshaft Type | Hydraulic Flat Tappet |
| Cylinder Head Material | Aluminum |
| Carburetor Included | No |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Valve Covers Included | Yes |
| Engine Balance | Internal |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | Yes |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | Yes |
| Wiring Harness Included | Yes |
