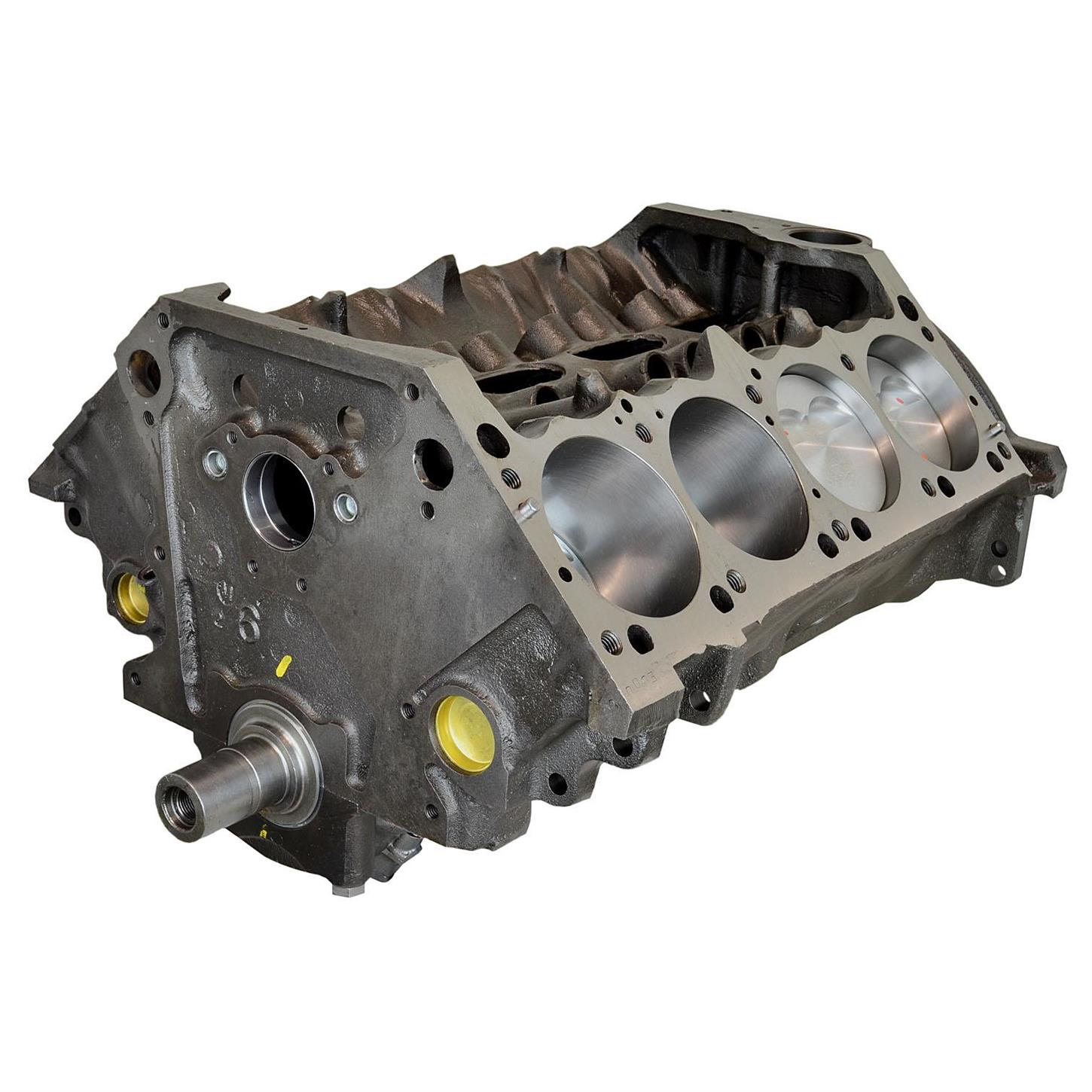

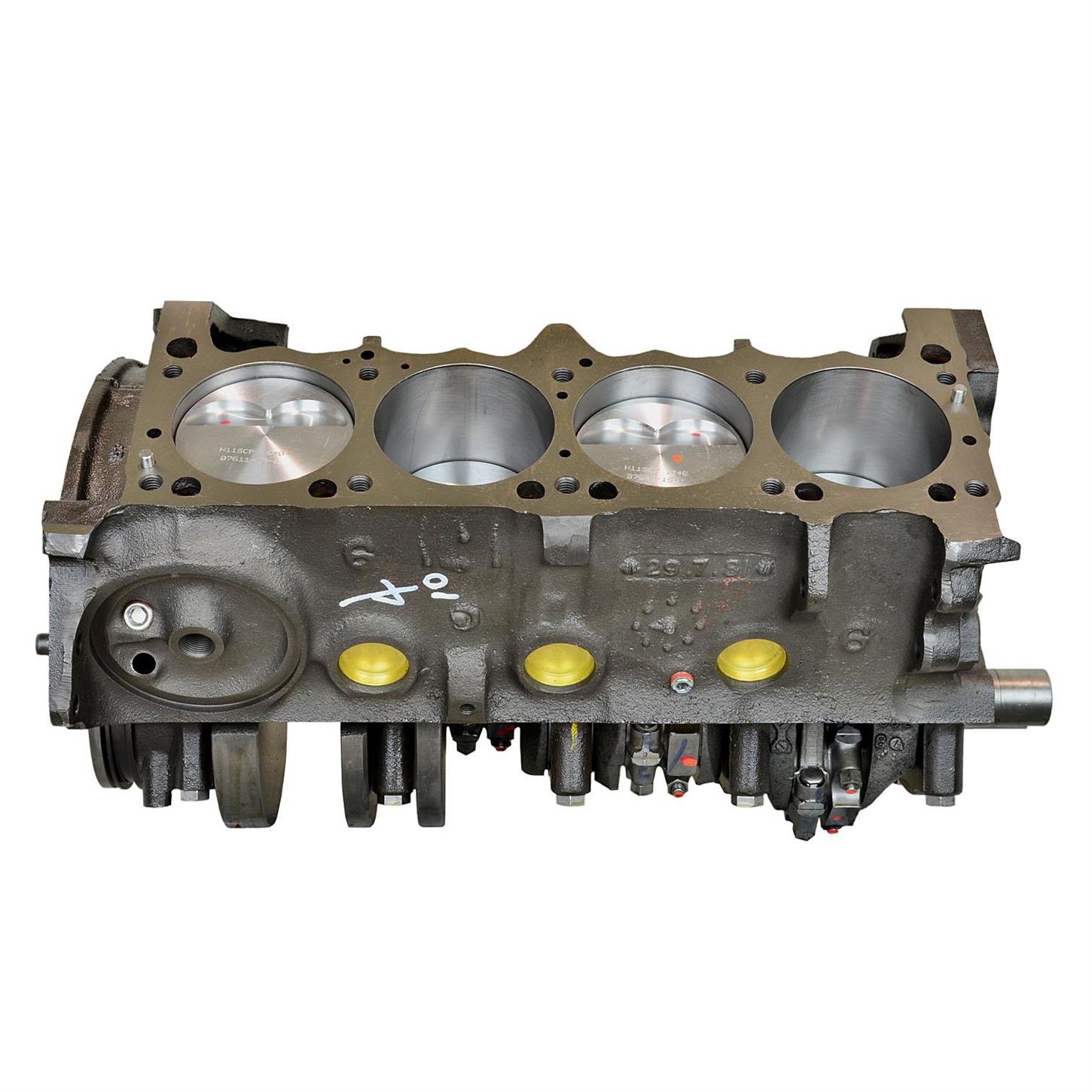

ATK SP61 Chrysler 408CI Magnum Short Block -23.5cc Dished Pistons

Engine Specifications:

• Block: OE Magnum 1993-2001
• Bore/Stroke: 4.040” x 4.000”
• Displacement: 408CI
• Crankshaft: Scat nodular iron internally balanced
• Rods: Scat 4340 forged I beam with ARP 8740 bolts
• Pistons: Hypereutectic -23.5cc dished
• Compression Ratios: 62cc = 9.7:1 / 68cc = 9.2:1 / 72cc=8.9:1 (can vary due to deck height/gasket thickness)
• Rings: Plasmamoly
• Camshaft Bearings: Dura-Bond, installed and clocked to OEM position
• Freeze Plugs: Brass, installed and sealed
• Oil Galley Plugs: Installed and sealed
  Recommended Components:

• Balancer: Internal balance
• Flexplate/Flywheel: Internal balance
• Head Gasket: .048” or per application
  Engine Info:

• Oil: 10W30 Non synthetic for first 3000 miles
• Oil Filter: Wix or K and N per application
  Disclaimer:

  The recommended components listed are ATK’s recommendations of parts to be used, applications vary and your build may need something different. Contact ATK for a recommendation if you’re not certain about a component to use. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. . ATK reserves the right to substitute parts used in engines if necessary.
