ATS Diesel Performance Stage 6 Automatic Transmission Packages 309-963-4332

Description

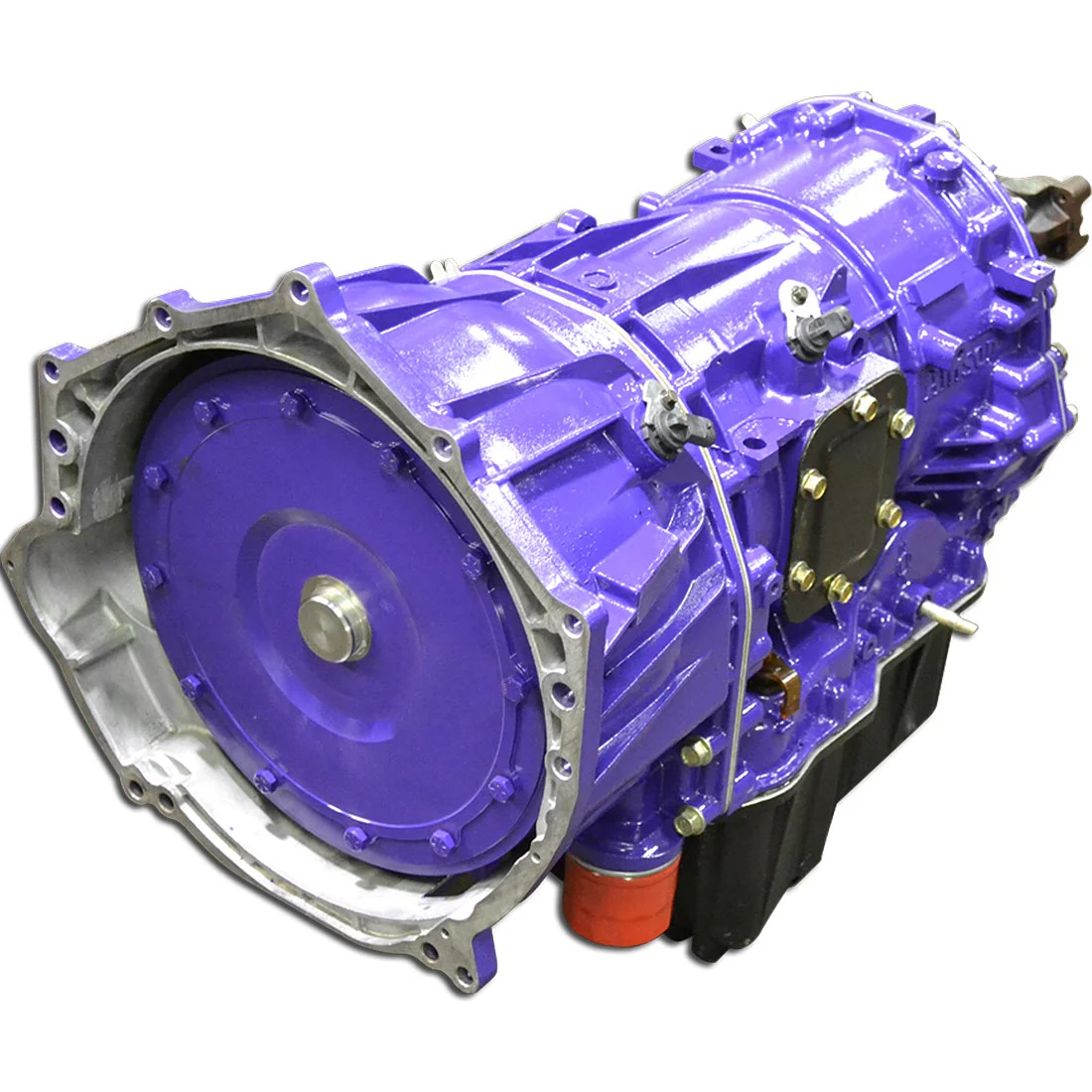

ATS Diesel Performance Stage 6 Automatic Transmission Packages 309-963-4332

Brand: ATS Diesel Performance

Manufacturer’s Part Number: 309-963-4332

Part Type: Automatic Transmissions

Product Line: ATS Diesel Performance Stage 6 Automatic Transmission Packages

Summit Racing Part Number: APF-3099634332

Number of Gears: 6

Bellhousing Bolt Pattern Manufacturer: Chevy

Transmission Shift Pattern: Standard

Valve Body Style: Automatic

Torque Converter Included: Yes

Flexplate Included: No

Transmission Controller Included: Yes

Wiring Harness Included: Yes

Transmission Cooler Included: No

Advertised Flash Stall Rating: 1,300-1,500 rpm

Trans-Brake Included: No

Lockup Compatible: Yes

Transmission Pan Style: Deep

Transmission Pan Material: Aluminum

Transmission Pan Finish: Black

Input Shaft Material: 300M

Transmission Case Style: OEM

Transmission Case Material: Aluminum

Transmission Case Finish: Purple

Transmission Shield Built In: No

Flexplate Shield Built In: No

Transmission Fluid Included: No

Dipstick Included: No

Remanufactured: Yes

Quantity: Sold as a kit.

ATS Diesel Performance Stage 6 Automatic Transmission Packages

ATS Diesel Performance Stage 6 automatic transmission packages are designed to comprehensively address inherent weaknesses in stock versions—to produce strong, reliable transmissions for towing, daily driving, or racing. This is achieved by utilizing the ATS extra-deep, finned transmission pan for added cooling power, along with other key parts modified for high performance. Get all that modified power to the wheels with a transmission package that can handle it: ATS Diesel Performance Stage 6 automatic transmission packages. Order the model recommended for your specific vehicle and engine size.

Features, items, and specs may include:

* ATS formulated clutch material (bonded in-house to CNC laser-cut clutch steels)
* TripleLok or triple-patented Five Star torque converter (depending on application)
* 300M billet shafts
* Billet flex plate
* Torrington bearing construction
* Performance transmission pump
* Modified high performance clutch packs/bands
* Modified valve body focusing on precise shifts and increased line pressure/torque capacity
* New bearings, seals, and gaskets
* Co-Pilot transmission controller
* 5-year/500,000 mile warranty
