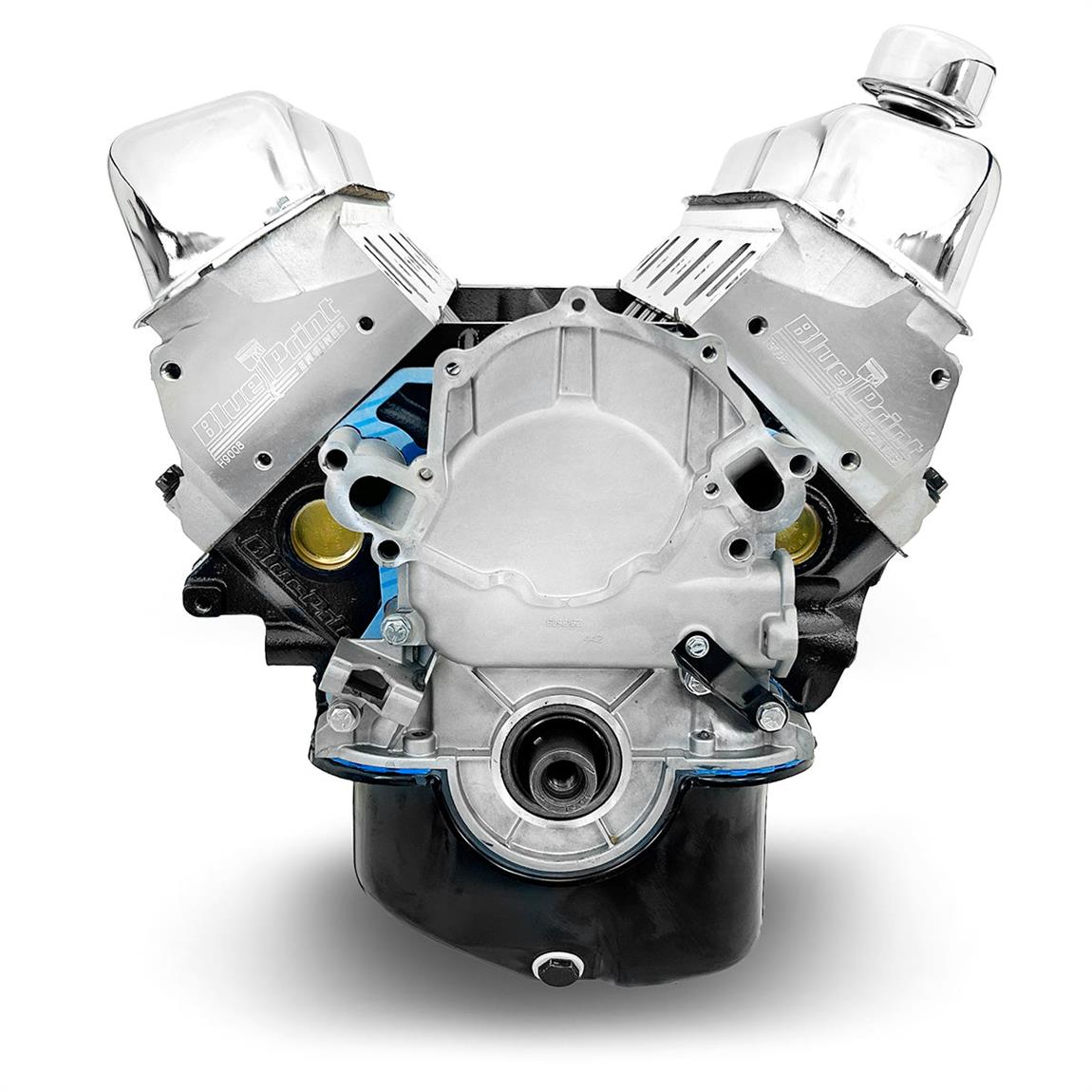

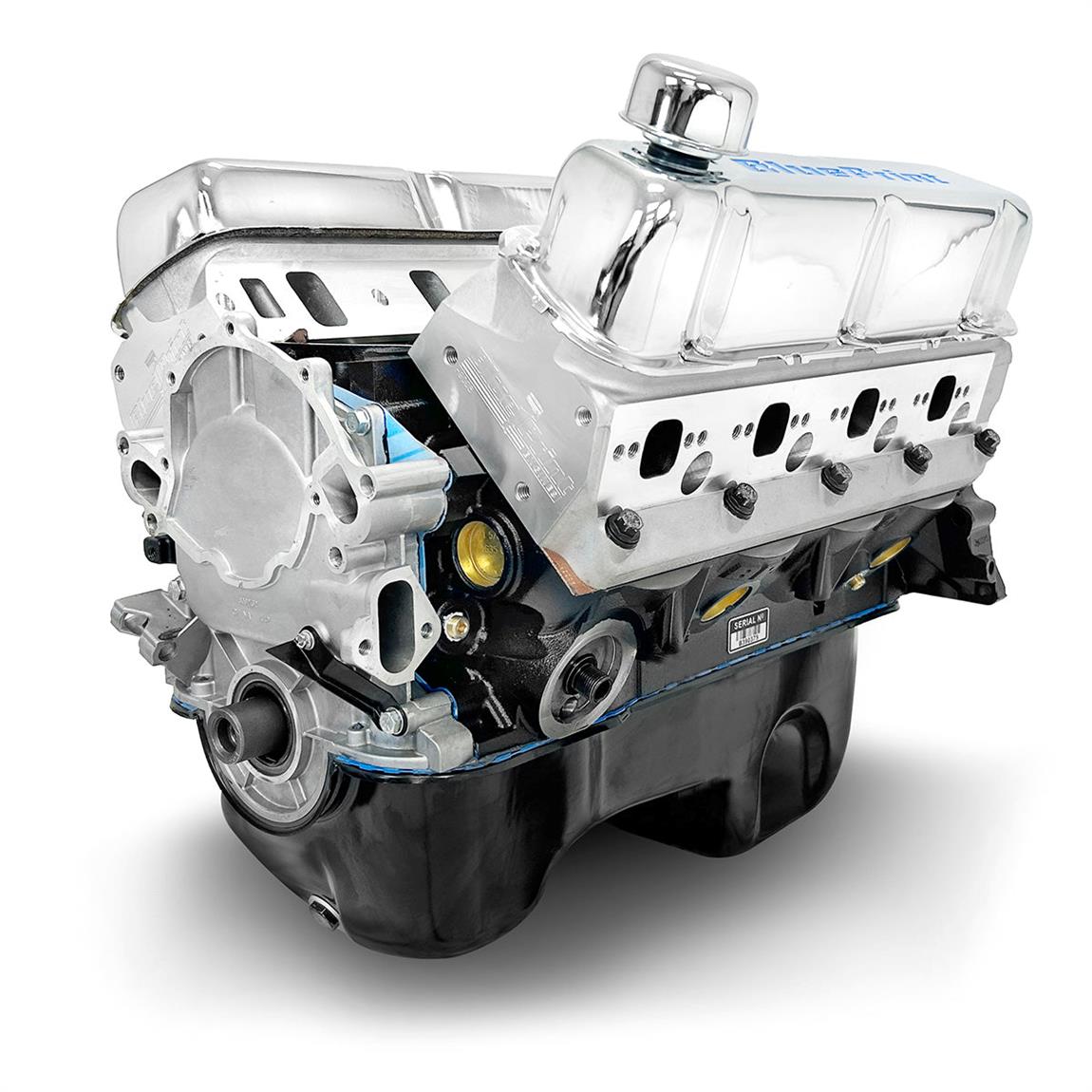

BluePrint BP302RCT 302 Cruiser Crate Engine, Longblock, Rear Sump

• BluePrint Engines Small Block Ford 302 Cruiser Crate Engine
• Small Block Ford Style Longblock With Aluminum Heads, Roller Cam, and Rear Sump Pan
• HP And Torque: 361 HP / 334 FT LBS
• Compression Ratio: 9.4:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Steel Crank
• Hypereutectic Pistons

BLOCK:

NEW BluePrint Cast Iron Block

4-Bolt Main

4.000″ Bore

1-Piece Rear Main Seal

Mech fuel pump provision: Yes

ROTATING ASSEMBLY:

3.000″ Stroke

OEM type 5.090″ connecting rods

Hypereutectic pistons

50oz External balance

CYLINDER HEADS:

BluePrint Aluminum Cylinder Heads -HP9008

60cc chamber

2.02″ intake/1.60″ exhaust valves

190cc intake/60cc exhaust runners

CAM SPECS:

Roller Cam

.533 Intake / .544 Exhaust

215 Intake / 220 Exhaust Duration

@ .050 – 114 Degree Lobe Separation

IGNITION TIMING:

10-16 degrees initial, 32-34 total

ALSO INCLUDES:

Rear Sump Oil Pan

Valve Covers

Timing Cover

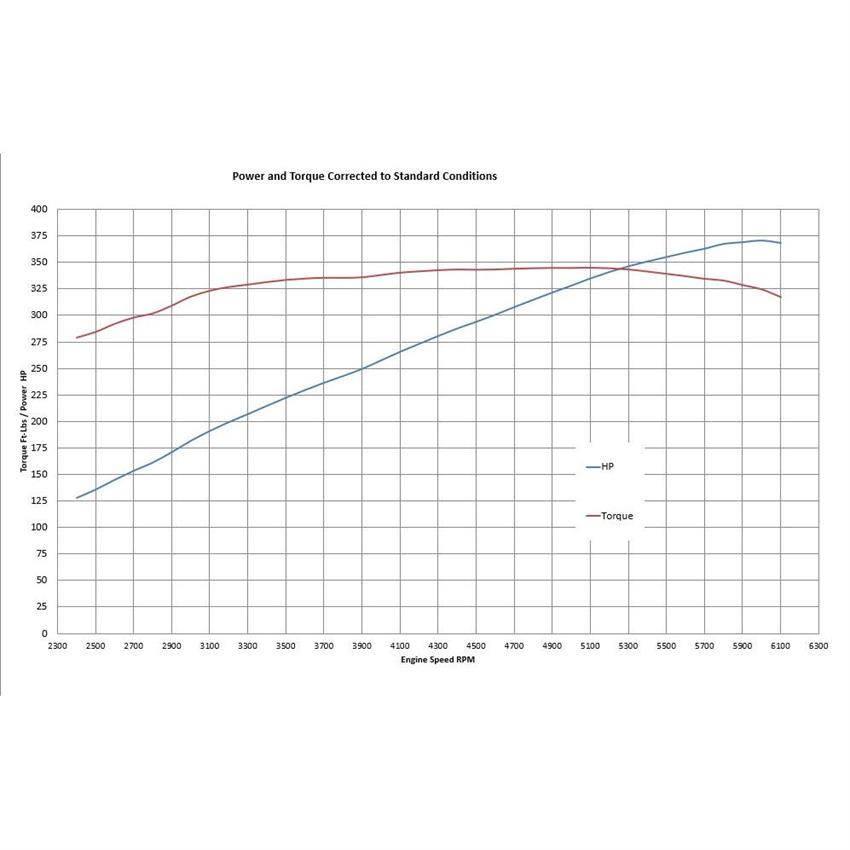

Dyno test results shipped with engine

WARRANTY:

30 month / 50,000 mile
