Description

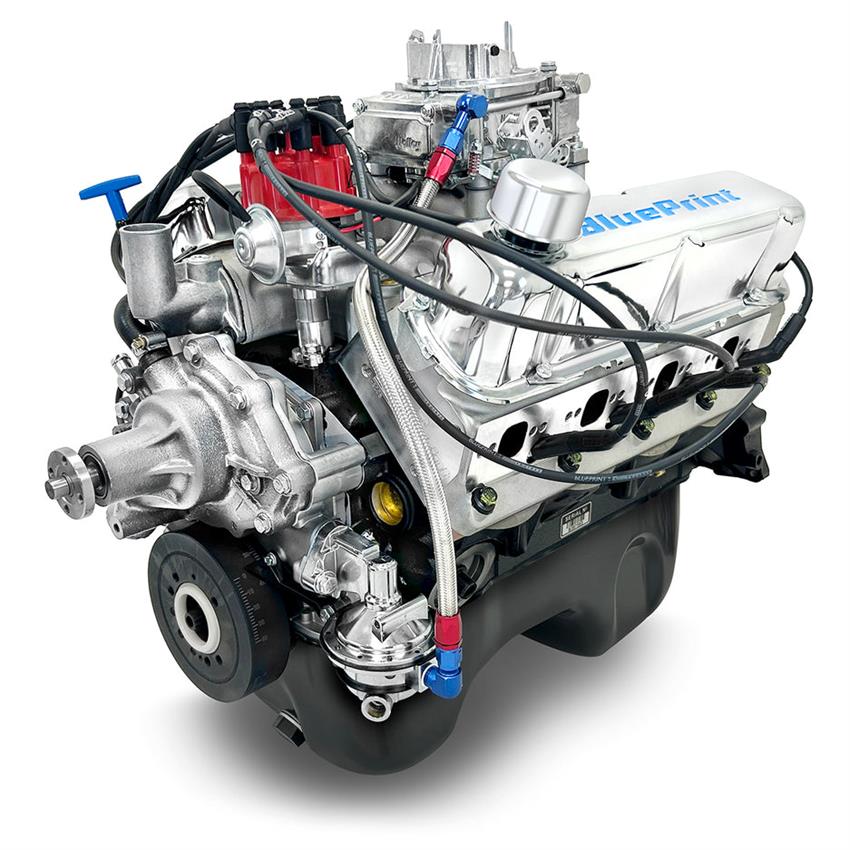

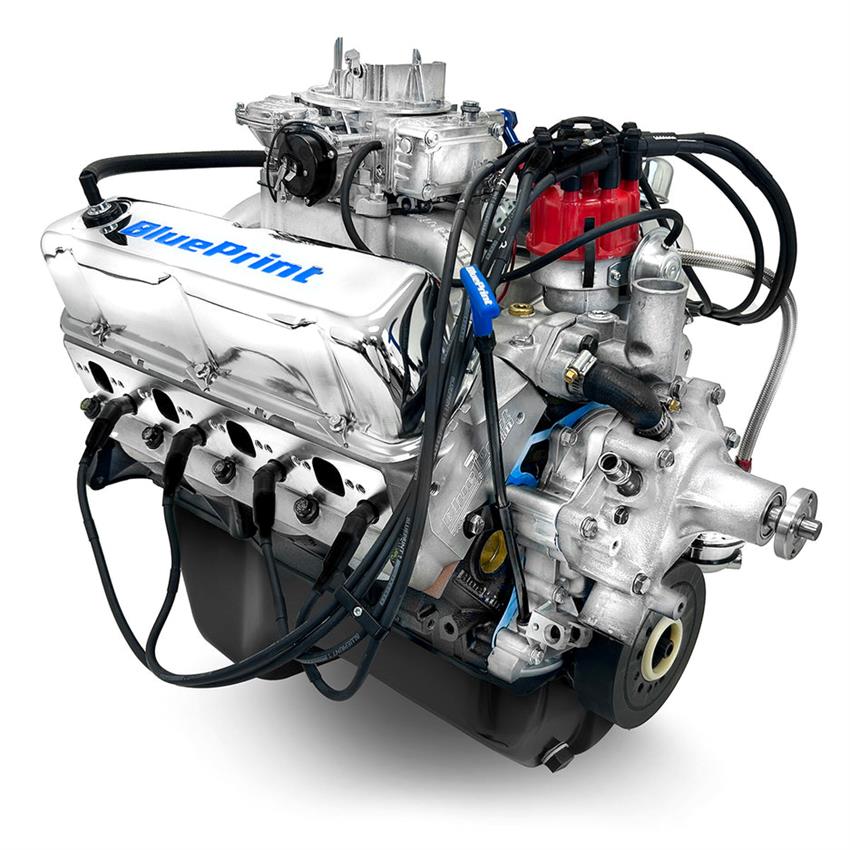

BluePrint BP302RCTCD 302 Cruiser Crate Engine, Dlx Dressed, Carb
- BluePrint Engines Small Block Ford 302 Cruiser Crate Engine
- Carbureted Deluxe Dressed Longblock with Aluminum Heads, Roller Cam, and Rear Sump Pan

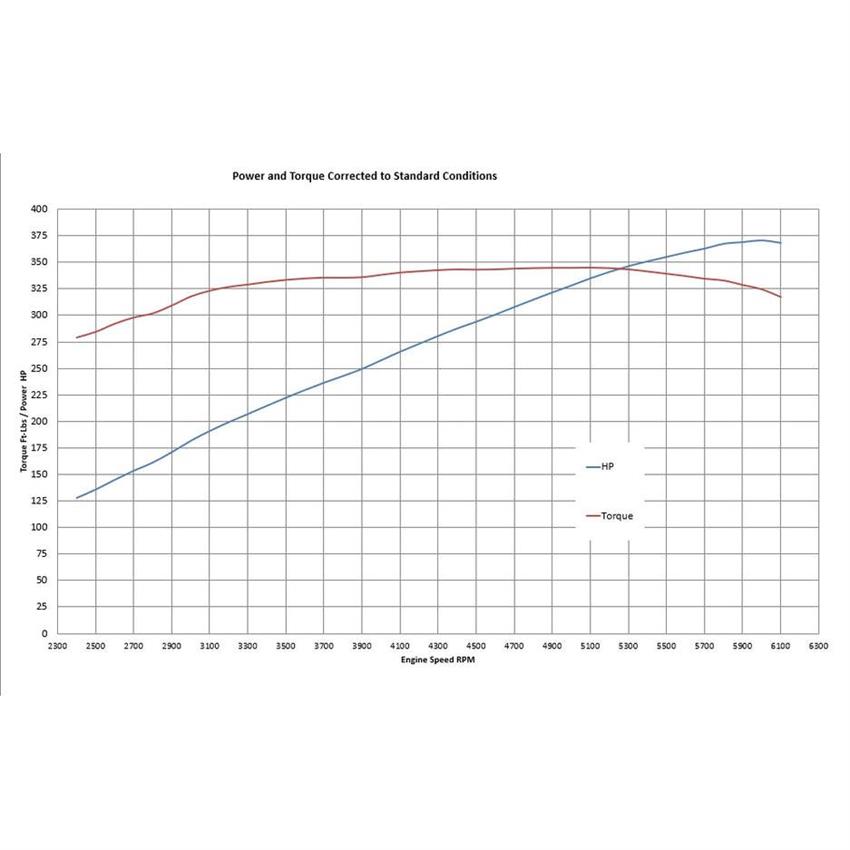

- HP And Torque: 361 HP / 334 FT LBS
- Compression Ratio: 9.4:1
- Aluminum Heads
- Hydraulic Roller Cam
- Cast Steel Crank
- Hypereutectic Pistons
BLOCK:
NEW BluePrint Cast Iron Block
4-Bolt Main
4.000″ Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
ROTATING ASSEMBLY:
3.000″ Stroke
OEM type 5.090″ connecting rods
Hypereutectic pistons
50oz External balance
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -HP9008
60cc chamber
2.02″ intake/1.60″ exhaust valves
190cc intake/60cc exhaust runners
CAM SPECS:
Roller Cam
.533 Intake / .544 Exhaust
215 Intake / 220 Exhaust Duration
@ .050 – 114 Degree Lobe Separation
IGNITION TIMING:
10-16 degrees initial, 32-34 total
ALSO INCLUDES:
Rear Sump Oil Pan
Valve Covers
Timing Cover
Distributor
Carburetor
Spark Plugs and Wires
Waterpump
Harmonic Balancer
WARRANTY:
30 month / 50,000 mile
| KEY SPECS | |
|---|---|
| MFG. Part # | BP302RCTCD |
| Brand | BluePrint Engines |
| Crate Engine Type | Deluxe Crate Engine |
| Engine Displacement | 302 cu. in. |
| Horsepower | 361 horsepower |
| Compression Ratio | 9.4:1 |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Cast Steel |
| Combustion Chamber Volume | 60cc |
| Camshaft Duration (.050 in) | 215° intake / 220° exhaust |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Valve Covers Included | Yes |
| Engine Balance | External |
| Cylinder Heads Included | Yes |
| Throttle Body Included | No |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
| Recommended Fuel | Premium |
