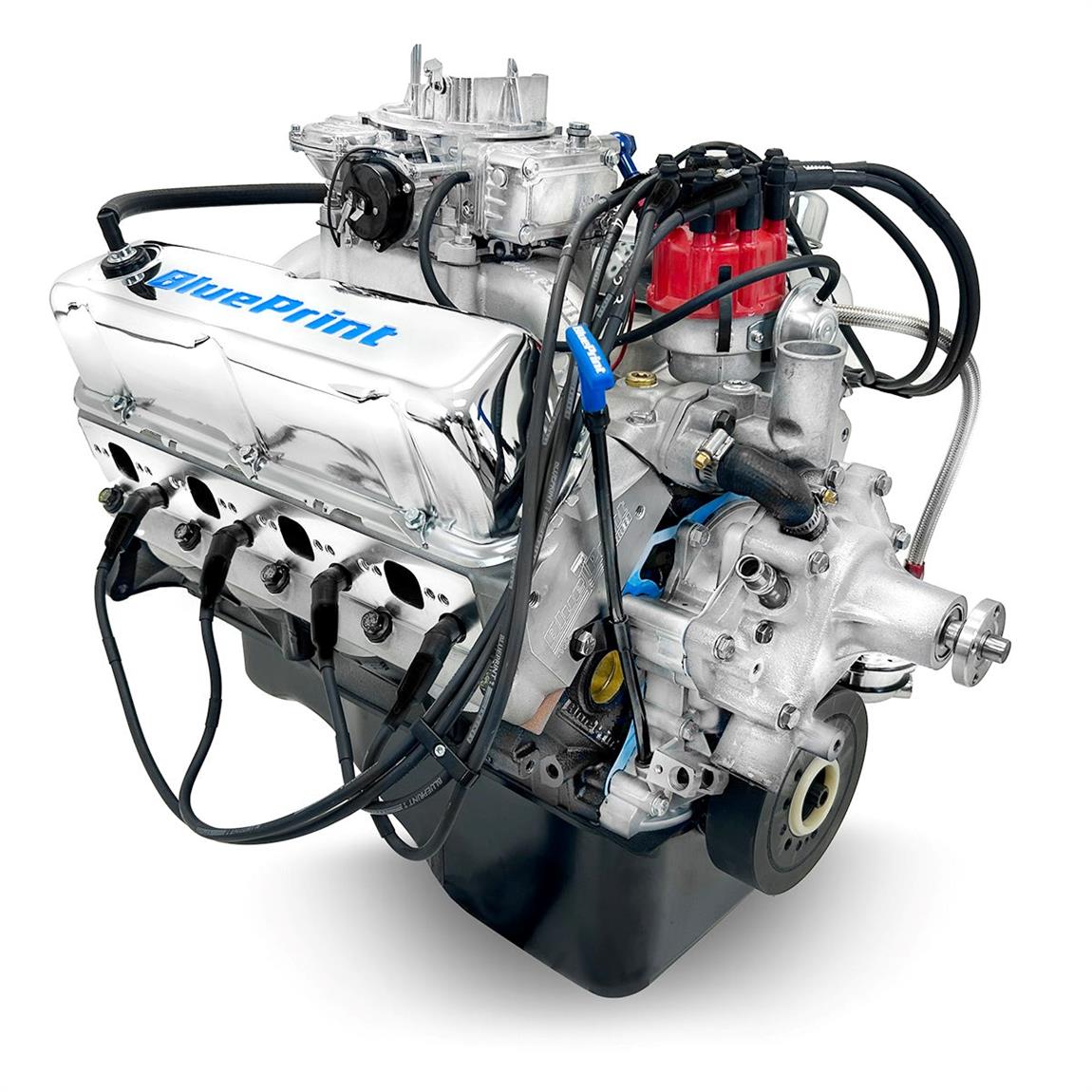

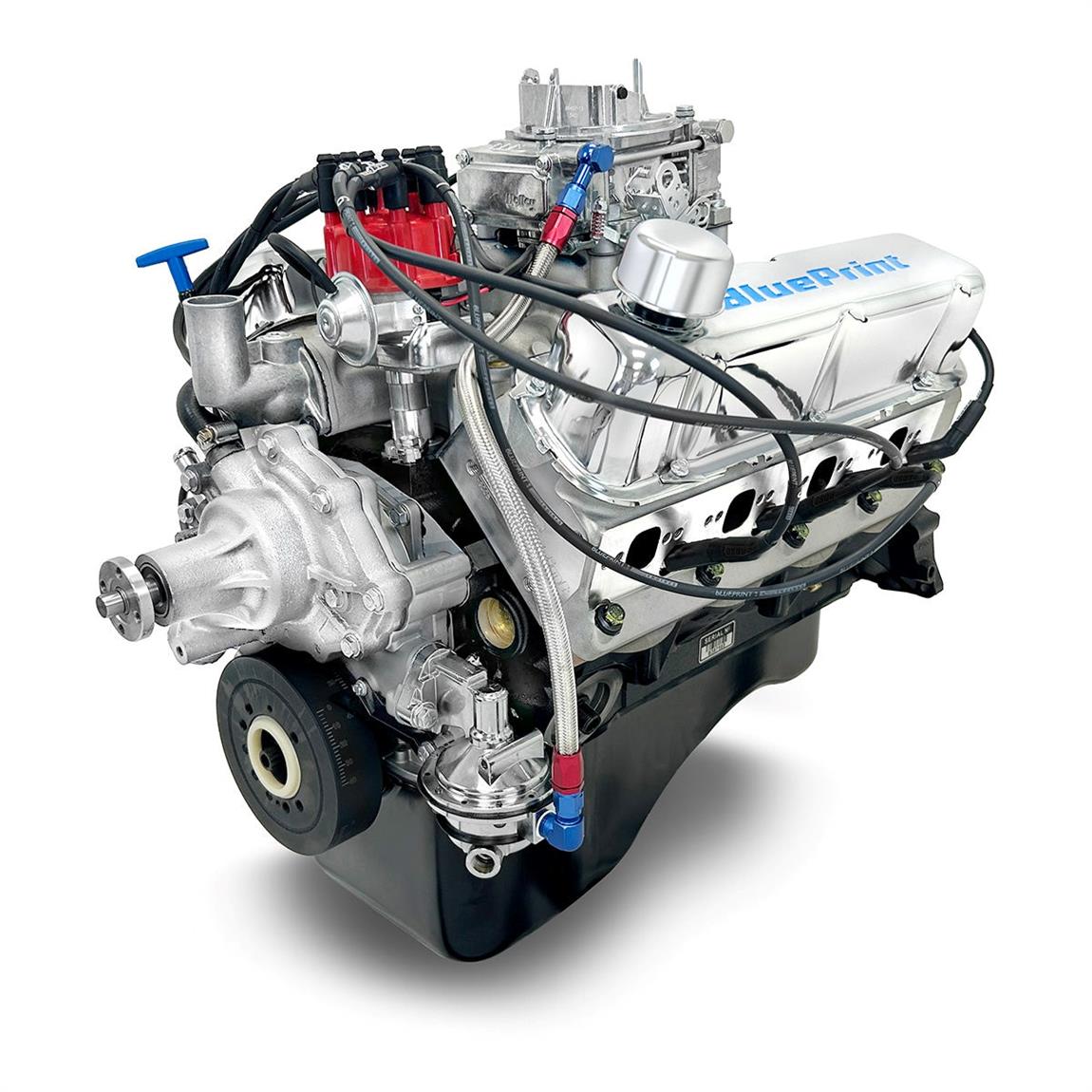

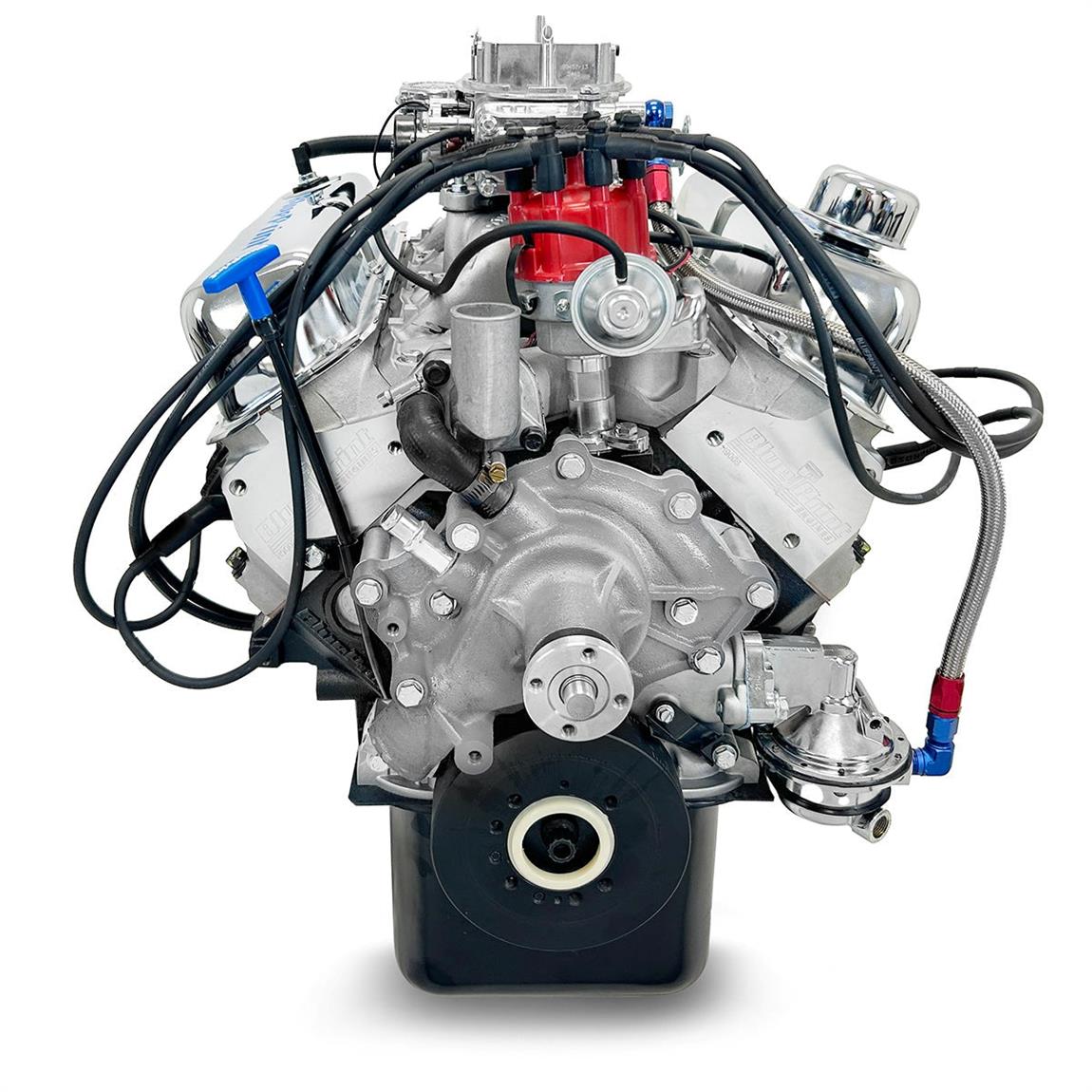

BluePrint BP3479CTCD 342 Stroker Crate Engine, Deluxe Dressed, FS

• BluePrint Engines Small Block Ford 342 Stroker Crate Engine
• Carbureted Deluxe Dressed Longblock with Aluminum Heads, Front Sump Pan and Roller Cam
• HP And Torque: 415 HP / 415 FT LBS
• Compression Ratio: 10.0:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Steel Crank
• Forged Pistons

BLOCK:

New standard bore stroker style block

Square and parallel decked

Align honed main bearing bore

Cylinders honed on computer controlled machine to within .0002 straightness and roundness

Cylinders are sonic tested for thickness

2-Bolt Main

1-Piece Rear Main Seal

Mech fuel pump provision: Yes

ROTATING ASSEMBLY:

New BluePrint Cast steel crankshaft

3.400″ Stroke

Forged I-beam 5.400″ connecting rods

Forged pistons

28oz External balance

CYLINDER HEADS:

BluePrint Aluminum Cylinder Heads -HP9008

60cc chamber

2.02″ intake/1.60″ exhaust valves

190cc intake/65cc exhaust runners

CAM SPECS:

Cam Type: Roller

.543 Intake .554 Exhaust

218 Intake / 226 Exhaust duration

@ .050 – 112 degree lobe separation

IGNITION TIMING:

34 Degrees Total at 3500 RPM

ALSO INCLUDES:

Carburetor

Intake

Standard Rotation Waterpump

Spark plugs and wires

Valve covers

Distributor

Harmonic Balancer

Painted front sump oil pan

Dyno test results shipped with engine

WARRANTY:

30 month / 50,000 mile
