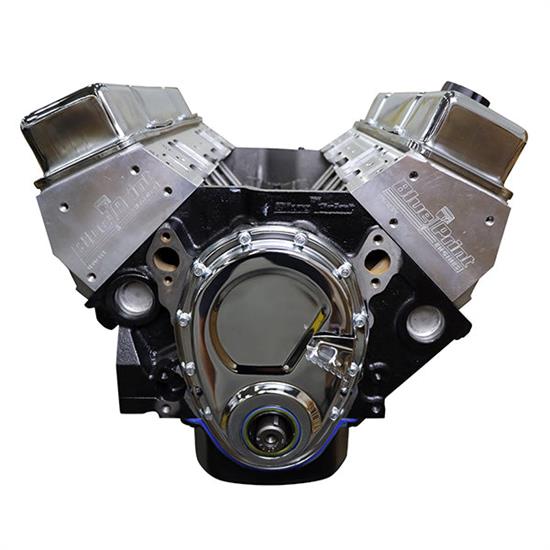

BluePrint BP3505CT 350 Crate Engine, Longblock, Alum Heads

BluePrint Engines 350CI Crate Engine

• HP And Torque: 390 HP / 410 FT LBS
• Compression ratio: 9.2:1
• Aluminum heads
• Hydraulic roller cam
• Cast iron crank
• Hypereutectic pistons

BLOCK:

• NEW BluePrint cast iron block
• Manufactured and Machined in the USA!
• 4-bolt main
• 4.000″ bore
• 1-Piece rear main seal
• Mech fuel pump provision
• Passenger Side Dipstick
• Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

• Cast Iron Crankshaft
• 3.480″ Stroke
• Forged 5.700″ connecting rods
• Hypereutectic pistons
• Internal Front/ External Rear engine balance

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads – H8002K
• 64cc chamber
• 2.02″ intake/1.60″ exhaust valves
• 195cc intake/75cc exhaust runners

CAM SPECS:

• Roller cam
• .495 Intake .502 Exhaust
• 220 Intake / 224 Exhaust duration
• @ .050 – 114 degree lobe separation

IGNITION TIMING:

• 32 Degrees Total at 3500 RPM

ALSO INCLUDES:

• Valve covers
• Oil pan
• Timing cover
• Dyno test results shipped with engine

WARRANTY:

• 30 month / 50,000 mile
