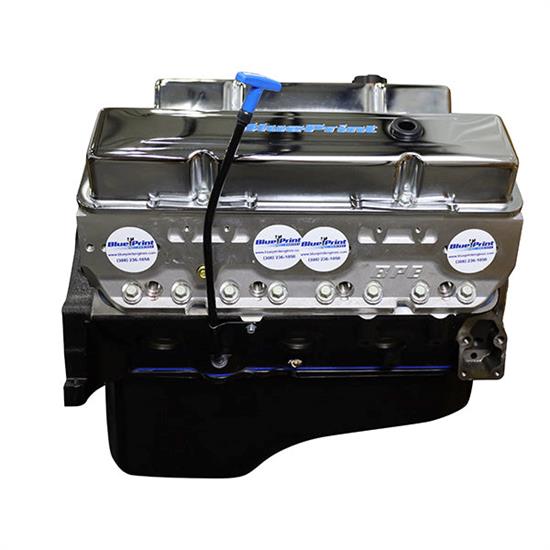

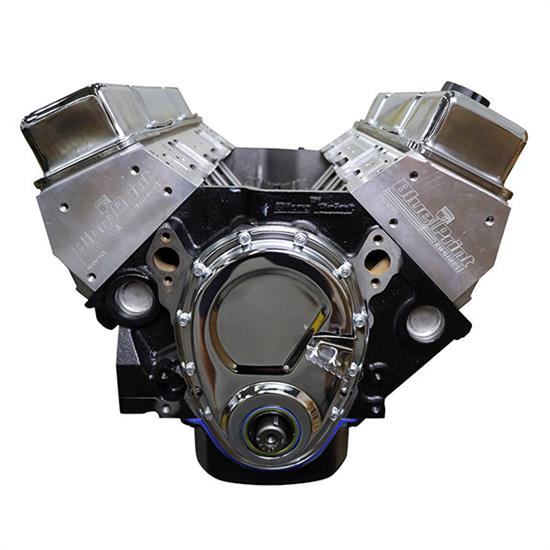

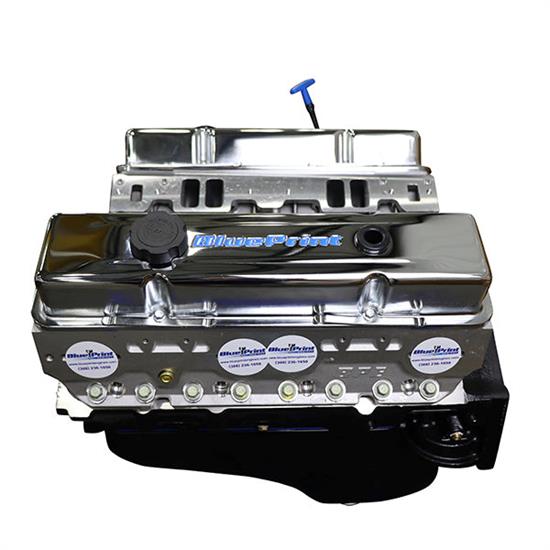

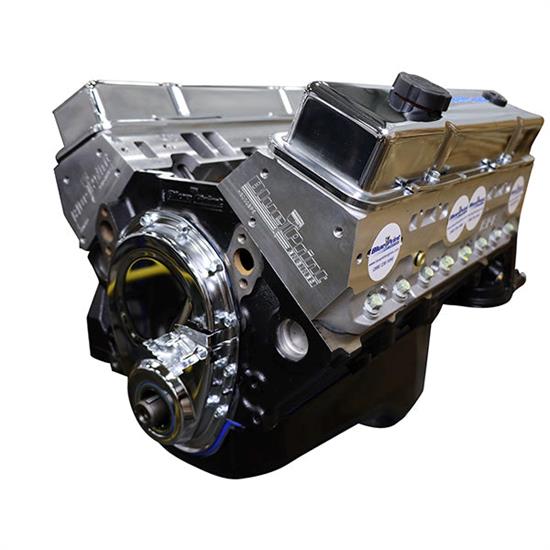

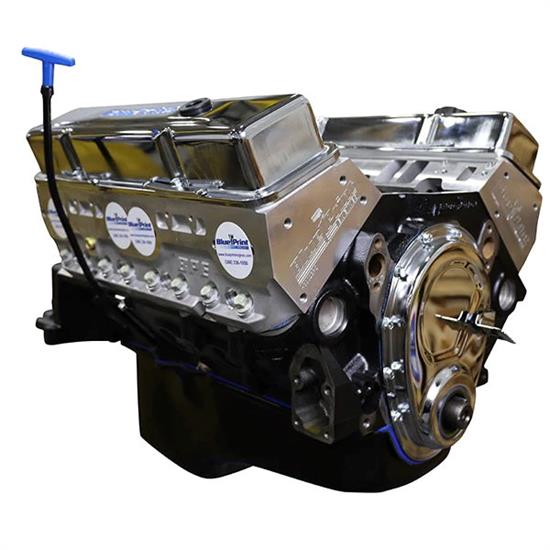

BluePrint BP3505CT S/B Chevy 350 Crate Engine, Longblock

• BluePrint Engines New Block Casting 350 CI Iron Block
• Dyno Tested Small Block GM Style
• HP And Torque: 390 HP / 410 Ft Lbs
• Compression Ratio: 9.2:1
• Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons
• Manufactured and Machined in the USA!

BLOCK:

NEW BluePrint Cast Iron Block

Manufactured and Machined in the USA!

4-Bolt Main

4.000″ Bore

1-Piece Rear Main Seal

Mech fuel pump provision: Yes

Passenger Side Dipstick

Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

Cast Iron Crankshaft

3.480″ Stroke

Forged 5.700″ connecting rods

Hypereutectic pistons

Internal Front/ External Rear engine balance

CYLINDER HEADS:

BluePrint Aluminum Cylinder Heads – H8002K

64cc chamber

2.02″ intake/1.60″ exhaust valves

195cc intake/75cc exhaust runners

CAM SPECS:

Cam Type: Roller

.495 Intake .502 Exhaust

220 Intake / 224 Exhaust duration

@ .050 – 114 degree lobe separation

IGNITION TIMING:

32 Degrees Total at 3500 RPM

ALSO INCLUDES:

Valve covers

Oil pan

Timing cover

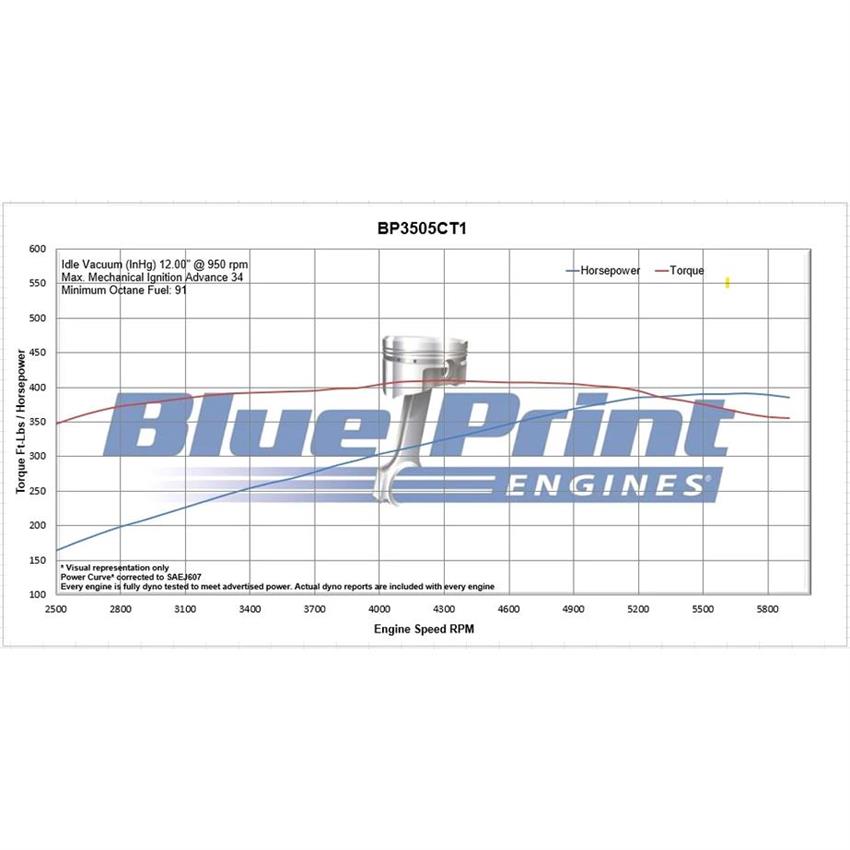

Dyno test results shipped with engine

WARRANTY:

30 month / 50,000 mile
