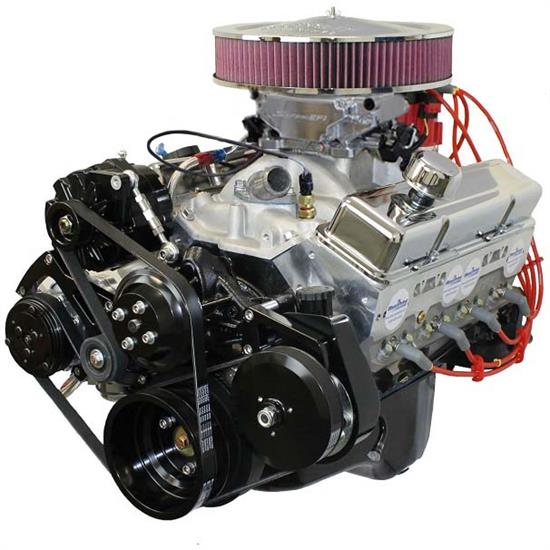

BluePrint BP3505CTFK 350 Crate Engine Longblock, Injection, Black

• New Casting Black Deluxe Dressed 350 Longblock Crate Engine Longblock, Fuel Injected
• HP And Torque: 390 HP / 410 FT LBS
• Compression Ratio: 9.2:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Iron Crankshaft
• Hypereutectic Pistons

BLOCK:

NEW BluePrint Cast Iron Block

Manufactured and Machined in the USA!

4-Bolt Main

4.000″ Bore

1-Piece Rear Main Seal

Mech fuel pump provision: Yes

Passenger Side Dipstick

Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

Cast Iron Crankshaft

3.480″ Stroke

Forged 5.700″ connecting rods

Hypereutectic pistons

Internal Front/ External Rear engine balance

CYLINDER HEADS:

BluePrint Aluminum Cylinder Heads – H8002K

64cc chamber

2.02″ intake/1.60″ exhaust valves

195cc intake/75cc exhaust runners

CAM SPECS:

Cam Type: Roller

.495 Intake .502 Exhaust

220 Intake / 224 Exhaust duration

@ .050 – 114 degree lobe separation

IGNITION TIMING:

32 Degrees Total at 3500 RPM

ALSO INCLUDES:

Valve covers

Oil pan

Harmonic Balancer

Spark plugs and Wires

Timing cover

Aluminum intake

Waterneck and Thermostat

HEI distributor

EFI system

Dyno test results shipped with engine

Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and

Power Steering Pump (Does not fit Corvette)

WARRANTY:

30 month / 50,000 mile
