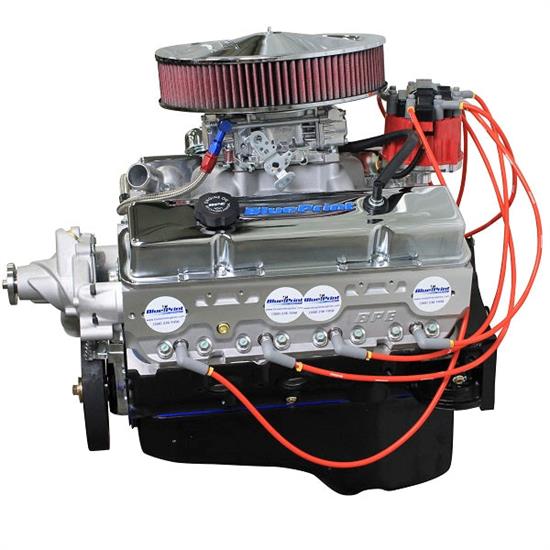

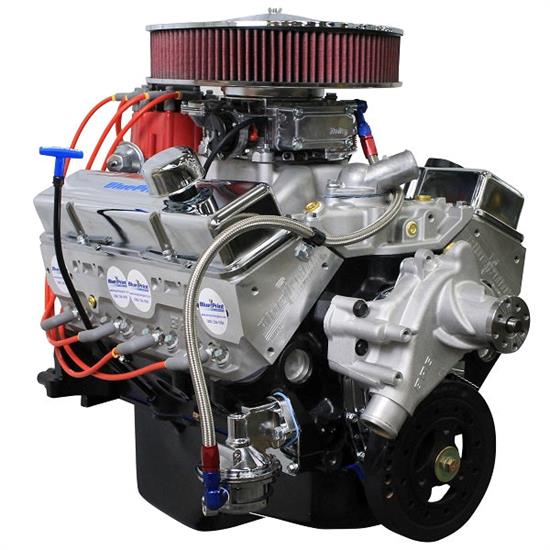

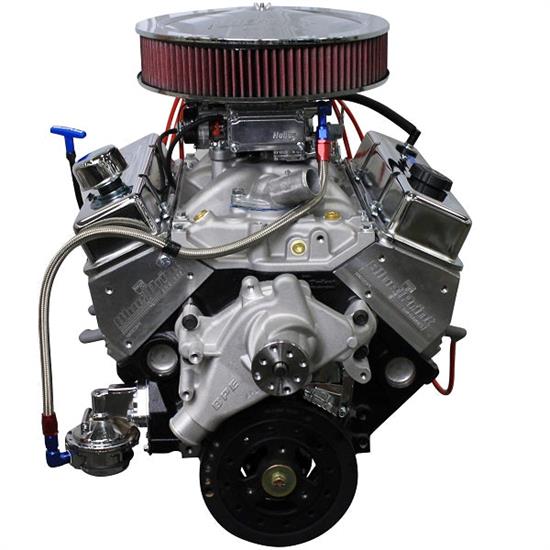

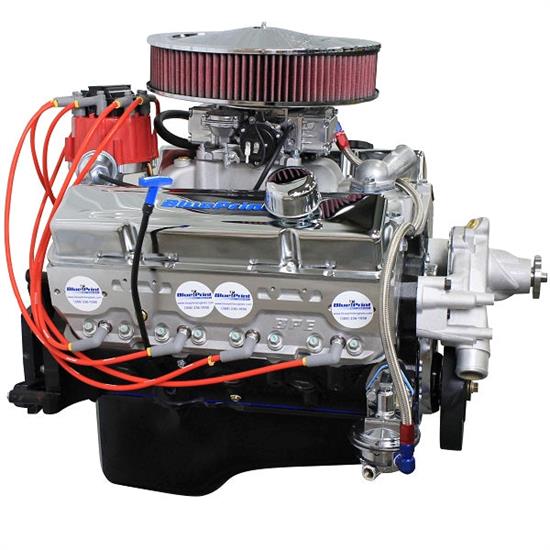

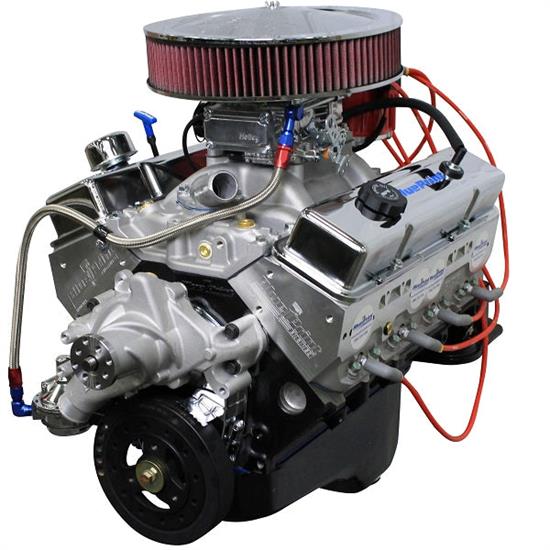

BluePrint BP350CTCD 350 Cruiser Crate Engine, Dlx. Dressed, Carb

• BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine
• Dyno Tested Small Block GM Style
• Carbureted Deluxe Dressed Longblock
• HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1
• Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons

BLOCK:

NEW BluePrint Cast Iron Block

Manufactured and Machined in the USA!

4-Bolt Main

4.000″ Bore

1-Piece Rear Main Seal

Mech fuel pump provision: Yes

Passenger Side Dipstick

Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

Cast Iron Crankshaft

3.480″ Stroke

Forged 5.700″ connecting rods

Hypereutectic pistons

Internal Front/ External Rear engine balance

CYLINDER HEADS:

BluePrint Aluminum Cylinder Heads – H8002K

64cc chamber

2.02″ intake/1.60″ exhaust valves

195cc intake/75cc exhaust runners

CAM SPECS:

Cam Type: Roller

.477 Intake .471 Exhaust

202 Intake / 212 Exhaust duration

@ .050 – 115 degree lobe separation

IGNITION TIMING:

32 Degrees Total at 3500 RPM

ALSO INCLUDES:

Valve covers

Harmonic balancer

Spark plugs

Spark plug wires

Standard Rotation Long Style Water Pump

Waterneck and Thermostat

Fuel Pump

Oil pan

Timing cover

Aluminum intake

HEI distributor

600 cfm carburetor

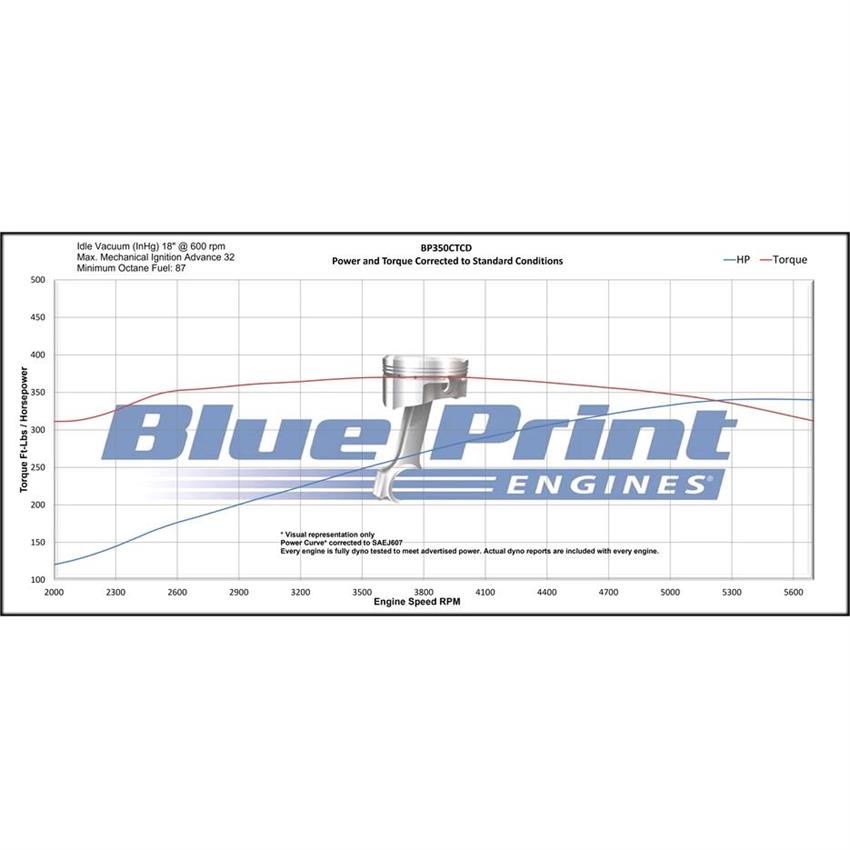

Dyno test results shipped with engine

WARRANTY:

30 month / 50,000 mile

NOTES:

This engine is an excellent cruiser and daily driver engine. This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
