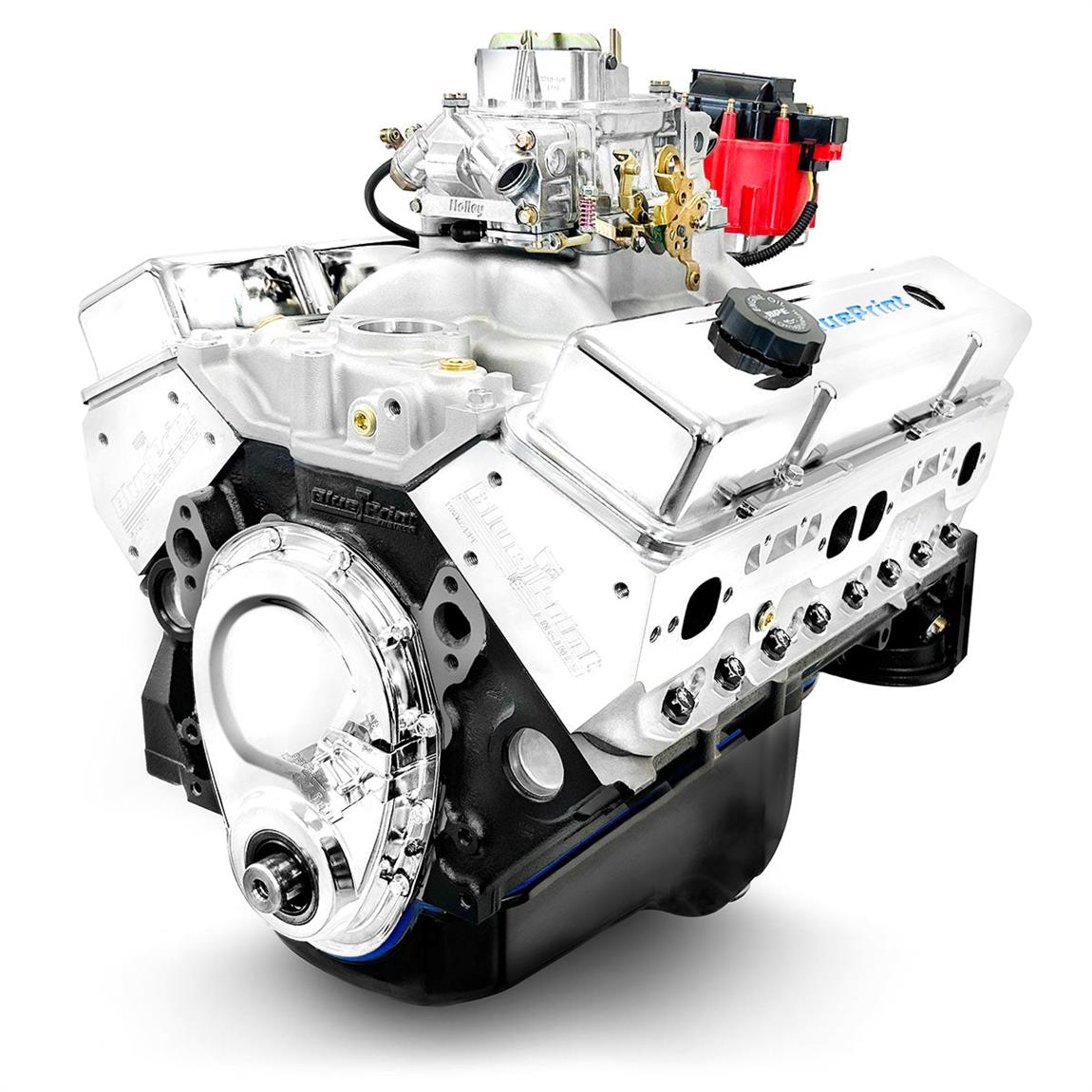

BluePrint BP38318CTC1 S/B Chevy 383 Dressed Crate Engine
BluePrint Engines builds high-performance crate engine to replace your tired old factory engine! These crate engines are high-performance drop-in engines offering substantially more horsepower than the factory original. Crate engines or crate motors from BluePrint Engines offer a custom builder, hot rodder, or kit car builder an engine that is ready to drop in the vehicle. BluePrint crate engines come in several levels of dress – from a shortblock all the way to complete with all the components that will be needed to start and run the engine very quickly. No extensive cleaning or installation of parts is required. In addition, BluePrint crate engines are dyno-tested and are shipped with a documentation of their high-performance power curve.
DESCRIPTION
- 436 HP / 443 FT LBS
- 10.0:1
- BluePrint Performance Aluminum Heads (Part# H8002K)
- Hypereutectic Pistons
- Roller Cam
- Cast Steel Crank
BLOCK:
- NEW BluePrint Cast Iron Block
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.000″ Bore
- 1-Piece Rear Main Seal
- Mech fuel pump provision: Yes
- Passenger Side Dipstick
- Drilled and tapped for clutch linkage
ROTATING ASSEMBLY:
- New BluePrint Cast steel crankshaft
- 3.750″ Stroke
- OEM type 5.700″ connecting rods w/ 150,000 psi bolts
- Hypereutectic pistons
- External Front/ External Rear
CYLINDER HEADS:
- BluePrint Performance Aluminum Heads (Part# H8002K)
- 64cc Chamber
- 2.02 Swirl Polished Intake Valves
- 1.60 Swirl Polished Exhaust Valves
- Hardened Retainers and Springs
CAM SPECS:
- Cam Type: Roller
- .544 Intake .555 Exhaust
- 230 Intake / 236 Exhaust duration
- @ .050, 110 ° lobe separation angle
IGNITION TIMING:
- Initial timing – 10-16° and Total timing 32-34° at 3500 RPM
ALSO INCLUDES:
- Dual Plane, Satin Aluminum Intake Manifold
- Holley 750cfm Carburetor – Manual Choke HOLLEY 3310
- New Chrome Timing Cover
- Distributor
- Melling High Volume Oil Pump
- New Chrome Valve Covers
- Painted Oil Pan
- Passenger Side Dipstick

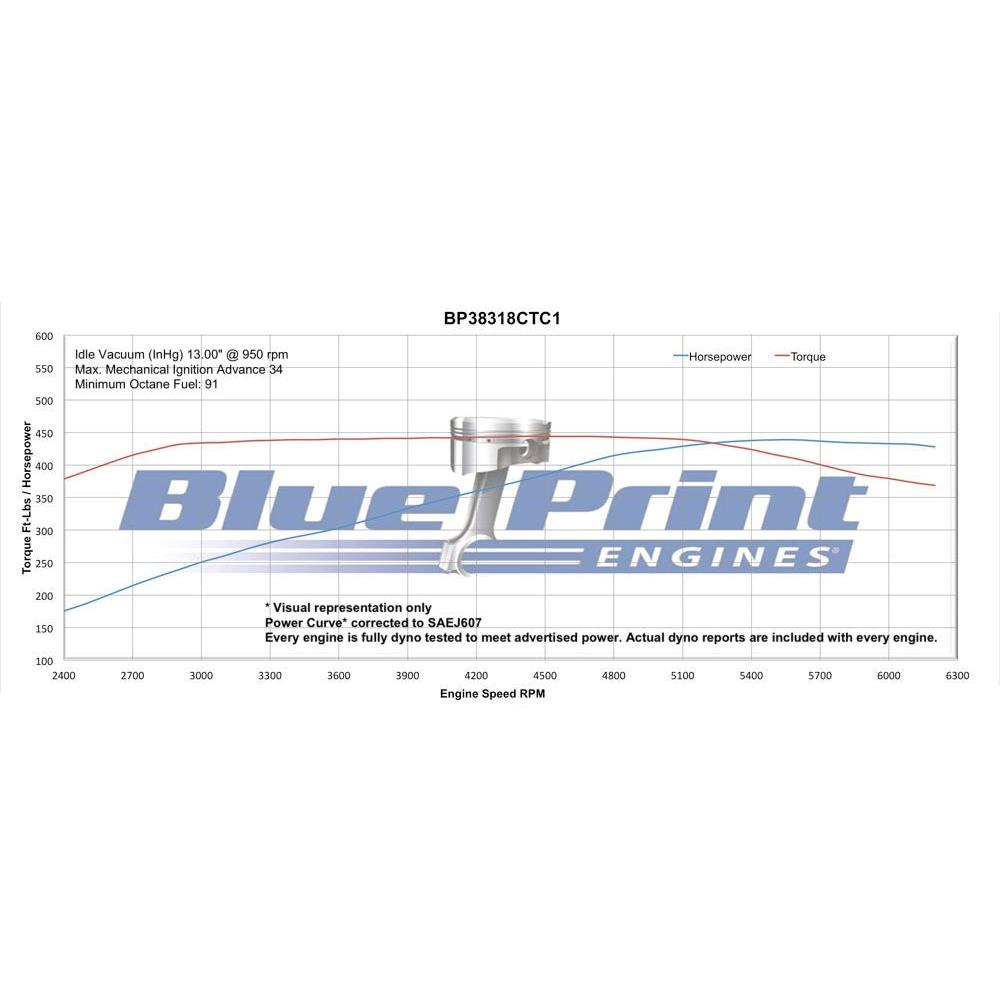

- Dyno test results shipped with engine
WARRANTY:
- 30 month / 50,000 mile
| KEY SPECS | |
|---|---|
| MFG. Part # | BP38318CTC1 |
| Brand | BluePrint Engines |
| Crate Engine Type | Deluxe Crate Engine |
| Engine Displacement | 383 cu. in. |
| Horsepower | 436 horsepower |
| Compression Ratio | 10.0:1 |
| Torque | 443 ft./lbs. |
| Camshaft Type | Hydraulic Roller Tappet |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Cast Steel |
| Spark Plug Style | Straight |
| Combustion Chamber Volume | 64cc |
| Camshaft Duration (.050 in) | 230° intake / 236° exhaust |
| Camshaft Lift (in) | .544 intake / .555 exhaust |
| Bore x Stroke (in) | 4.000″ x 3.750″ |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Connecting Rod Material | OEM Style |
| Valve Covers Included | Yes |
| Engine Balance | External |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | No |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
| Recommended Fuel | 91 Octane |
