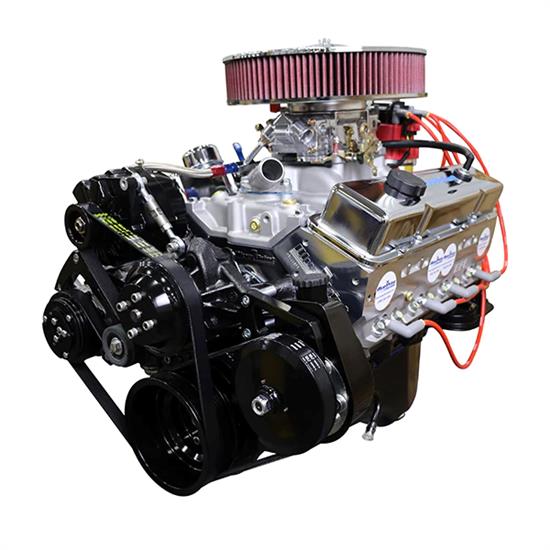

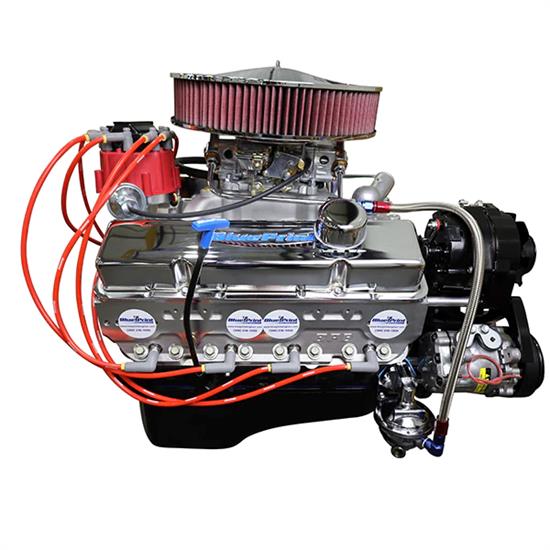

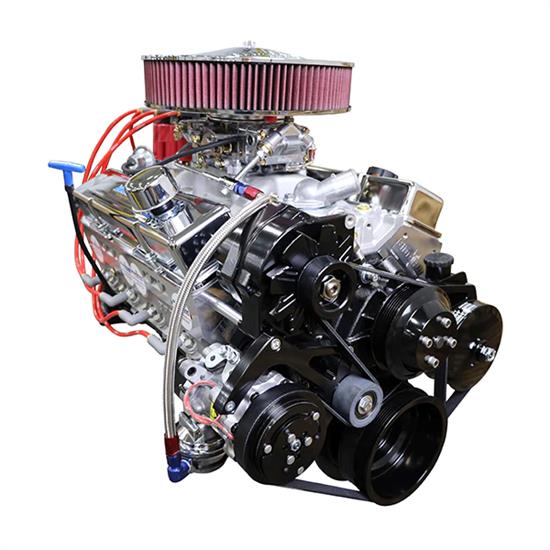

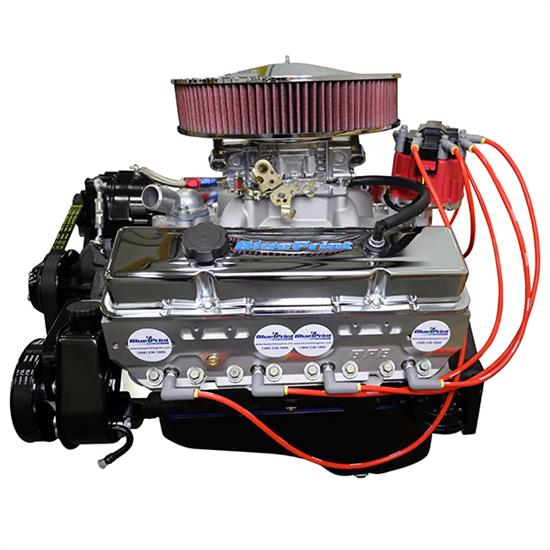

BluePrint BP38318CTC1DK 383 Crate Engine, Deluxe Dressed, Carb

• BluePrint Engines 383 CI Stroker Crate Engine
• Dyno Tested Small Block GM Style
• HP and torque : 436 HP / 443 FT LBS, Compression Ratio: 10.0:1
• Deluxe Dressed w/ Pulleys Longblock with Carburetor
• With Aluminum Heads, Hydraulic Roller Cam, Cast Steel Crank, and Hypereutectic Pistons

BLOCK:

NEW BluePrint Cast Iron Block

Manufactured and Machined in the USA!

4-Bolt Main

4.000″ Bore

1-Piece Rear Main Seal

Mech fuel pump provision: Yes

Passenger Side Dipstick

Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

New BluePrint Cast steel crankshaft

3.750″ Stroke

OEM type 5.700″ connecting rods w/ 150,000 psi bolts

Hypereutectic pistons

External Front/ External Rear

CYLINDER HEADS:

BluePrint Aluminum Cylinder Heads – H8002K

64cc chamber

2.02″ intake/1.60″ exhaust valves

195cc intake/75cc exhaust runners

CAM SPECS:

Cam Type: Roller

.544 Intake .555 Exhaust

230 Intake / 236 Exhaust duration

@ .050, 110 ° lobe separation angle

IGNITION TIMING:

34 Degrees Total at 3500 RPM

ALSO INCLUDES:

Valve covers

Harmonic balancer

Spark plugs

Spark plug wires

Long Style Water Pump

Fuel Pump

Oil pan

Timing cover

Aluminum Intake Manifold

HEI distributor

750cfm Carburetor

Dyno tested and shipped with results

Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump (Does not fit Corvette)

WARRANTY:

30 month / 50,000 mile

NOTES:

Not for use in pollution controlled vehicles.

This engine features a true 4 inch bore, which mathematically yields 377 CID with a 3.75 inch stroke

.
