Description

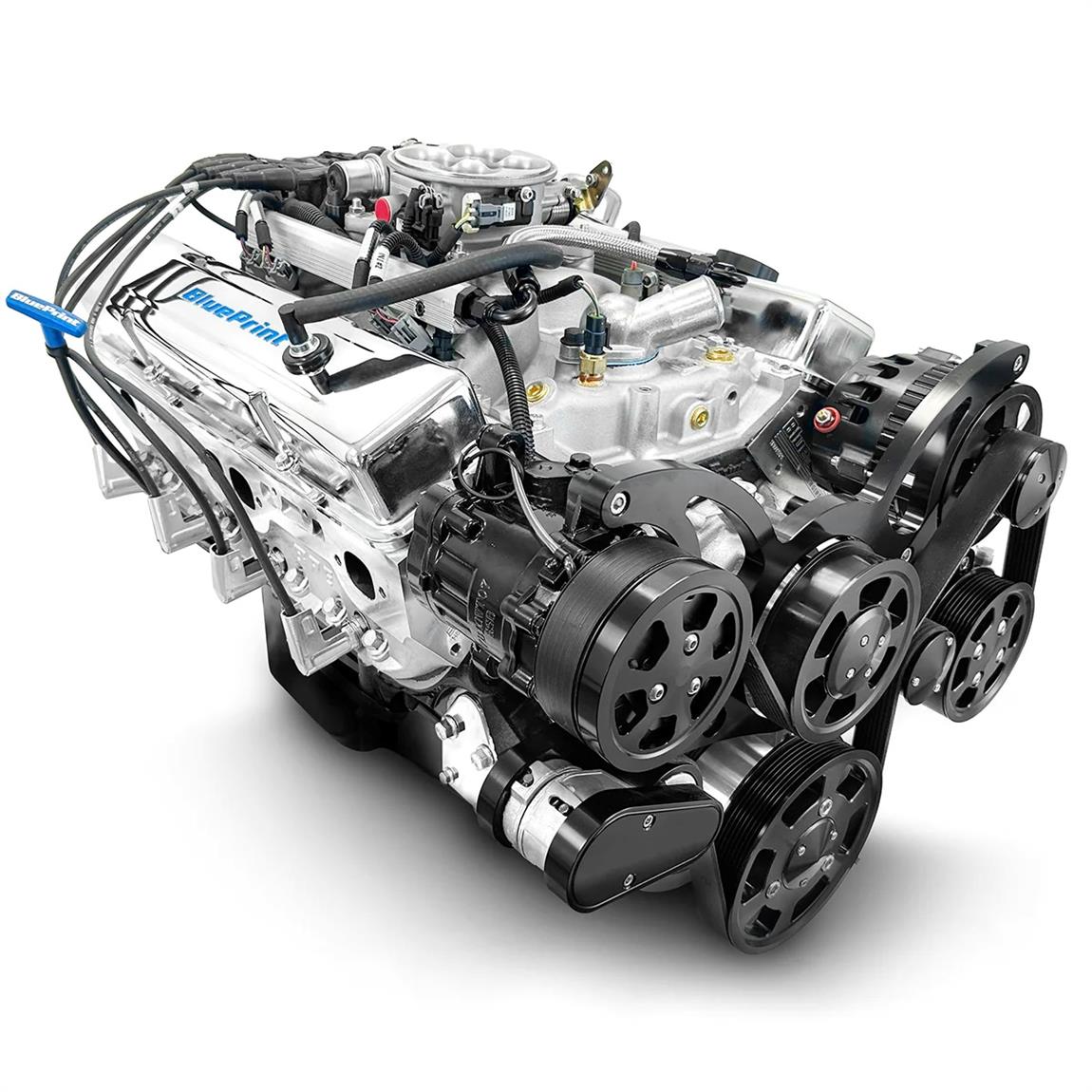

BluePrint BP38318MPFIKB S/B Chevy 383 Dressed Crate Engine
The BluePrint 383 Small Block Chevy compatible performance crate engines are dyno tested at our factory with guaranteed power levels of 436 horsepower and 443 ft. lbs. of torque. The BluePrint designed, multi-port fuel injection system, complete with ECU and full Wiring Harness, has had extensive calibration and development work in creating this specifically tuned and optimized engine that goes well beyond the performance of self-learn EFI systems on the market today. This BluePrint ECU is designed for hassle-free start up and operation. The ECU controls ignition timing and fuel and installs with 3 simple wired connections (Main Battery, Switched 12V Ignition Wire and Fuel Pump).
DESCRIPTION:
Engine manufactured and machined in the USA!

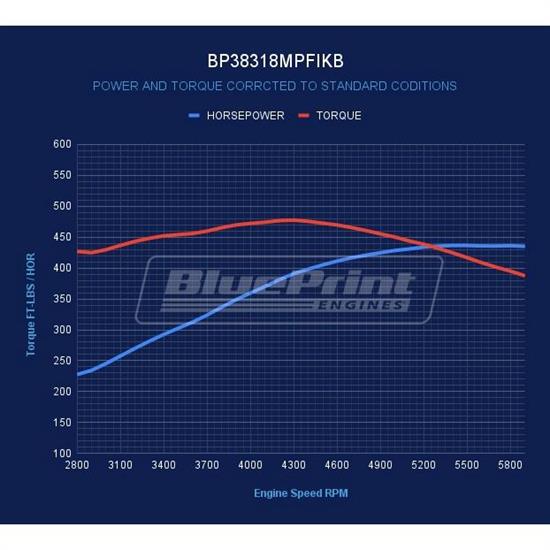

Horsepower & Torque: 436 Horsepower / 443 FT LBS
Cylinder Heads: BluePrint Performance Aluminum Heads (Part# H8002K)
Compression Ratio: 10.0:1
BLOCK:
BluePrint Engines High Strength Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.000″ Bore
1-Piece Rear Main Seal
Drilled and Tapped for Clutch Linkage
ROTATING ASSEMBLY:
New BluePrint Cast Steel Crankshaft
3.750″ Stroke
5.700″ Connecting Rods
Hypereutectic Pistons
Externally Balanced Front and Rear
CYLINDER HEADS:
BluePrint Performance Aluminum Heads (Part# H8002K)
64cc Chamber
2.020″ Intake Valves / 1.600″ Exhaust Valves
CAM SPECS:
Cam Type: Hydraulic Roller
.544 Intake / .555 Exhaust Lift
230 Intake / 236 Exhaust Duration
@ .050-110 Degree Lobe Separation
IGNITION TIMING:
Initial Timing-Computer Controlled by BluePrint ECU
ALSO INCLUDES:
Polished Chrome BluePrint Air Cleaner
BluePrint Multi-Port Fuel Injection and Self-Learning Electronic Control Unit (ECU)
Distributor
Harmonic Balancer
Single Plane Machined Aluminum Intake Manifold
Oil Pan
Timing Cover
Polished Chrome Valve Covers
Satin Aluminum Water Pump
Spark Plugs and Wires
Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
| KEY SPECS | |
|---|---|
| MFG. Part # | BP38318MPFIKB |
| Brand | BluePrint Engines |
| Crate Engine Type | Deluxe Crate Engine |
| Engine Displacement | 6.3 liters |
| Horsepower | 436 horsepower |
| Compression Ratio | 10.0:1 |
| Torque | 443 ft./lbs. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Cast Steel |
| Bore x Stroke (in) | 4.000″ x 3.750″ |
| Carburetor Included | No |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Valve Covers Included | Yes |
| Engine Balance | External |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | Yes |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | Yes |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | Yes |
| Wiring Harness Included | Yes |
| Recommended Fuel | 91 Octane |
