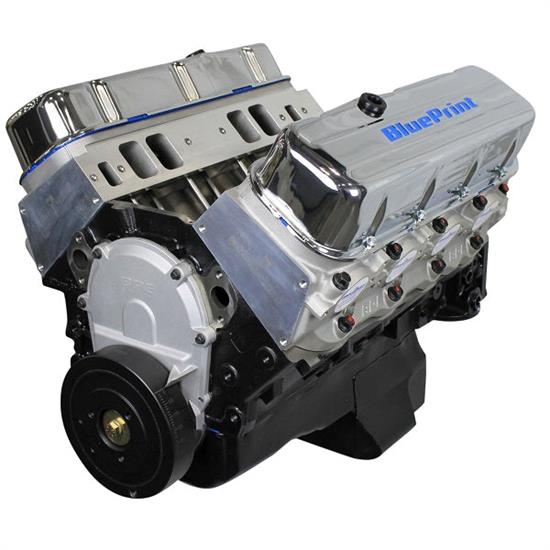

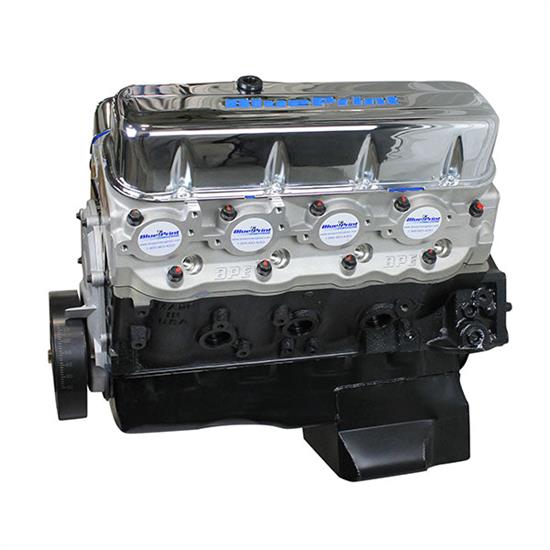

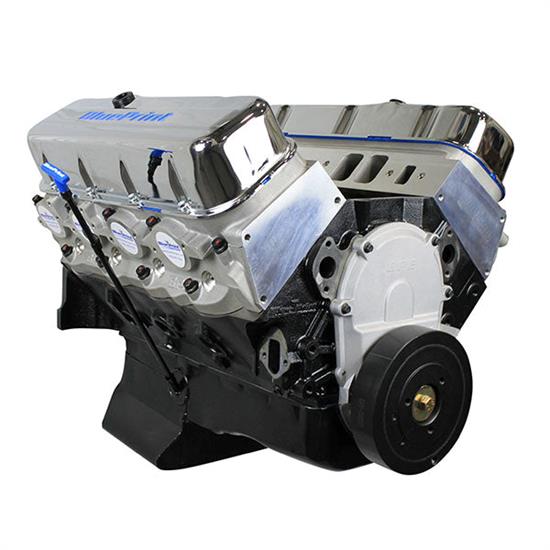

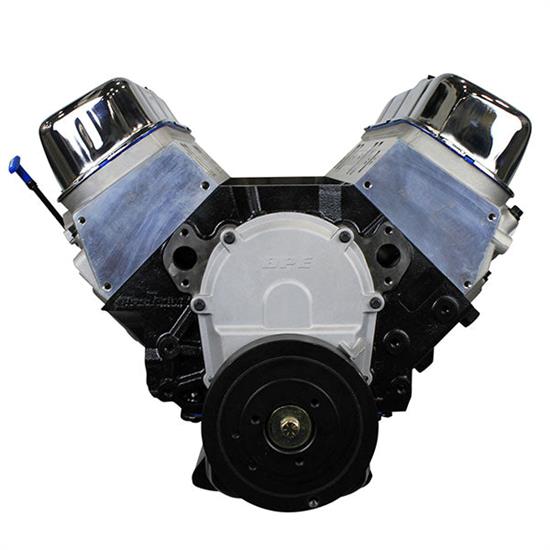

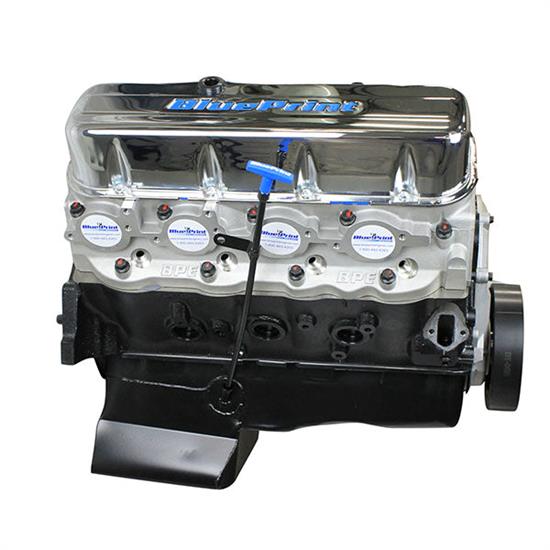

BluePrint BP454CT B/B Chevy 454 Cruiser Crate Engine, Longblock

BluePrint Engines Big Block Chevy 454 Cruiser Crate Engine Longblock

• HP And Torque: 460 HP / 479 FT LBS
• Compression ratio: 9.85:1
• Aluminum heads
• Hydraulic roller cam
• Forged crank
• Hypereutectic pistons

BLOCK:

• NEW BluePrint Cast Iron Block, 454 BBC
• Manufactured and Machined in the USA!
• 4-Bolt Main
• 4.000″ Stroke, Bored .060″ over
• 1-Piece Rear Main Seal
• Mech fuel pump provision: Yes
• Standard Deck

ROTATING ASSEMBLY:

• New BluePrint Forged Crankshaft
• 4.000″ Stroke 4.250″ Bore
• OEM type 6.135″ connecting rods w/ 150,000 psi bolts
• Hypereutectic pistons
• External

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads – PS8013
• 119cc chamber
• 2.30″ intake/1.88″ exhaust valves
• 316cc intake/124cc exhaust runners
• Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting
• Must verify header/exhaust clearance

CAM SPECS:

• Roller cam
• .501 Intake .510 Exhaust
• 216 Intake / 228 Exhaust duration
• @ .050 – 112 degree lobe separation

IGNITION TIMING:

• 10-16° and total timing 32-36° at 3500 rpm

ALSO INCLUDES:

• Valve covers, oil pan and timing cover

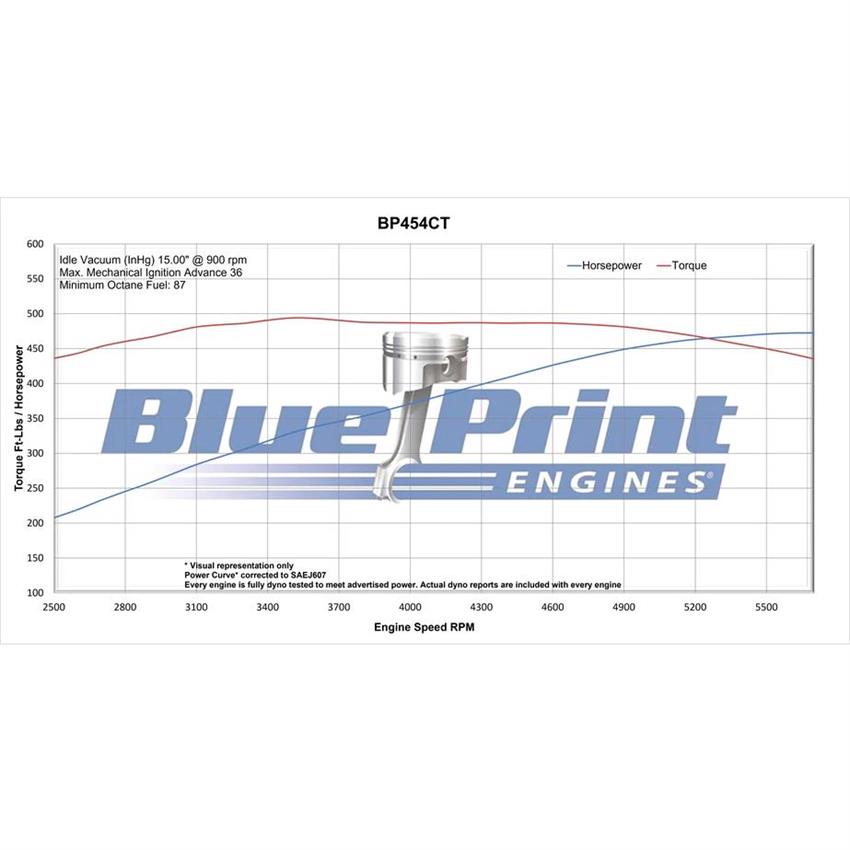

• Dyno test results shipped with engine

WARRANTY:

• 30 month / 50,000 mile

This engine is an excellent cruiser and daily driver engine. This engine makes up to 15 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel. Features External 42.5 oz. imbalance. Recommend GM flywheel 14096987, or TCI flexplate 399973.
