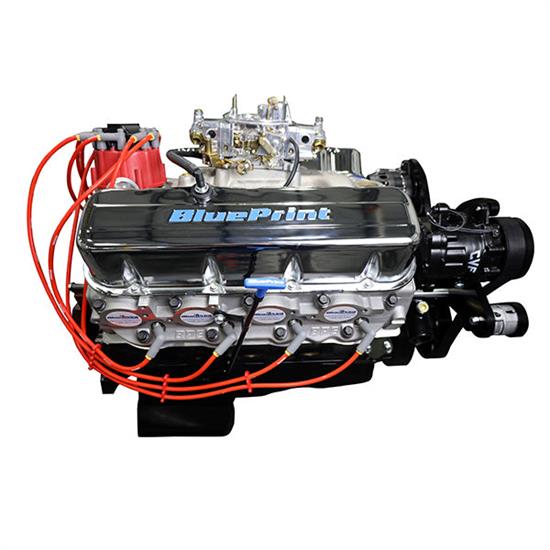

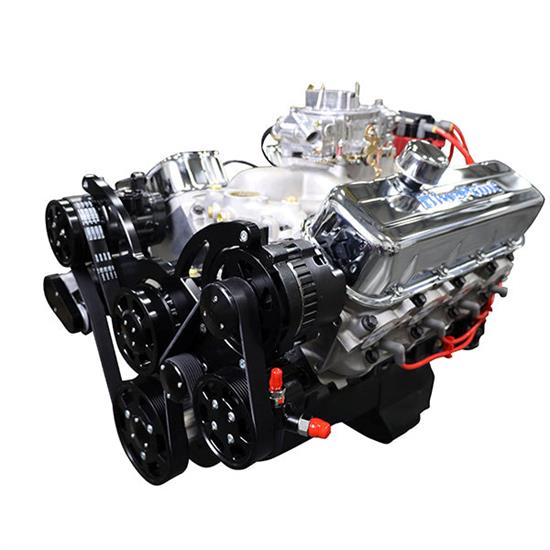

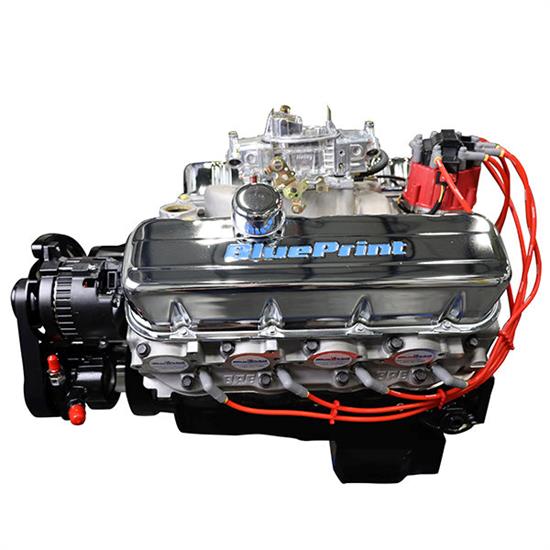

BluePrint BP454CTCKB 454 Cruiser Crate Engine, Dressed, Black

• BluePrint Engines Big Block Chevy 454 Cruiser Crate Engine
• Dressed Longblock With Carburetor and Black Front Accessory Drive System
• HP And Torque: 460 HP / 479 FT LBS
• Compression Ratio: 9.85:1
• Aluminum Heads
• Hydraulic Roller Cam
• Forged Crank
• Hypereutectic Pistons

BLOCK:

NEW BluePrint Cast Iron Block

Manufactured and Machined in the USA!

4-Bolt Main

4.250″ Bore

1-Piece Rear Main Seal

Mech fuel pump provision: Yes

Standard Deck

ROTATING ASSEMBLY:

New BluePrint Forged Crankshaft

4.000″ Stroke 4.250″ Bore

6.135″ connecting rods w/ 150,000 psi bolts

Hypereutectic pistons

External

CYLINDER HEADS:

BluePrint Aluminum Cylinder Heads – PS8013

119cc chamber

2.30″ intake/1.88″ exhaust valves

316cc intake/124cc exhaust runners

Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.

Must verify header/exhaust clearance

CAM SPECS:

Cam Type: Roller

.501 Intake .510 Exhaust

216 Intake / 228 Exhaust duration

@ .050 – 112 degree lobe separation

IGNITION TIMING:

Initial timing – 10-16° and Total timing 32-34°
ALSO INCLUDES:
Intake Manifold single plane, satin aluminum

850 CFM Carburetor

Valve covers, oil pan and timing cover

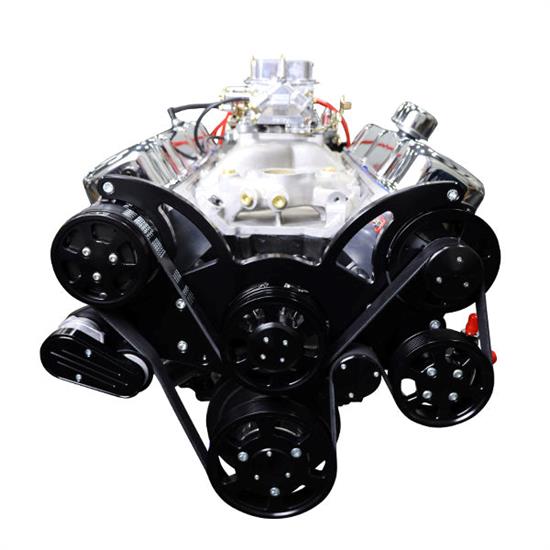

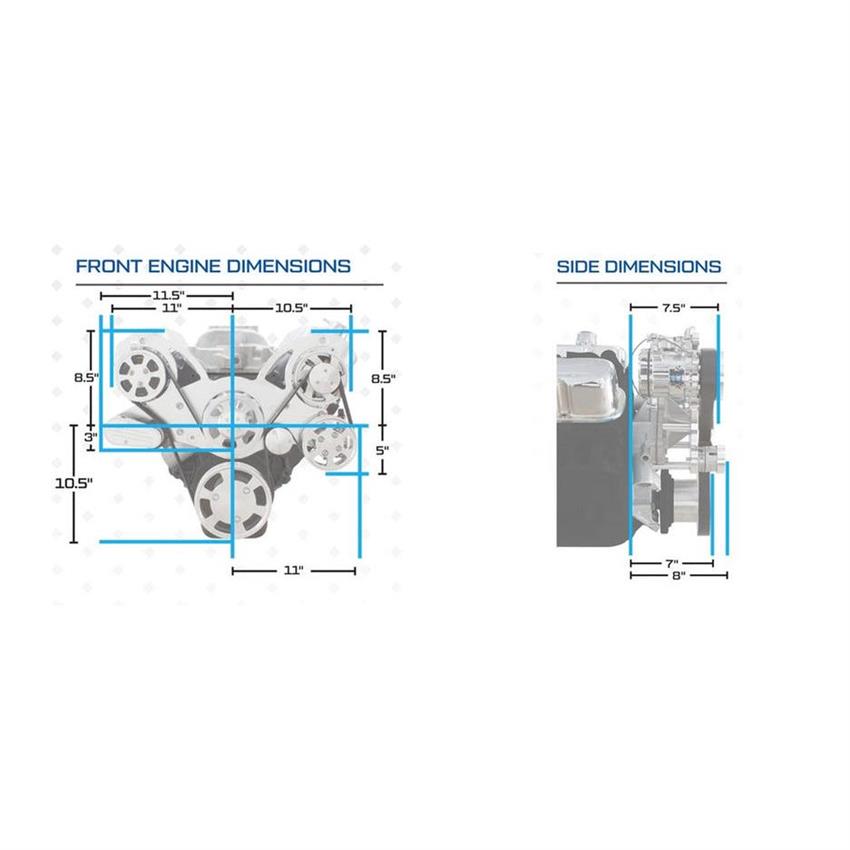

Installed black complete front accessory drive system with A/C, P/S, WP, all belts and pulleys.

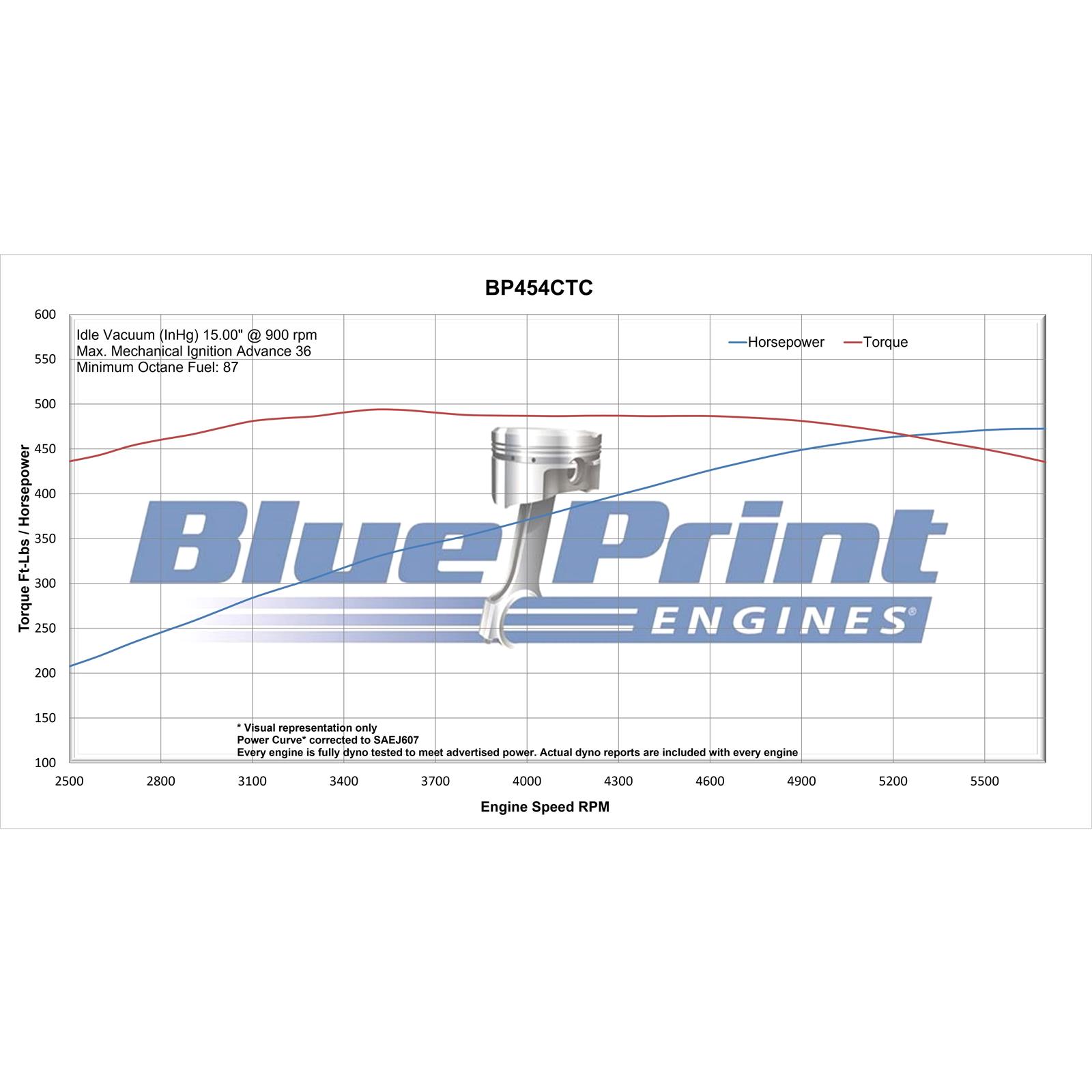

Dyno test results shipped with engine

WARRANTY:
30 month / 50,000 mile
