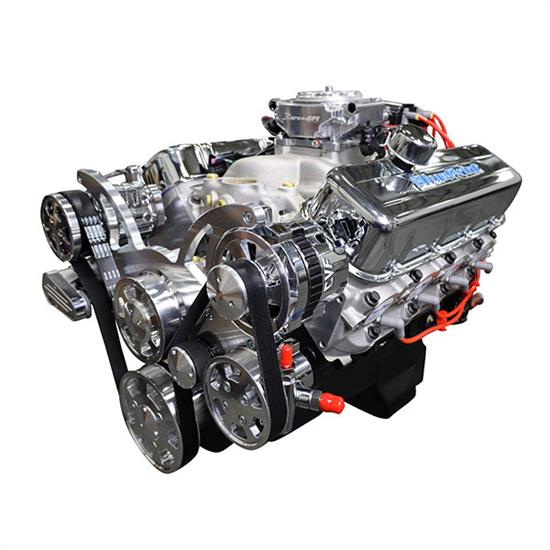

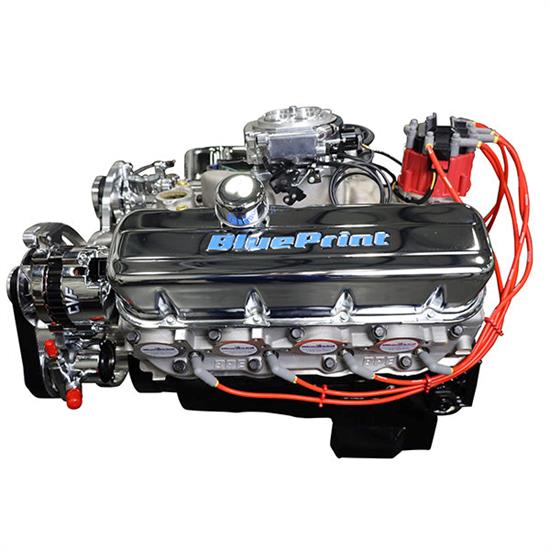

BluePrint BP454CTFK 454 Cruiser Crate Engine, Injection, Polished

• BluePrint Engines Big Block Chevy 454 Cruiser Crate Engine
• Dressed Longblock With Fuel Injection
• HP And Torque: 460 HP / 479 FT LBS
• Polished Complete Front Accessory Drive System With A/C, Power Steering, Water Pump, Belts and Pulleys Installed
• Compression Ratio: 9.85:1
• Aluminum Heads
• Hydraulic Roller Cam
• Forged Crank
• Hypereutectic Pistons

BLOCK:

NEW BluePrint Cast Iron Block, 454 BBC

Manufactured and Machined in the USA!

4-Bolt Main

4.000″ Stroke, 4.250″ Bore

1-Piece Rear Main Seal

Mech fuel pump provision: Yes

Standard Deck

ROTATING ASSEMBLY:

New BluePrint Forged Crankshaft

4.000″ Stroke 4.250″ Bore

OEM type 6.135″ connecting rods w/ 150,000 psi bolts

Hypereutectic pistons

External

CYLINDER HEADS:

BluePrint Aluminum Cylinder Heads – PS8013

119cc chamber

2.30″ intake/1.88″ exhaust valves

316cc intake/124cc exhaust runners

Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.

Must verify header/exhaust clearance

CAM SPECS:

Cam Type: Roller

.501 Intake .510 Exhaust

216 Intake / 228 Exhaust duration

@ .050 – 112 degree lobe separation

IGNITION TIMING:

Initial timing – 10-16° and Total timing 32-34°

ALSO INCLUDES:

Intake Manifold single plane, satin aluminum

Sniper EFI System

Pro Billet Distributor

Harmonic balancer

Valve covers, oil pan and timing cover

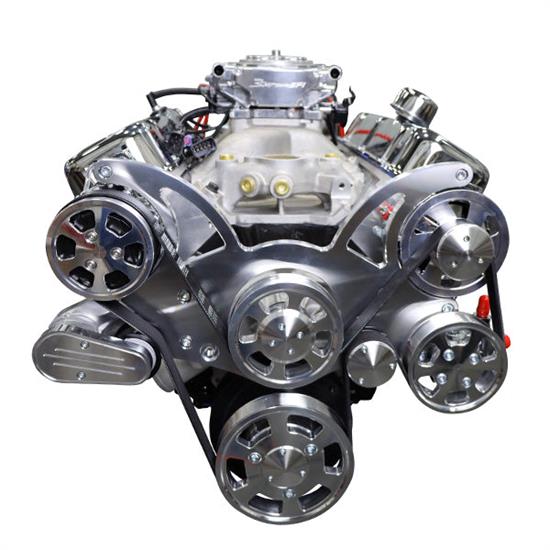

Installed polished complete front accessory drive system with A/C, P/S, WP, all belts and pulleys.

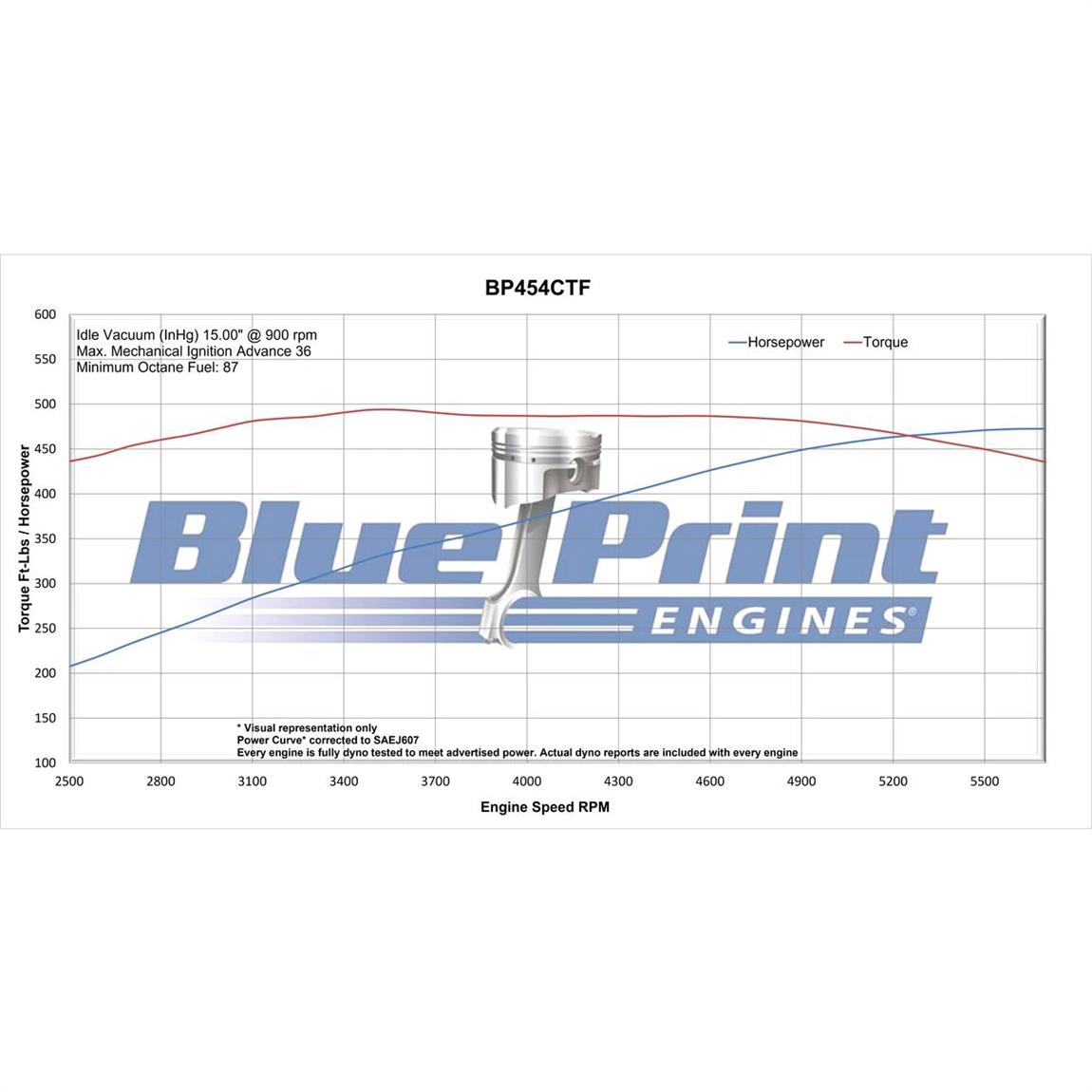

Dyno test results shipped with engine

WARRANTY:

30 month / 50,000 mile
