Description

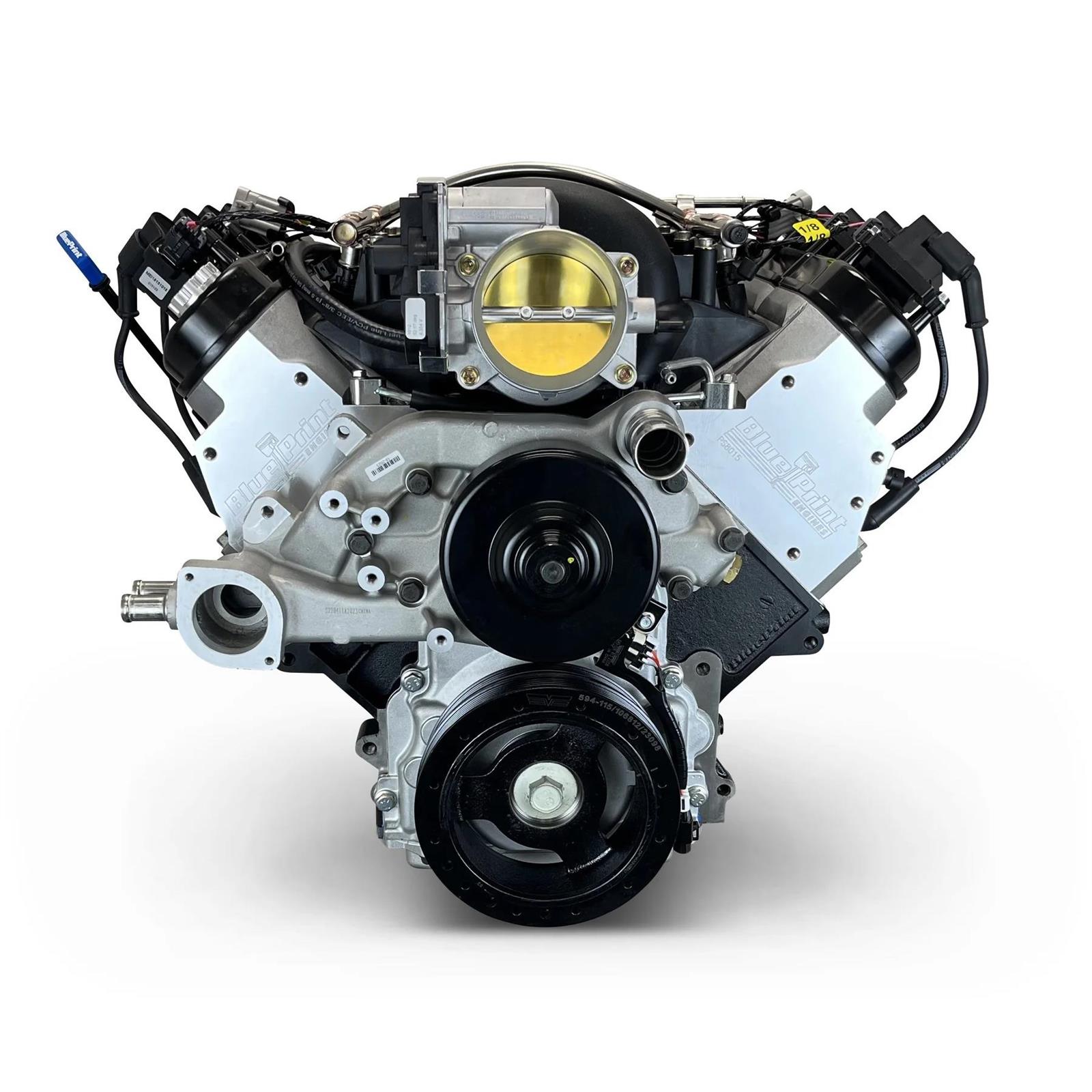

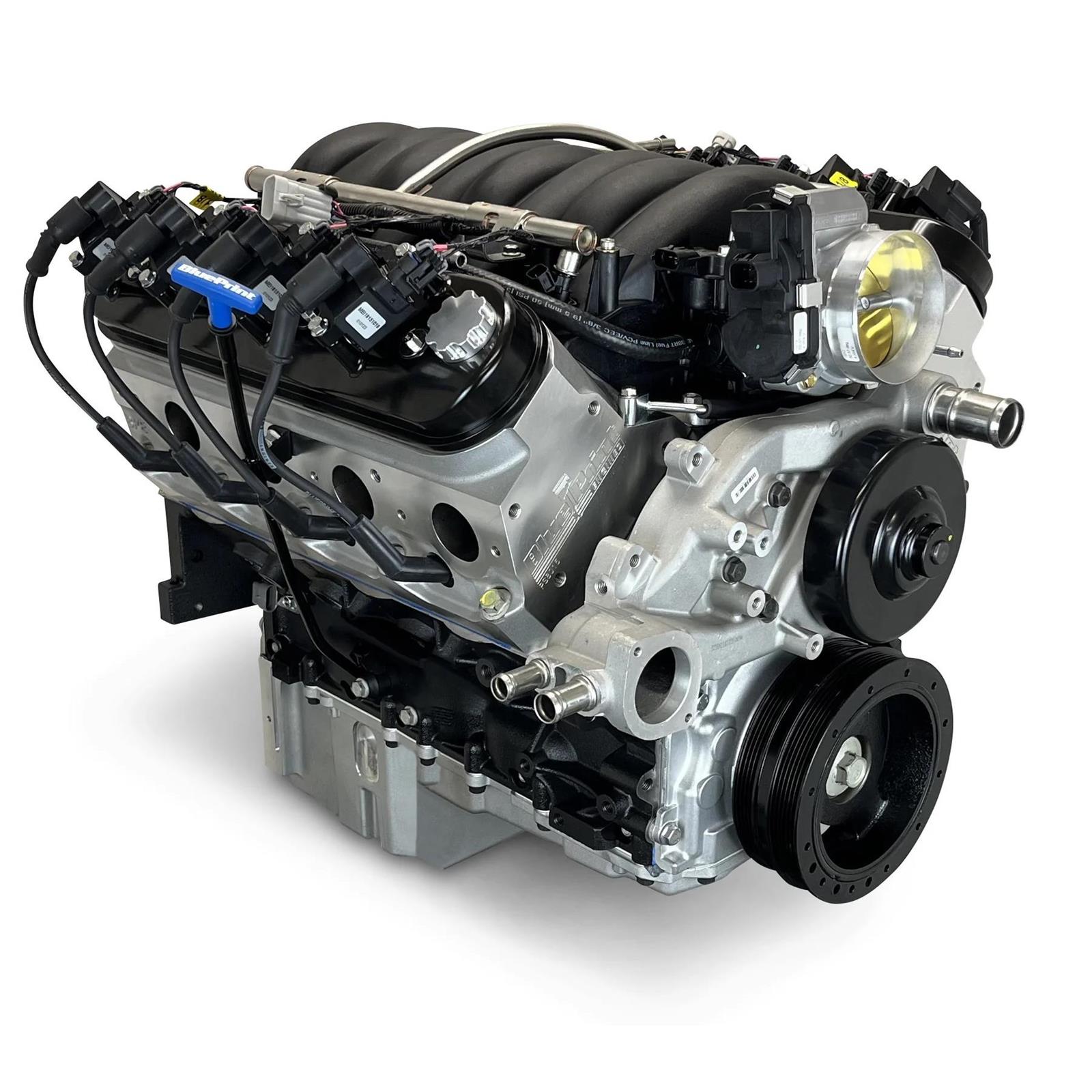

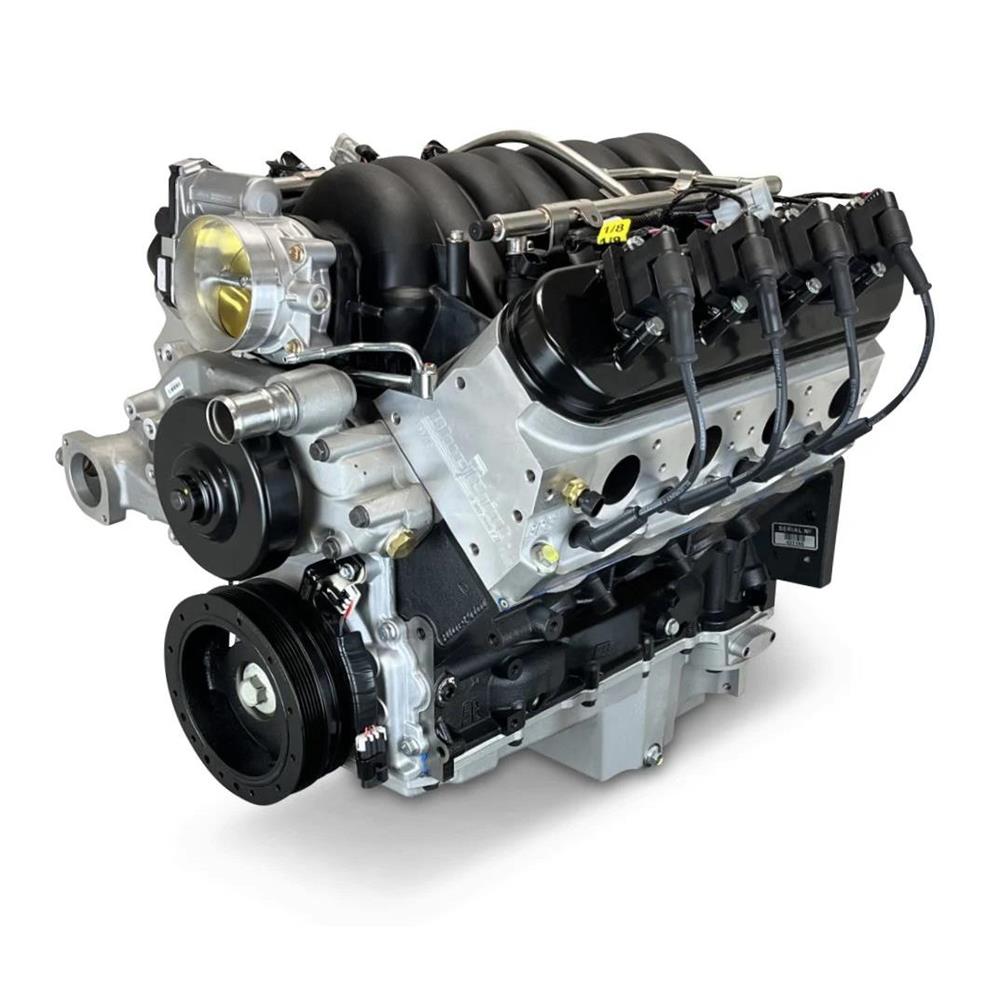

BluePrint PSLS37630CTF Chevy 376 CID LS Crate Engine

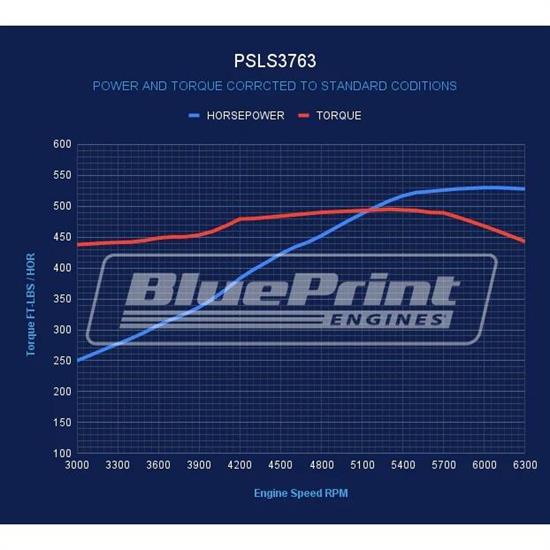

- Horsepower & Torque: 530 Horsepower / 495 FT LBS
- Compression Ratio: 10.7:1
- Aluminum Heads
- Hydraulic Roller Cam
- Nodular Iron Crankshaft
- Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron 6.2L Block
- Increased Deck Thickness and Strength Webbing
- Extended Cylinder Skirt
- Priority Main Oiling
- 4.0662″ Bore
- 6-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
- Utilizes OEM LS3 Front and Rear Covers.
Rotating Assembly:
- Nodular Iron Crankshaft
- 3.622″ Stroke
- 6.125″ Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – PS8015
- 69cc Chamber
- 2.165″ Intake / 1.590″ Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners
Cam Specs:
- Cam Type: Hydraulic Roller Cam
- .612 Intake / .585 Exhaust Lift
- 225 Intake / 238 Exhaust Duration
- @.050-113 Degree Lobe Separation
Also Includes:
- LS Swap Oil Pan
- DBW Throttle Body
- GM Plastic Intake Manifold
- Fuel Injectors and Rail
- Coil Packs
- Spark Plugs and Wires
- Water Pump
- Harmonic Balancer
Notes:
- Engine is not shipped with Engine controller kit. Must purchase separately for your application.
| KEY SPECS | |
|---|---|
| MFG. Part # | PSLS37630CTF |
| Brand | BluePrint Engines |
| Crate Engine Type | Long Block |
| Engine Displacement | 376 cu. in. |
| Horsepower | 530 horsepower |
| Compression Ratio | 10.7:1 |
| Torque | 495 ft./lbs. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Nodular Iron |
| Camshaft Duration (.050 in) | 225° intake / 238° exhaust |
| Camshaft Lift (in) | .612 intake / .585 exhaust |
| Carburetor Included | No |
| Intake Manifold Included | Yes |
| Distributor Included | No |
| Valve Covers Included | Yes |
| Engine Balance | Internal |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | Yes |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | Yes |
