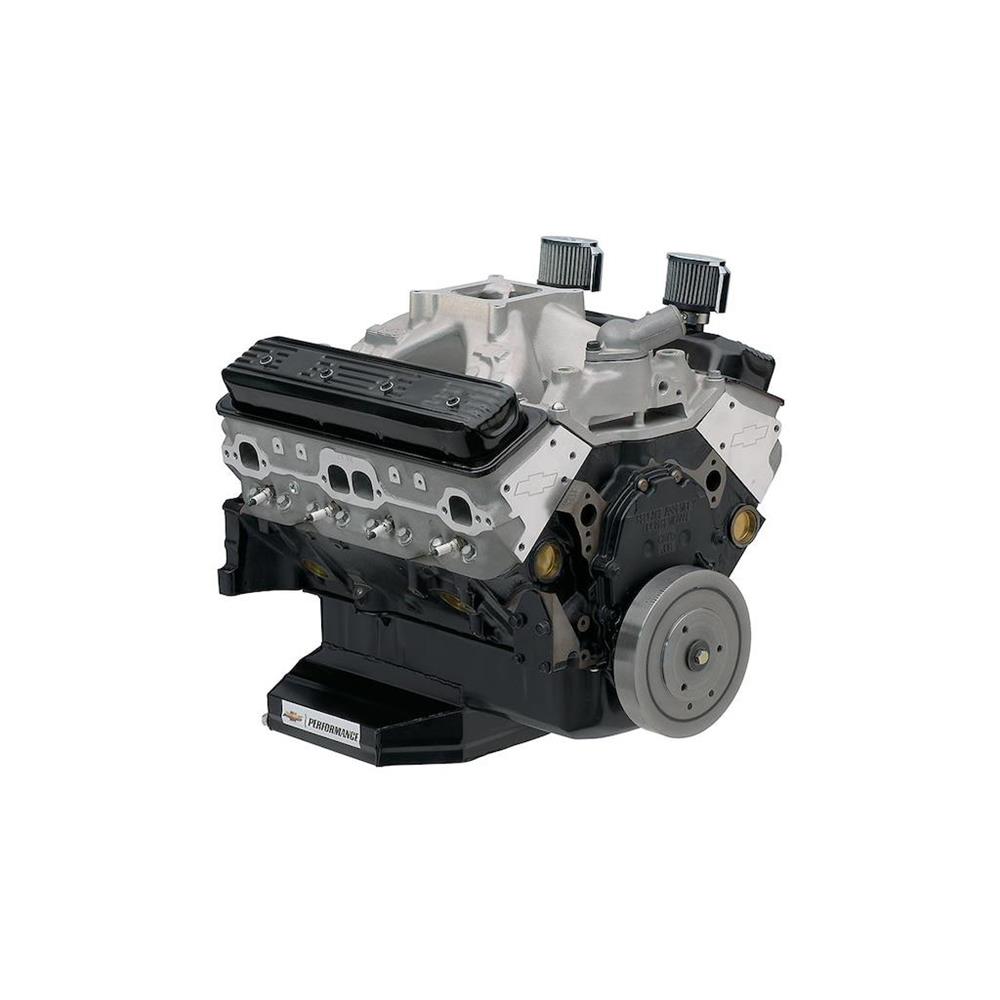

Chevrolet Performance 19433604 GM-Sealed 604 Crate Engine

Chevrolet Performance’s CT400 racing crate engine now features Fast Burn cylinder heads with LS-style beehive valve springs that enable great high-rpm performance and durability. They allow the engine to rev higher to make the most of every cubic inch of air drawn through it. The result is a durable engine with 404 hp at 5,600 rpm and 406 lb.-ft. of torque at 4,600 rpm.

The beehive springs are part of the lightweight aluminum cylinder head assemblies, which are based on the proven Fast Burn design, with large intake runners and 2.00/1.55-inch valves. The CT400 also has a tough bottom end, anchored by a forged steel crankshaft and strong aluminum pistons installed in a brand-new block with four-bolt mains.

The assembly also includes an open-plenum high-rise intake manifold, a racing-only 8-quart circle track oil pan with a dual kick-out design, a valve cover breather kit and aluminum roller rocker arms.

• Engine Type: Chevy Small-Block V-8
• Displacement (cu in): 350
• Bore x Stroke (in): 4.000 x 3.480
• Block: CNC Machined with 4-bolt main caps
• Crankshaft (P/N 12670965): Forged steel, shot peened
• Connecting Rods (P/N 10108688): Powdered metal
• Pistons (P/N 10159436): Hypereutectic aluminum
• Intake Manifold (P/N 12496822): Single-plane aluminum
• Camshaft Type (P/N 10185071): Steel hydraulic roller
• Valve Lift (in): .474 intake / .510 exhaust
• Camshaft Duration (@.050 in): 208° intake / 221° exhaust
• Cylinder Heads (P/N 19300955): Fast Burn aluminum; 62cc chambers
• Valve Size (in): 2.000 intake / 1.550 exhaust
• Compression Ratio: 9.72:1 Nominal
• Rocker Arms (P/N 19210724): Aluminum; roller style
• Rocker Arm Ratio: 1.5:1
• Recommended Fuel: Premium pump
• Ignition Timing: 36° Total @ 4,000 rpm
• Maximum Recommended rpm: 5,800
• Balanced: External
