Description

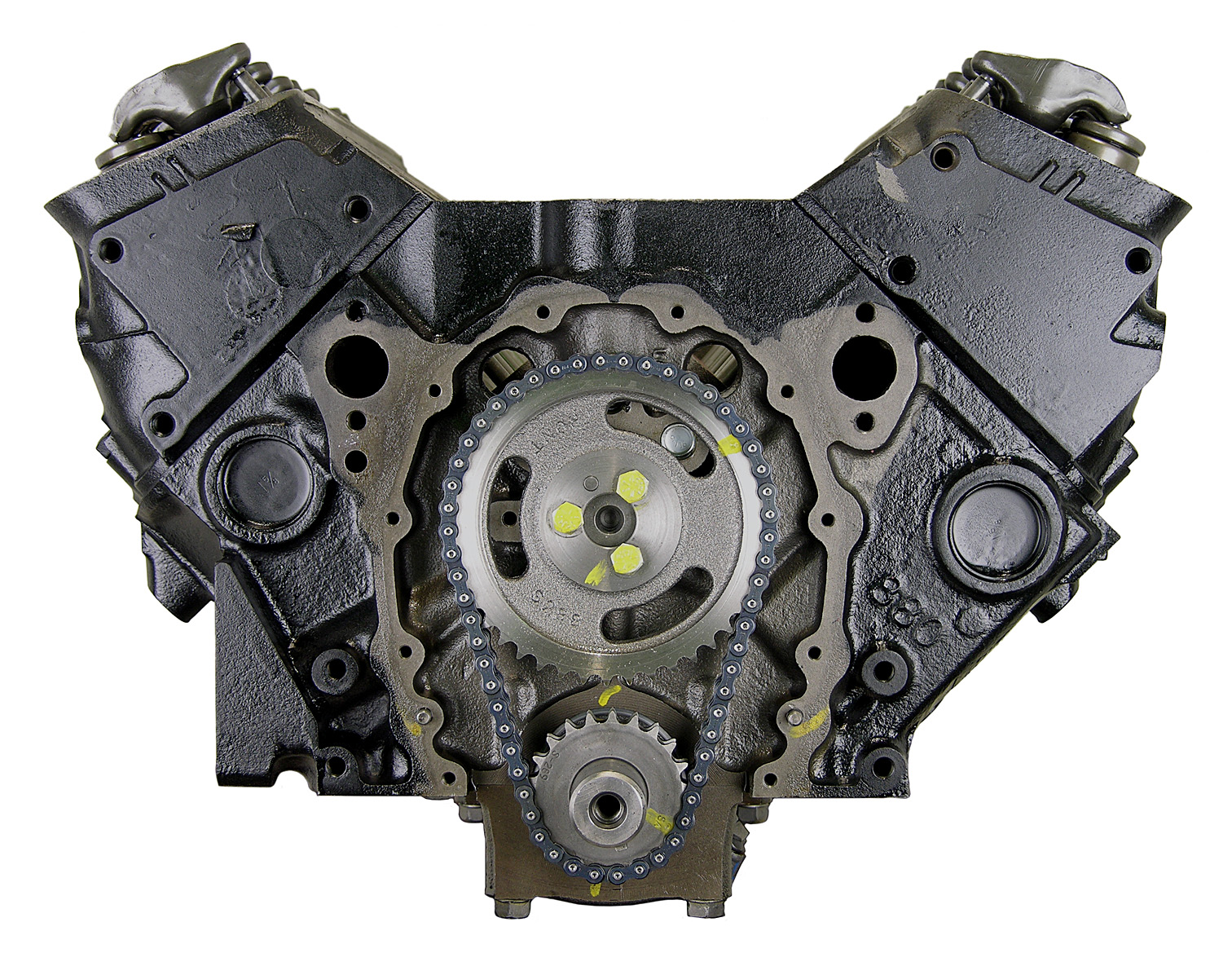

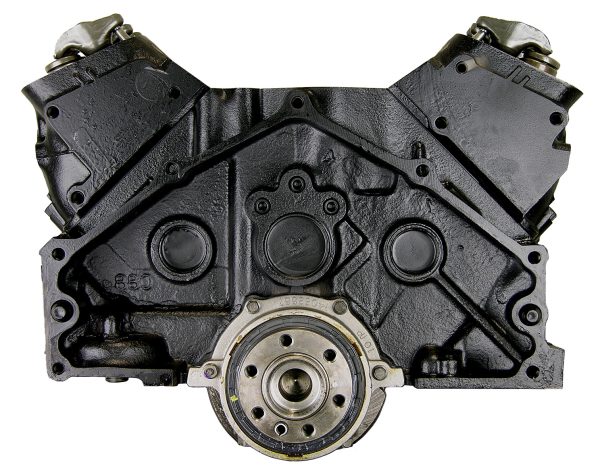

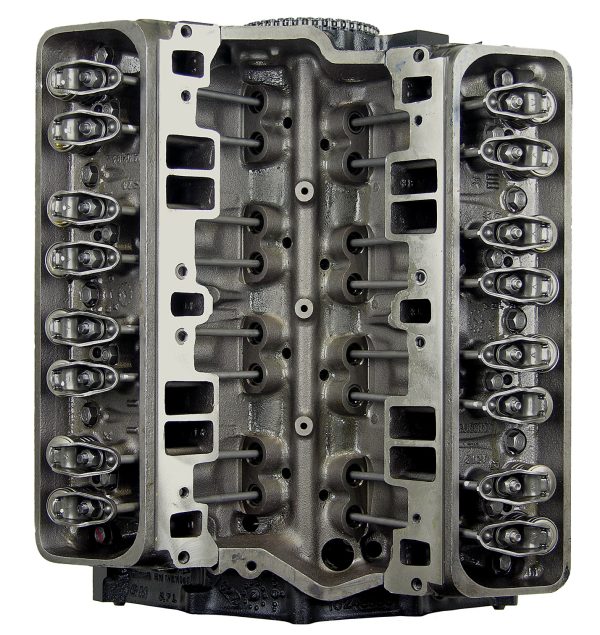

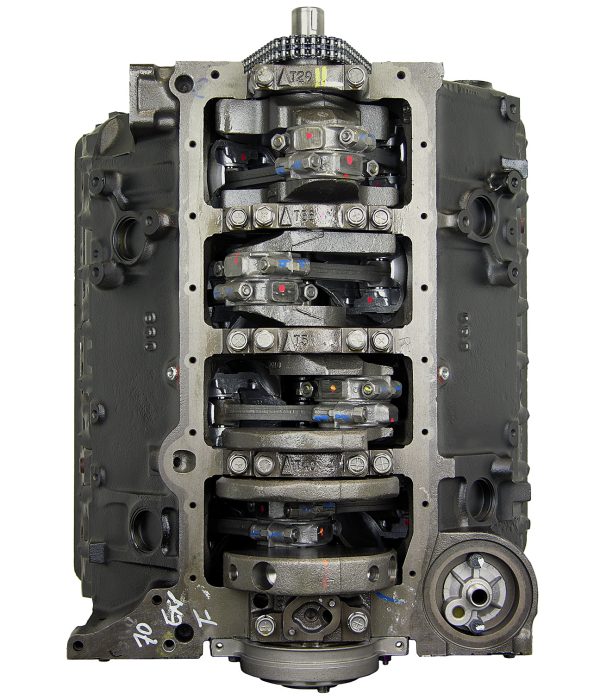

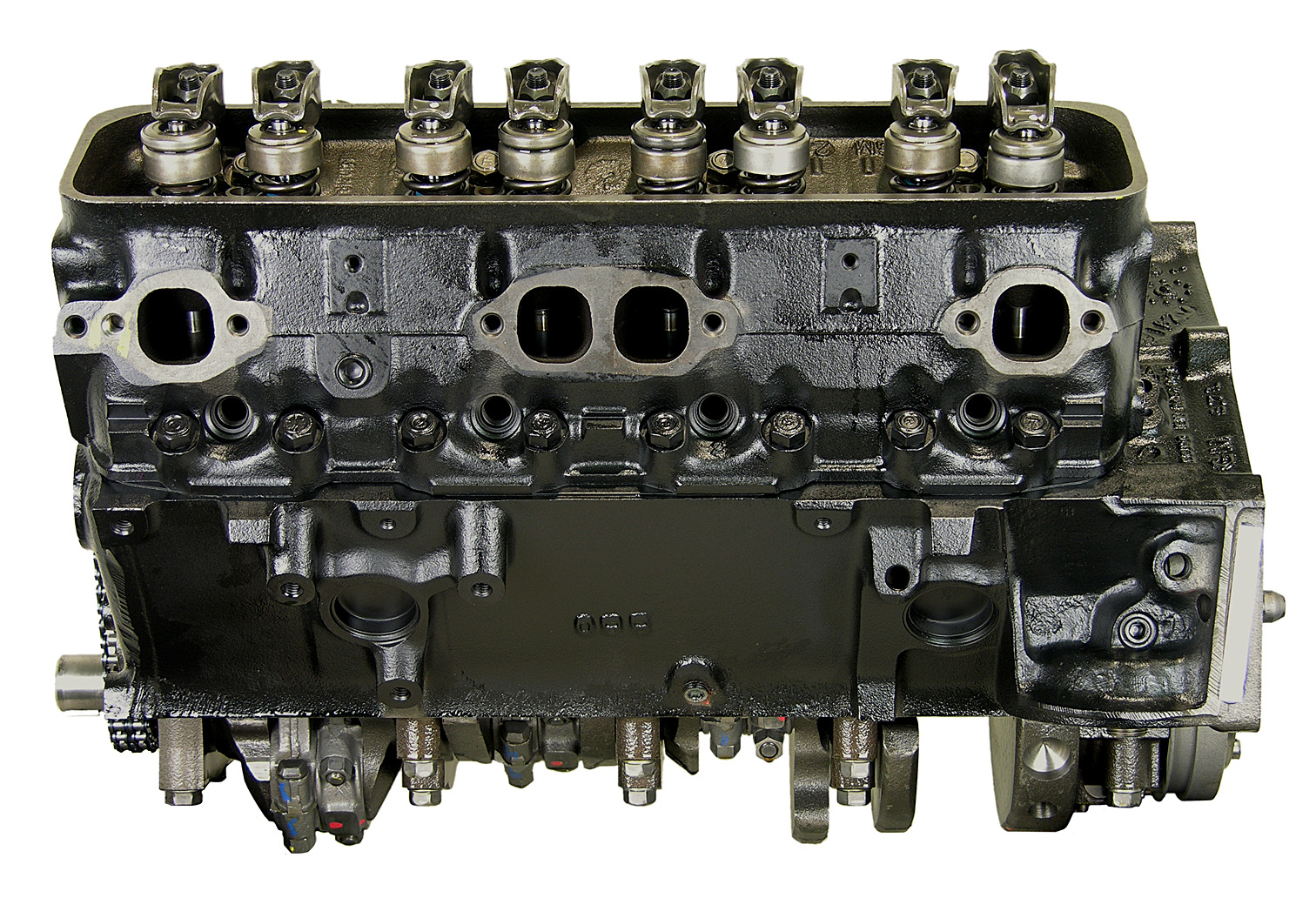

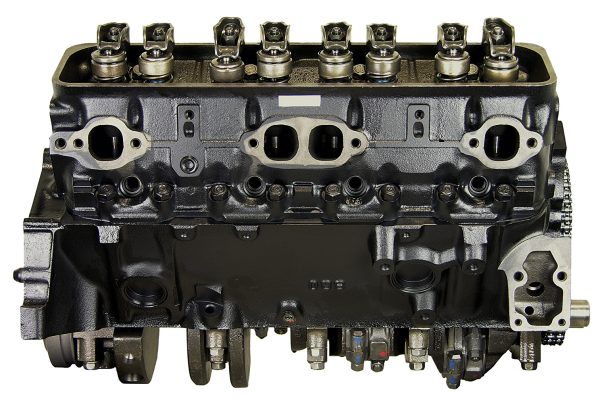

Chevy 350 5.7L V8 4 Bolt Main Remanufactured Engine – 1987-1995
1987-1995 Chevrolet GMC 5.7L 4BLT LF5 V8. Iron Block Cast #638, 727, 732, 148, 880, 4 Bolt Mains, V/C Mounts in Center, Hydraulic Cam. VIN Code A.
This engine has a fuel pump hole in the block for carb applications
Engine fitment can be verified with the notes and ‘Vehicle Fitment’ tab above, or with the casting numbers under ‘Additional Information’ (if applicable), or by calling toll-free (715) 289-1960
Every engine we sell is fully remanufactured to meet or exceed OEM specifications:
- Deep Clean – To start the remanufacturing process, every engine is fully disassembled and hot tanked (cast iron) or thermally cleaned (aluminum)
- Inspection – Magnaflux testing uses magnetic particles to inspect metal, checking for microscopic cracks and fissures that will cause long-term failure. All parts are visually inspected as well.
- Machining and New Parts – Deck surfaces are CNC machined and new parts are added. New parts inlcude bearings, pistons, rings, lifters, oil pump, gaskets, Viton™ valve seals, freeze plugs, galley plugs and either a new timing chain (with new tensioners) or a new timing belt (with new tensioner). If an engine has a timing-driven water pump, a new pump is installed.
- SIM Testing – Each engine is SIM tested after reassembly, with the cooling and oil systems being fully pressurized and the crank being spun at high RPM to verify compression and build quality.
An Engine Install Kit Is Included
Because of our rigorous remanufacturing process, we can offer the industry’s best warranties. Each engine comes with up to 7 years and 1 million miles of warranty, which can be upgraded to include Pure Care™ no-fault protection. No other engine manufacturer comes close.
Vehicle Fitment
|
Year |
Make |
Model |
Engine |
Position |
Note |
|
1987 – 1987 |
Chevrolet |
V20 |
V8 5.7L |
||
|
1987 – 1987 |
GMC |
V2500 |
V8 5.7L |
||
|
1987 – 1988 |
Chevrolet |
R20 |
V8 5.7L |
||
|
1987 – 1988 |
Chevrolet |
R20 Suburban |
V8 5.7L |
||
|
1987 – 1988 |
Chevrolet |
R30 |
V8 5.7L |
||
|
1987 – 1988 |
Chevrolet |
V20 Suburban |
V8 5.7L |
||
|
1987 – 1988 |
Chevrolet |
V30 |
V8 5.7L |
||
|
1987 – 1989 |
Chevrolet |
P20 |
V8 5.7L |
||
|
1987 – 1989 |
GMC |
P2500 |
V8 5.7L |
||
|
1987 – 1989 |
GMC |
R2500 |
V8 5.7L |
||
|
1987 – 1991 |
GMC |
R2500 Suburban |
V8 5.7L |
||
|
1987 – 1991 |
GMC |
R3500 |
V8 5.7L |
||
|
1987 – 1991 |
GMC |
V2500 Suburban |
V8 5.7L |
||
|
1987 – 1991 |
GMC |
V3500 |
V8 5.7L |
||
|
1987 – 1995 |
Chevrolet |
G20 |
V8 5.7L |
||
|
1987 – 1995 |
GMC |
G2500 |
V8 5.7L |
||
|
1987 – 1996 |
Chevrolet |
G30 |
V8 5.7L |
||
|
1987 – 1996 |
Chevrolet |
P30 |
V8 5.7L |
||
|
1987 – 1996 |
GMC |
G3500 |
V8 5.7L |
||
|
1987 – 1996 |
GMC |
P3500 |
V8 5.7L |
||
|
1988 – 1994 |
Chevrolet |
C2500 |
V8 5.7L |
||
|
1988 – 1995 |
Chevrolet |
C3500 |
V8 5.7L |
||
|
1988 – 1995 |
Chevrolet |
K2500 |
V8 5.7L |
||
|
1988 – 1995 |
Chevrolet |
K3500 |
V8 5.7L |
||
|
1988 – 1995 |
GMC |
C2500 |
V8 5.7L |
||
|
1988 – 1995 |
GMC |
C3500 |
V8 5.7L |
||
|
1988 – 1995 |
GMC |
K2500 |
V8 5.7L |
||
|
1988 – 1995 |
GMC |
K3500 |
V8 5.7L |
||
|
1989 – 1989 |
Chevrolet |
R2500 |
V8 5.7L |
||
|
1989 – 1991 |
Chevrolet |
R2500 Suburban |
V8 5.7L |
||
|
1989 – 1991 |
Chevrolet |
R3500 |
V8 5.7L |
||
|
1989 – 1991 |
Chevrolet |
V2500 Suburban |
V8 5.7L |
||
|
1989 – 1991 |
Chevrolet |
V3500 |
V8 5.7L |
||
|
1992 – 1995 |
Chevrolet |
C2500 Suburban |
V8 5.7L |
||
|
1992 – 1995 |
Chevrolet |
K2500 Suburban |
V8 5.7L |
||
|
1992 – 1995 |
GMC |
C2500 Suburban |
V8 5.7L |
||
|
1992 – 1995 |
GMC |
K2500 Suburban |
V8 5.7L |
||
|
1995 – 1996 |
AM |
General Hummer |
V8 5.7L |
Product Attributes
|
Title |
Value |
|
1) Note |
Iron Block Cast #638, 727, 732, 148, 880, 4 Bolt Mains, V/C Mounts in Center, Hydraulic Cam |
|
Block Cast # |
638, 727, 732, 148, 880 |
|
Block Type |
V |
|
California Proposition 65 Cancer |
WARNING: This product can expose you to chemicals including chromium (hexavalent compounds), which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
|
California Proposition 65 Reproductive |
WARNING: This product can expose you to chemicals including chromium (hexavalent compounds), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|
Crank Cast # |
526, 535 |
|
Cylinder Head Material |
Iron |
|
Engine Block Material |
Iron |
|
Engine Displacement |
350.0 |
|
Engine Manufacturer Code |
LF5 |
|
Engine Size (L) |
5.7 |
|
Engine Type |
LF5 Eng. |
|
Fuel Type |
GAS |
|
Fuel Type |
Gas |
|
Grade Type |
Premium |
|
Head Type |
Iron Vortex OHV |
|
Left Head Cast # |
191, 193 |
|
Main Bearing Cap Bolt Quantity |
2 |
|
Number of Cylinders |
8 |
|
Number of Valves |
16 |
|
OEM Make |
GM |
|
Right Head Cast # |
191, 193 |
|
VIN |
A |
|
Years |
1987-95 |
WARNING: This product can expose you to chemicals including chromium (hexavalent compounds), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
