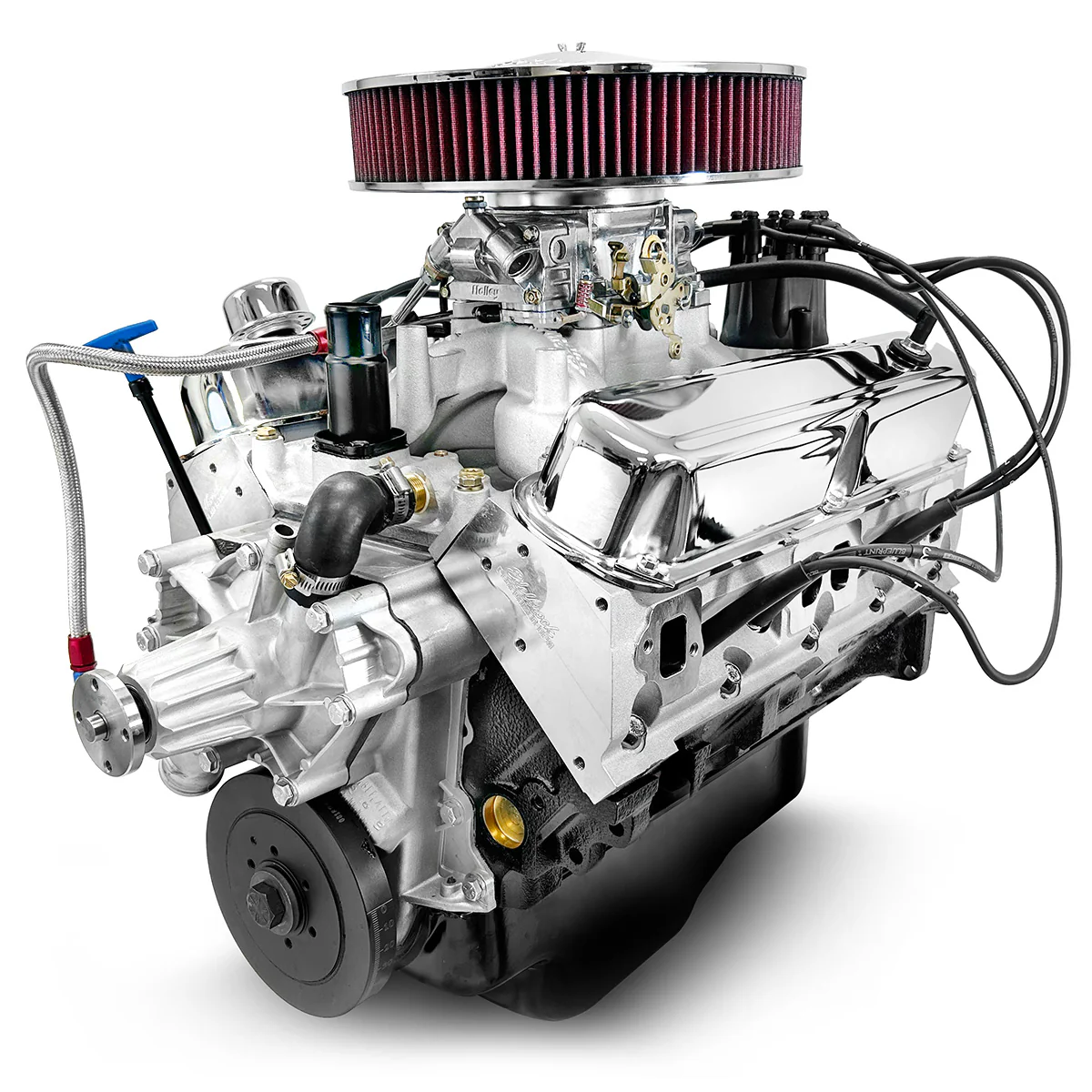

BluePrints BPC4085CTCD Chrysler Small Block Compatible performance crate engines are dyno tested. This produces 465 horsepower and 494 ft. lbs. torque. This 408ci Stroker Engine comes with Dipstick, Oil Pan, Timing Cover, Valve Covers, Edelbrock Aluminum Heads, Magnum Pattern Intake, Holley Classic 750cfm Vacuum Secondary Carburetor w/ Manual Choke, and Spark Plugs / Wires.
Description:
Horsepower & Torque: 465 Horsepower / 494 FT. LBS. Torque
Compression Ratio: 10:1
Aluminum Heads
Roller Cam
Cast Crankshaft
Forged Pistons
Block:
Hand-Picked Seasoned Magnum Block
Square and Parallel Decked
Align Honed Main Bearing Bore
Cylinders Honed on Computer Controlled Machine to Within .0002 Straightness and Roundness
Cylinders are Sonic Tested for Thickness
2-Bolt Main
4.040″ Bore
2-Piece Rear Main Seal
Mech Fuel Pump Provision: Yes
Rotating Assembly:
Cast Crankshaft
4.000″ Stroke
Forged Magnum 6.123″ Connecting Rods w/ 150,000 PSI Bolts
Forged Pistons
Externally Balanced Front and Rear
Cylinder Heads:
Kezar’s Perfomance Assembled and Machined Edelbrock 61769 Casting
Aluminum Magnum Pattern Cylinder Heads
58cc Chamber
Aluminum Roller Rockers
2.02″ Intake / 1.60″ Exhaust Valves
176cc Intake / 75cc Exhaust Runners
Cam Specs:
Cam Type: Roller
.544 Intake / .541 Exhaust Lift
236 Intake / 242 Exhaust Duration
@.050-110 Degree Lobe Separation
Ignition Timing:
34 Degrees Total at 4000 RPM
Also Includes:
Valve Covers
Oil Pan
Timing Cover
Spark Plugs and Wires
Distributor
Water Neck
Thermostat and Thermostat Housing
Fuel Pump and Fuel Line
Harmonic Balancer
Air Cleaner
Drive Side Inlet Water Pump
