Edelbrock 46127 Supercharged Gen III 426 Hemi with Accessories
Edelbrock 46127 Supercharged Gen III 426 Hemi with Accessories

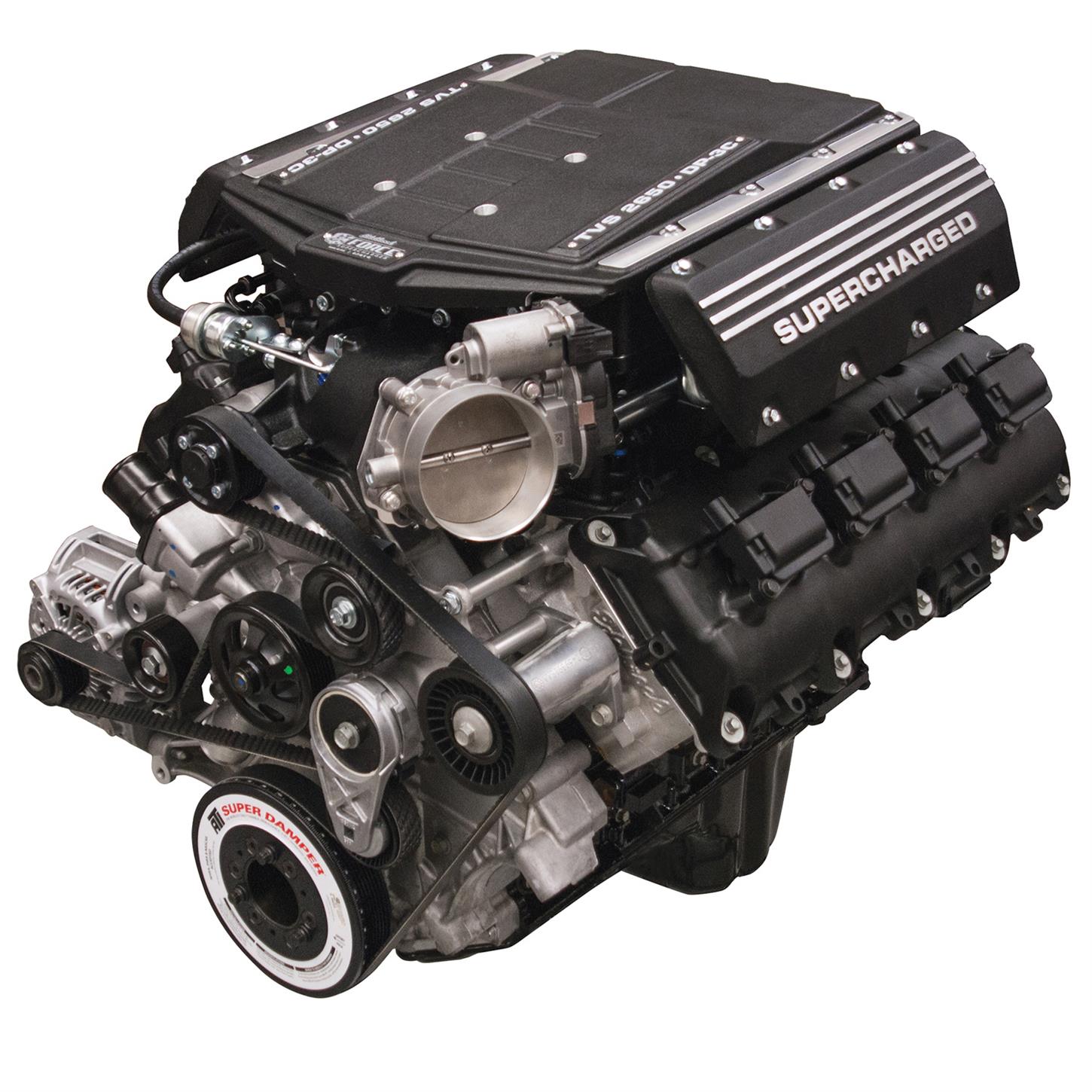

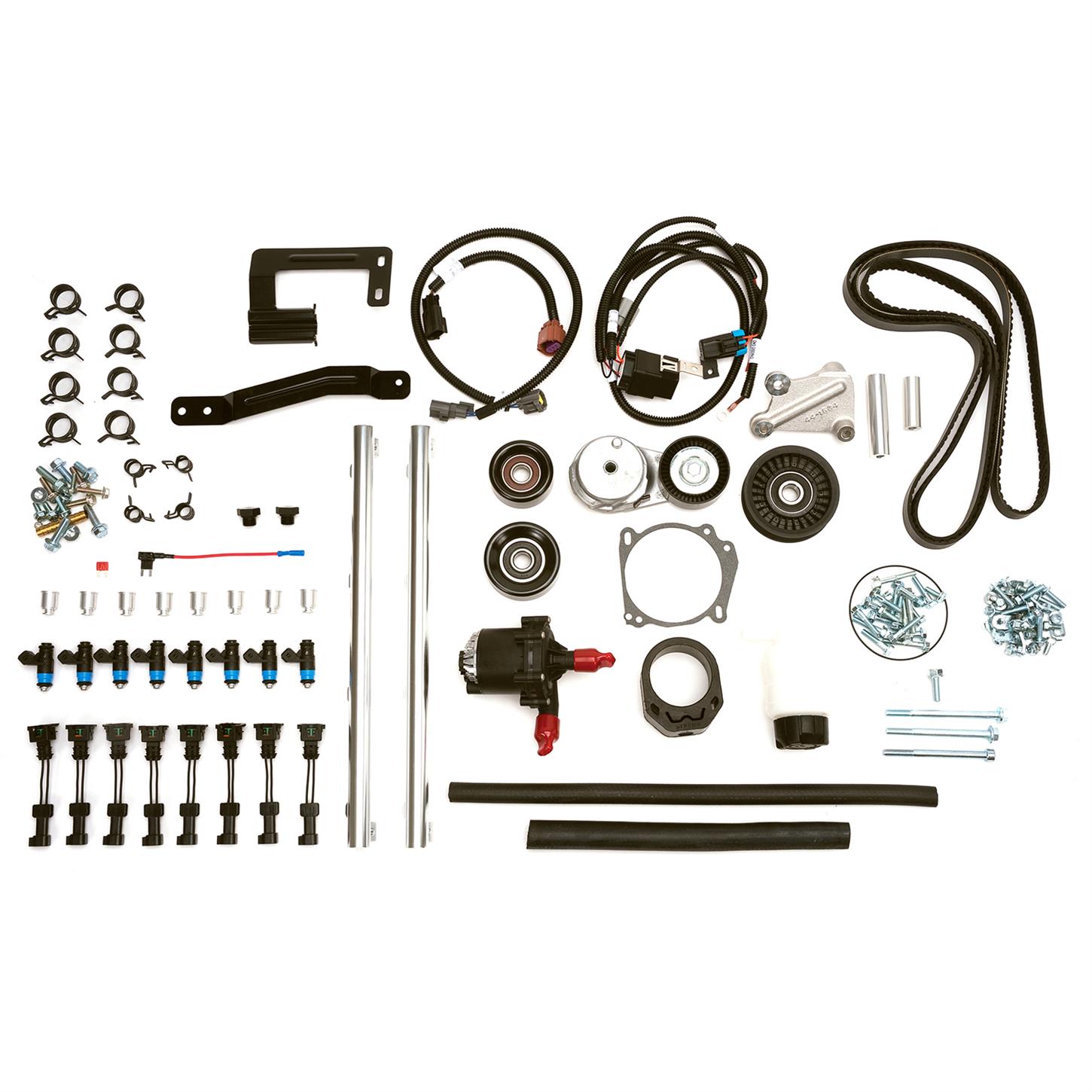

Edelbrock 426 c.i.d. HEMI crate engine Part #46126 produces an astounding 808 horsepower and 762 ft-lbs. of torque. The foundation is based on a new iron Mopar 392 block with a forged Manley crankshaft, forged Manley H-Beam connecting rods and forged aluminum pistons. Sitting on top is an Edelbrock E-Force supercharger system with Eaton TVS R2650 rotors. Also included are the essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing, intercooler recovery tank, as well as fuel rails, fuel injectors, coils, mass air flow sensor (MAFS) housing, and reusable air filter.
The supercharger equipped on this engine features a driver’s side throttle body orientation for ease of intake routing. Pair with universal heat exchangers for a complete installation.
Engine Specifications:
- Displacement: 426 c.i.d.
- Bore: 4.090″
- Stroke: 4.050″
- Horsepower: 808
- Torque: 762
- Compression: 9.9:1
- Block: New Mopar Iron
- Crankshaft: Forged 4340
- Pistons: Forged Aluminum -5cc
- Camshaft: 226°/234°, .619/.612, 114 cl
- Rocker Arms: Stock Gen III Hemi
- Cylinder Heads: Edelbrock Performer RPM #61099
- Fuel Injectors: 60 lb./hr., Siemens
- Supercharger: Edelbrock E-Force R2650 TVS
- Supercharger Belt: 100” 6-Rib
- Fuel Type: Requires 91 Octane Minimum
| KEY SPECS | |
|---|---|
| MFG. Part # | 46127 |
| Brand | Edelbrock |
| Crate Engine Type | Long Block |
| Engine Displacement | 426 cu. in. |
| Compression Ratio | 9.9:1 |
| Camshaft Type | Hydraulic Roller Tappet |
| Cylinder Head Material | Aluminum |
| Carburetor Included | No |
| Intake Manifold Included | Yes |
| Distributor Included | No |
| Valve Covers Included | Yes |
| Engine Balance | Internal |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | Yes |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | Yes |
| Wiring Harness Included | Yes |
