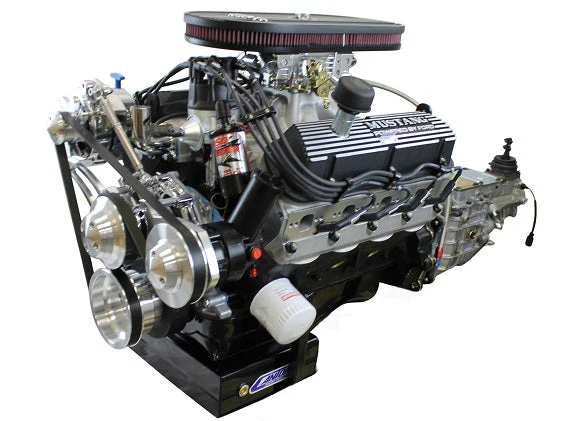

Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission – 415 Horsepower – Mustang Edition Builder Series with Polished Pulley Kit – Fuel Injected

Description

Description:
Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Cast Crank
Forged Pistons
Block:
Kezar’s Perfomance High Strength Cast Iron Block
Increased Deck Thickness and Strength Webbing
Priority Main Oiling
4.000″ Bore
4-Bolt Main
1-Piece Rear Main Seal
Improved Water Jacket Design
Rotating Assembly:
Cast Crankshaft
3.400″ Stroke
Forged I-Beam 5.400″ Connecting Rods
Forged Pistons
28oz Externally Balanced Front and Rear
Cylinder Heads:
BluePrint Aluminum Cylinder Heads – HP9009
60cc Chamber
2.02″ Intake / 1.60″ Exhaust Valves
190cc Intake / 65cc Exhaust Runners
Cam Specs:
Hydraulic Roller
.543 Intake / .554 Exhaust Lift
218 Intake / 226 Exhaust Duration
@.050-112 Degree Lobe Separation
Ignition Timing:
34 Degrees Total at 3500 RPM
Also Includes:
Dual Plane, Satin Aluminum Intake Manifold
Holley Sniper 2 EFI System
Pro Billet Distributor
Mustang Style Valve covers *Mustang scripted valve cover may be different than pictured based on availability*
7 Quart Oil Pan
EFI Fuel Pump Kit
Front Accessory Drive with A/C Compressor, Power Steering Pump, Alternator, and Water Pump
Thermostat and Thermostat Housing
Assembled with Complete TKX Transmisison Package:
Mcleod Super Street Pro Single Disk Clutch
Hydraulic Throw Out Bearing
Aluminum Bell Housing
Billet Flywheel
Engine Guard
Starter
First Gear Ratio: 2.87:1
Second Gear Ratio: 1.89:1
Third Gear Ratio: 1.28:1
Fourth Gear Ratio: 1.00:1
Fifth Gear Ratio: 0.81:1
