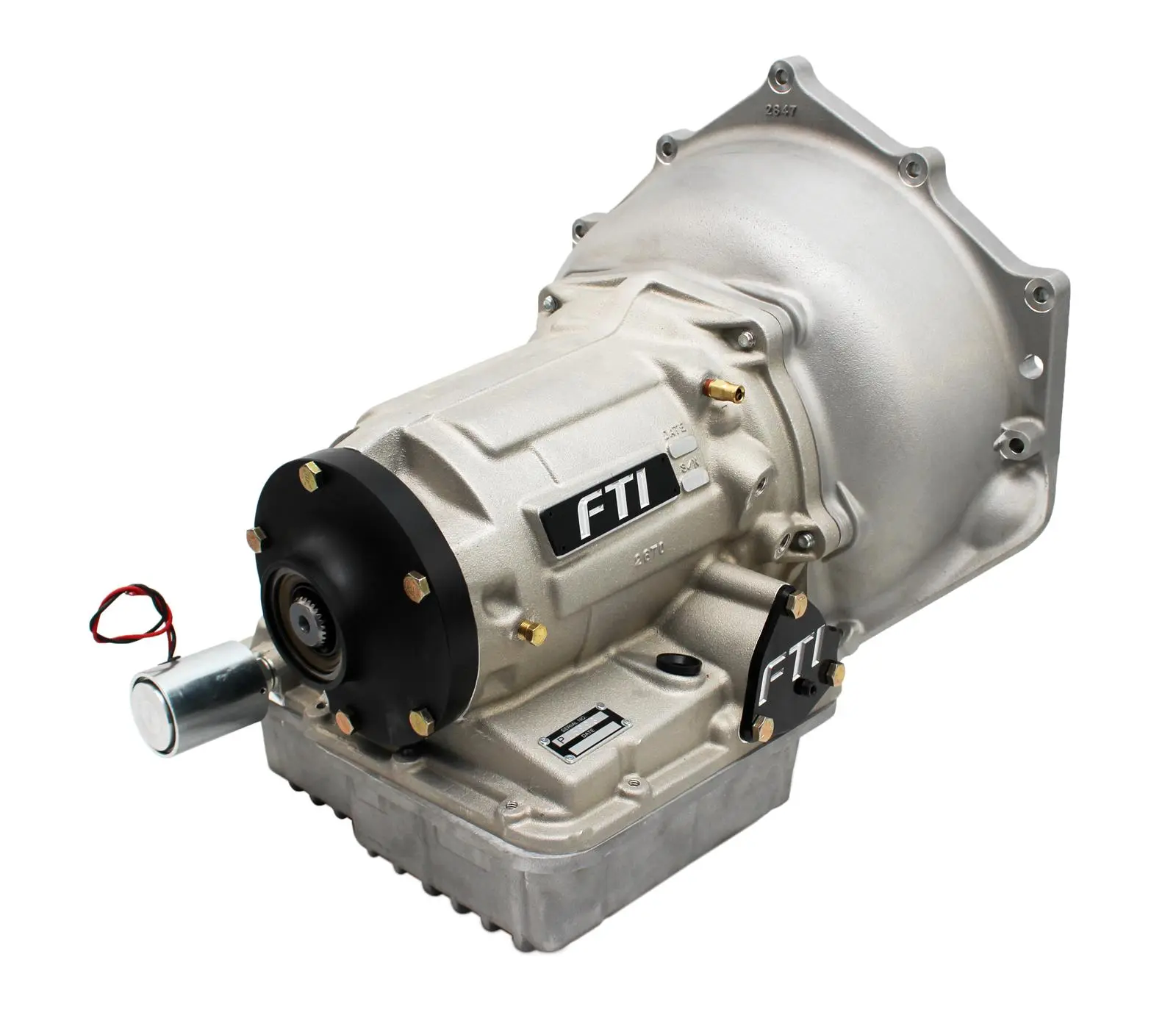

FTI Performance Pro Powerglide Level 5.5 Transmissions PPG5.5M

Description

FTI Performance Pro Powerglide Level 5.5 Transmissions PPG5.5M

Brand: FTI Performance

Manufacturer’s Part Number: PPG5.5M

Part Type: Automatic Transmissions

Product Line: FTI Performance Pro Powerglide Level 5.5 Transmissions

Summit Racing Part Number: FTI-PPG55M

UPC: 887753818447

Number of Gears: 2

Bellhousing Bolt Pattern Manufacturer: Chevy

Transmission Shift Pattern: Forward

Valve Body Style: Full manual

Transmission Advertised Horsepower Rating: 2,200

Torque Converter Included: No

Flexplate Included: No

Transmission Controller Included: No

Wiring Harness Included: No

Transmission Cooler Included: No

Trans-Brake Included: Yes

Lockup Compatible: No

Transmission Pan Style: Deep

Transmission Pan Material: Aluminum

Transmission Pan Finish: Natural

Tailshaft Length (in.): 11.250 in.

Yoke Style: Slip-on

Input Spline Quantity: 30

Input Shaft Material: Vasco

Input Shaft Style: TH350/400

First Gear Ratio (Automatic Transmissions): 1.80

Clutch Hub: Billet Steel

Transmission Case Style: Aftermarket

Transmission Case Material: Aluminum

Transmission Case Finish: Natural

Transmission Shield Built In: No

Flexplate Shield Built In: No

Fluid Fill Location: Case

Transmission Fluid Included: No

Dipstick Included: No

SFI Rating: SFI 4.1/ 30.1

Remanufactured: No

Quantity: Sold individually.

Notes: Input shaft is a ring-less design. Also includes a 300M output shaft.

FTI Performance Pro Powerglide Level 5.5 Transmissions

Delivering big power for racers, FTI Performance Pro Powerglide Level 5.5 transmissions are an unbreakable unit. Equipped with the FTI creatively designed spiral springs and valve body, these units don’t creep when the brake is set—a must in today’s racing world. With in-house machining, the transmissions are hand-assembled by one builder, and every clearance is set to exacting tolerances. FTI automatic transmissions house the greatest advances in Powerglide racing technology, and are designed to withstand the rigors of today’s high performance engines in an extremely demanding environment.

Other features include:

* 2200 advertised horsepower rating
* Protree transbrake 265 lbs.
* Lightened steel clutch hub
* 1.80 or 1.69 straight cut planetary
* Vasco input shaft
* 10-clutch drum
* Pro mod wideband
* High-flow pump
* 300M output shaft
