GM Small Block Compatible 400 c.i. Engine – 500 Horsepower – Deluxe Dressed – Fuel Injected

Description

Description

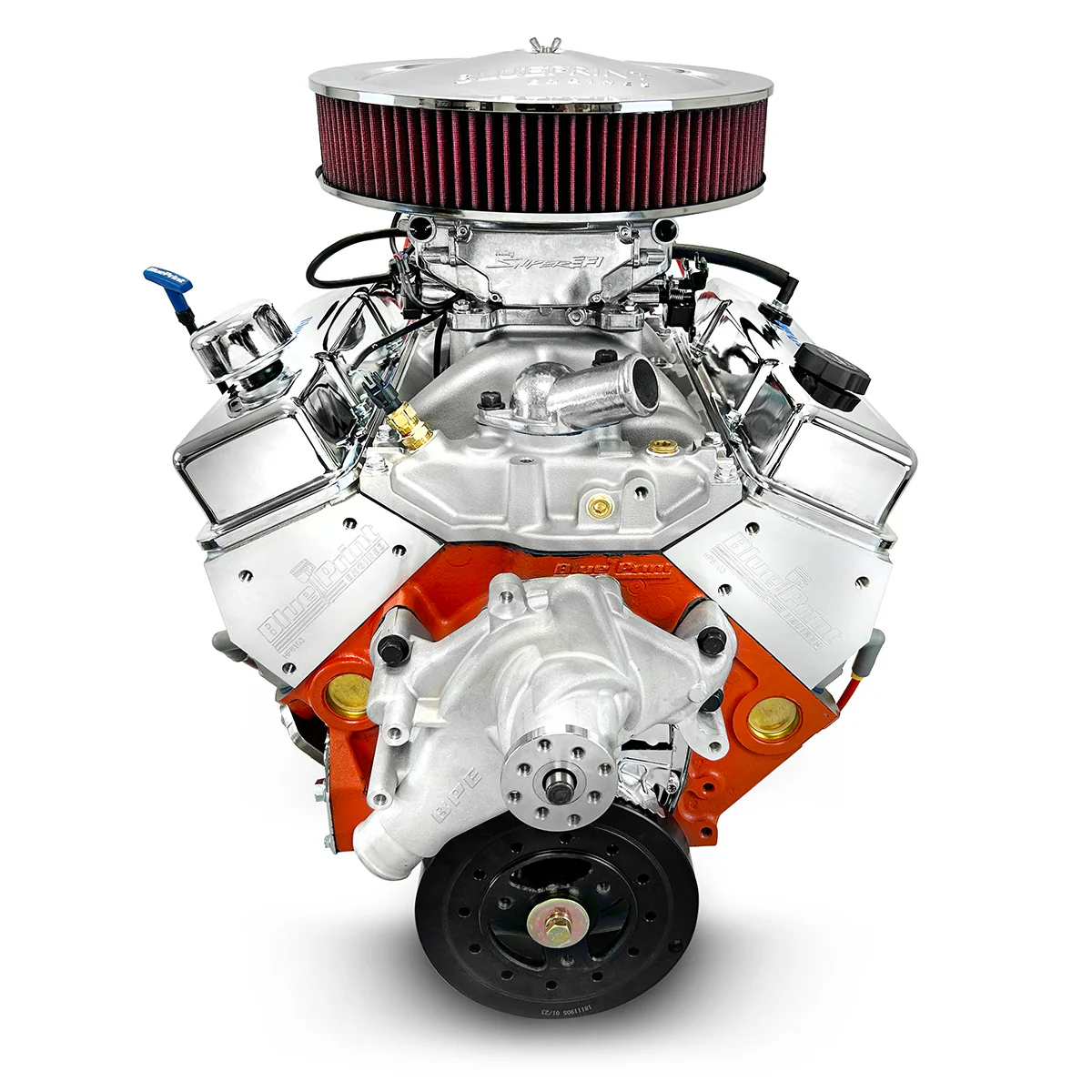

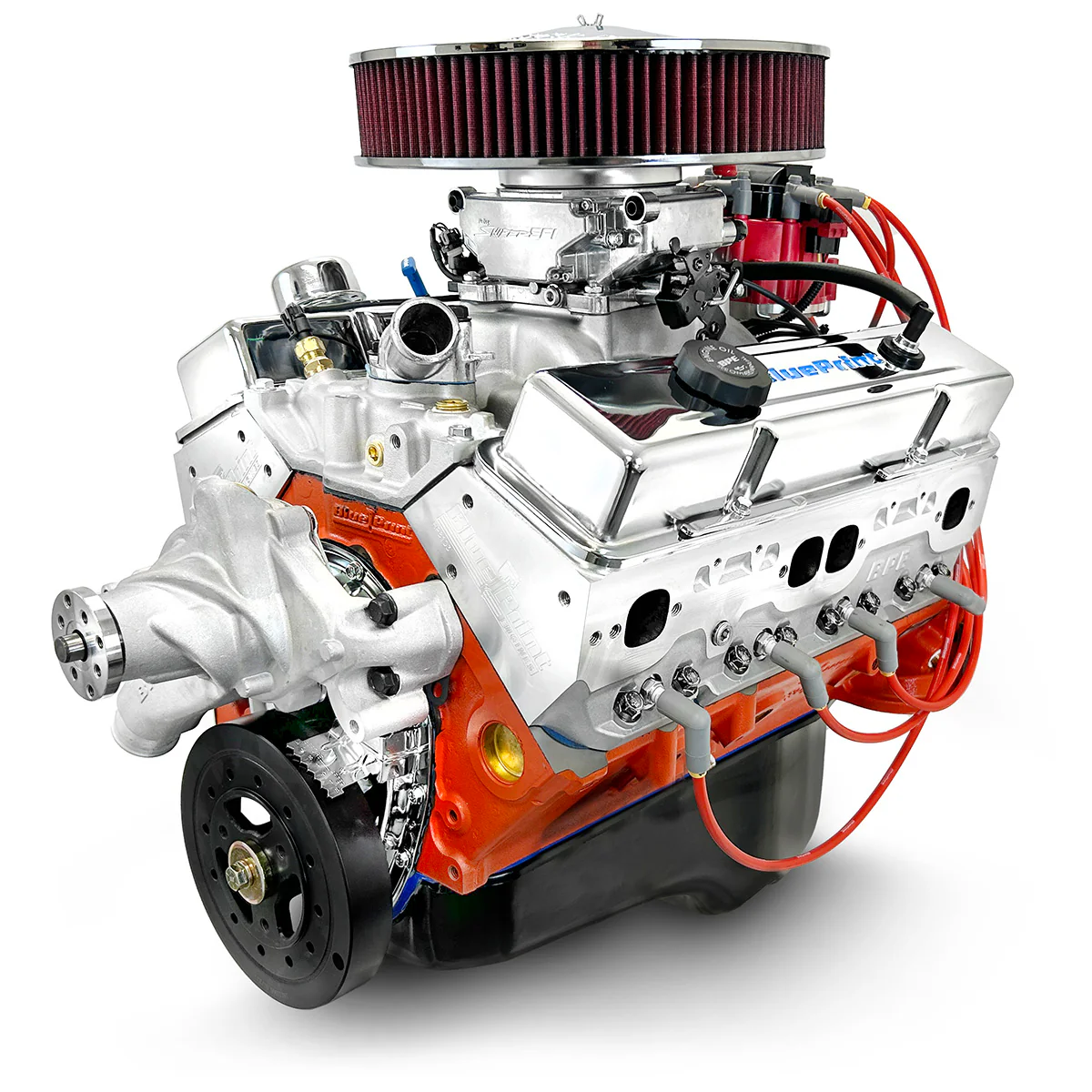

Carbureted Engine Pictured. Does not include Fuel pump or lines.

Description:
Horsepower & Torque: 500 Horsepower / 500 FT. LBS. Torque
Compression Ratio: 10.3:1
Aluminum Heads
Hydraulic Roller Cam
Forged Steel Crank
Forged Pistons
Block:
Kezar’s Perfomance High Strength Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.125″ Bore
1-Piece Rear Main Seal
Mech Fuel Pump Provision: Yes
Passenger Side Dipstick
Drilled and Tapped for Clutch Linkage
Rotating Assembly:
New BluePrint Forged Steel Crankshaft
3.750″ Stroke
5.700″ Connecting Rods w/ 150,000 PSI Bolts
Forged Pistons
Internal Front / External Rear Engine Balance
Cylinder Heads:
BluePrint Aluminum Cylinder Heads – HP8103
64cc Chamber
2.08″ Intake /1.60″ Exhaust Valves
220cc Intake / 67cc Exhaust Runners
Cam Specs:
Cam Type: Roller
.555 Intake / .576 Exhaust Lift
236 Intake / 242 Exhaust Duration
@ .050-110 Degree Lobe Separation
Ignition Timing:
10-16° Initial and Total Timing 32-34° at 3500 RPM
Also Includes:
Holley Sniper 2 EFI System
Intake Manifold Dual Plane, Satin Aluminum
Distributor
Valve Covers
Harmonic Balancer
Spark Plugs and Wires
Oil Pan
Timing Cover
Long Style Water Pump
Thermostat and Thermostat Housing
