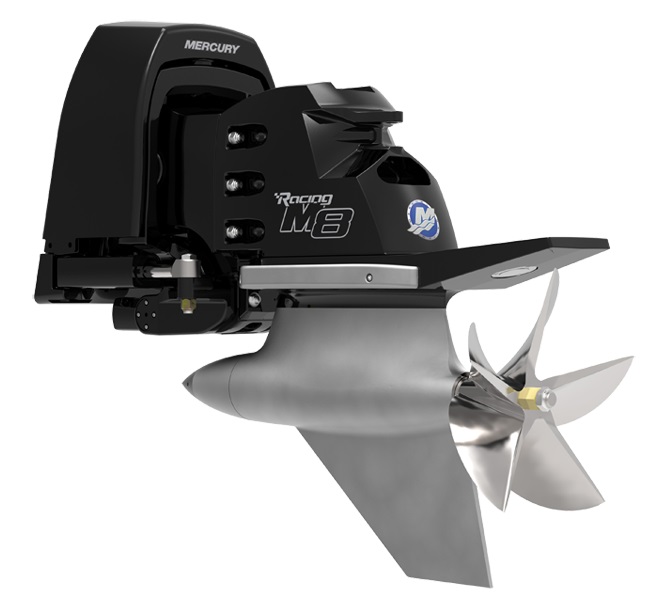

Mercury Racing M8 Sterndrive – Ultimate High-Performance Marine Outdrive for Racing & Offshore Power
The Mercury Racing M8 Sterndrive is a premium, surface-piercing marine outdrive engineered for the most demanding high-horsepower applications. Combining robust internal components, a twin-pinion drive system, and a dry-sump design, the M8 delivers unmatched efficiency, reduced parasitic losses, and extreme durability. Its surface-piercing gearcase allows for a lower engine mounting profile, resulting in a lower center of gravity for superior boat handling, improved performance, and greater flexibility in hull and hatch design.
Rated for up to 1650 HP with an input torque capacity of 1600 ft-lbs, the M8 is built for twin-engine or multi-engine setups in offshore race boats, high-performance cruisers, and competition vessels pushing extreme speeds.
Key Features & Benefits for High-Performance Boating
- Surface-Piercing Gearcase — Lowers engine position for better center of gravity, reduced drag, and enhanced handling; ideal for performance hulls.
- Dry-Sump Lubrication — Maximizes efficiency and power output by reducing parasitic losses and ensuring reliable lubrication under high loads.
- Twin-Pinion Drive & Robust Internals — Heavy-duty components handle massive torque (1600 ft-lbs) and power (1650 HP) with precision gearing for smooth, reliable transfer.
- Advanced Corrosion Resistance — Standard active anode system and durable materials for long-term saltwater durability in racing environments.
- Flexible Gear Ratios — Options including 1.69:1, 1.53:1, 1.40:1, and 1.30:1 to optimize for high-RPM engines, prop pitch, and vessel weight.
| Specification | Details |
|---|---|
| Max Power Capacity | 1650 HP (1231 kW) |
| Input Torque Rating | 1600 ft-lbs |
| Available Gear Ratios | 1.69:1, 1.53:1, 1.40:1, 1.30:1 |
| Lower Unit Design | Surface-piercing gearcase |
| Lubrication | Dry-sump drive & transmission |
| Propeller Compatibility | Up to 18″ diameter (CNC cleavers recommended) |
| Corrosion Protection | Active anode + advanced materials |
| Drive Weight (Approx.) | ~290 kg (640 lbs) |
| Ideal Applications | Offshore racing, high-performance boats, competition vessels |
Advantages Table: M8 for Extreme Marine Performance
| Feature | M8 Benefit | Boating Advantage |
|---|---|---|
| Surface-Piercing Design | Lower engine mount & reduced drag | Improved handling, lower CG, better hull flexibility |
| Dry-Sump System | Minimal parasitic losses | Maximum efficiency & power output |
| Twin-Pinion & Robust Internals | Handles 1650 HP / 1600 ft-lbs torque | Reliable under extreme loads & high RPMs |
| High Power Capacity | Up to 1650 HP | Enables blistering speeds in race/offshore setups |
| Gear Ratio Flexibility | Multiple shallow ratios | Optimized for high-pitch props & top-end performance |
| Durability | Commercial/race-grade components | Longevity in demanding saltwater racing |
Comparison Table: Mercury Racing M8 vs MerCruiser Bravo One & Bravo Three
| Feature | Mercury Racing M8 (Surface-Piercing) | MerCruiser Bravo One (Single Prop) | MerCruiser Bravo Three (Dual Contra-Rotating) |
|---|---|---|---|
| Max HP (Gas) | 1650 HP | 600 HP | 525 HP |
| Design Focus | Surface-piercing, high-torque racing | High-speed single-prop performance | Balanced dual-prop efficiency |
| Torque Capacity | 1600 ft-lbs | Lower (recreational) | Lower (recreational) |
| Speed Capability | Extreme (offshore/race, 100+ mph potential) | 100+ mph in light hulls | Up to 65 mph (balanced) |
| Best For | Competition, offshore racing, high-HP builds | Sport boats, stepped hulls | Cruisers, towing, general performance |
| Efficiency/Handling | Optimized for speed & low CG | Top-end speed leader | Superior mid-range & control |
| Durability | Race-grade robust internals | High (X/XR variants) | Good recreational |
