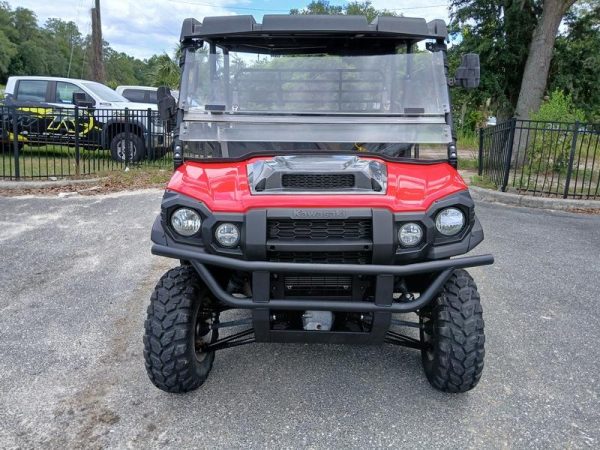

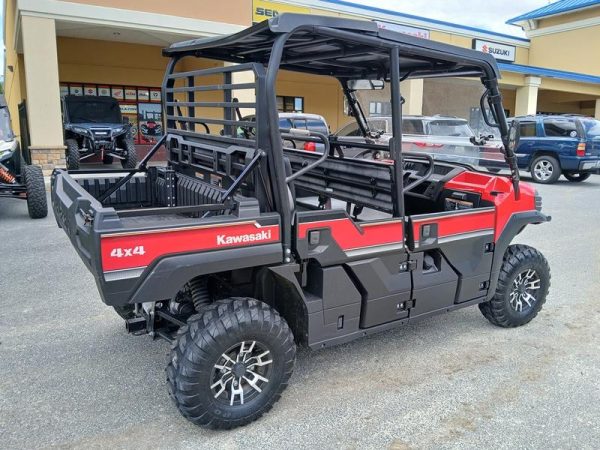

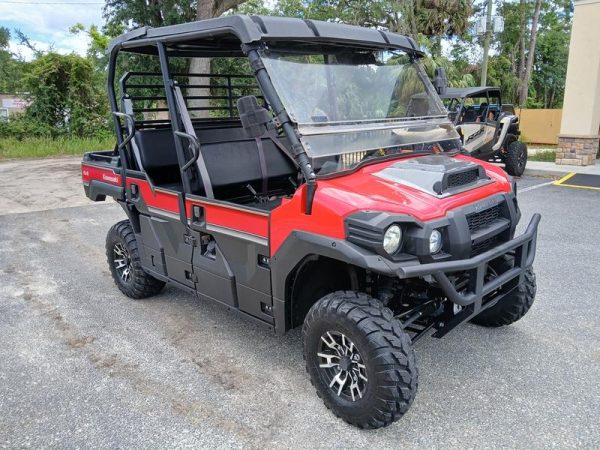

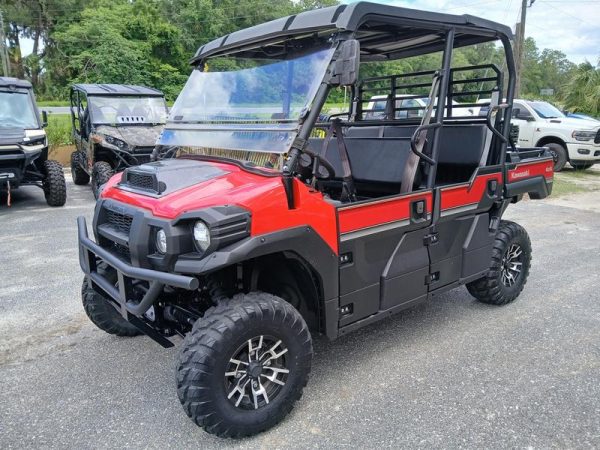

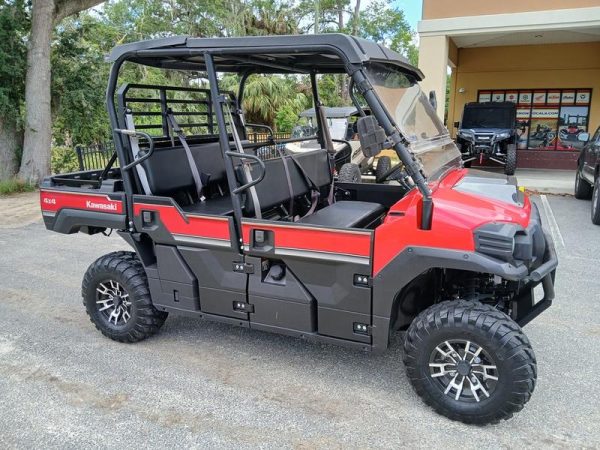

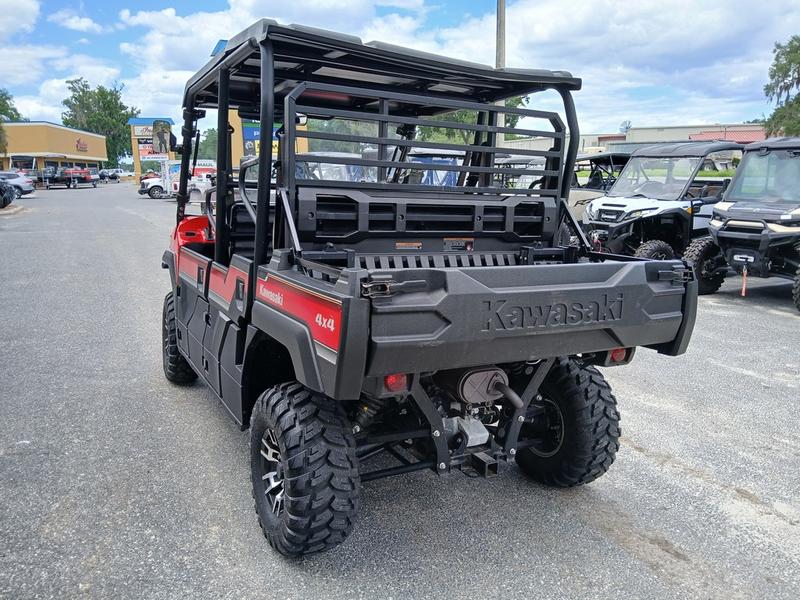

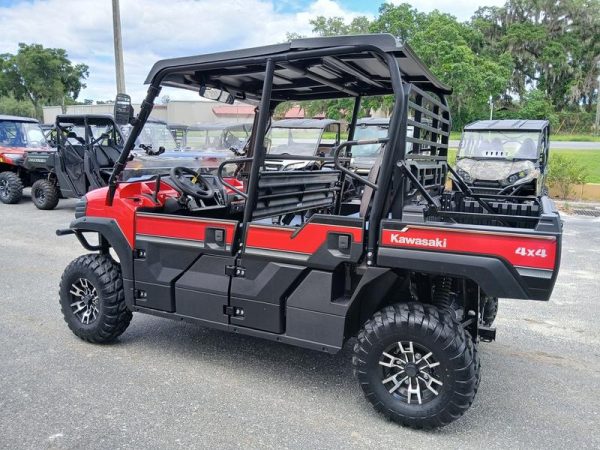

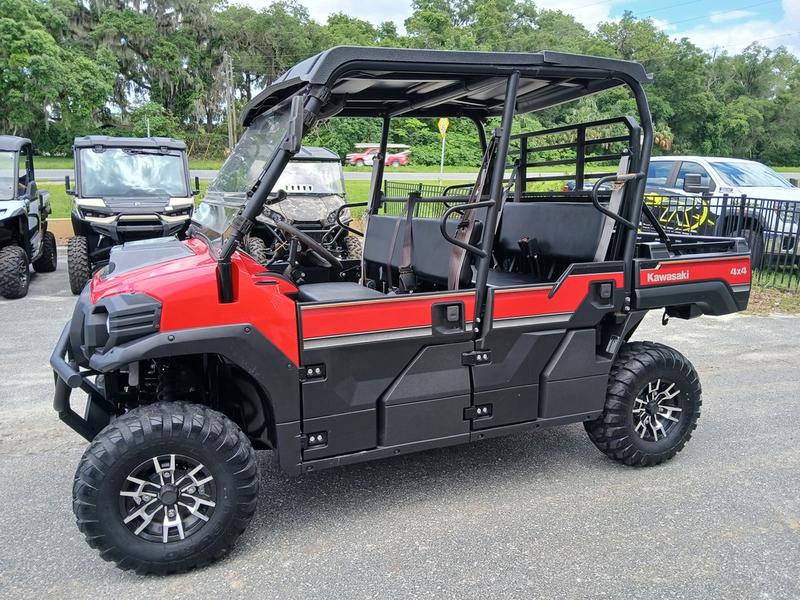

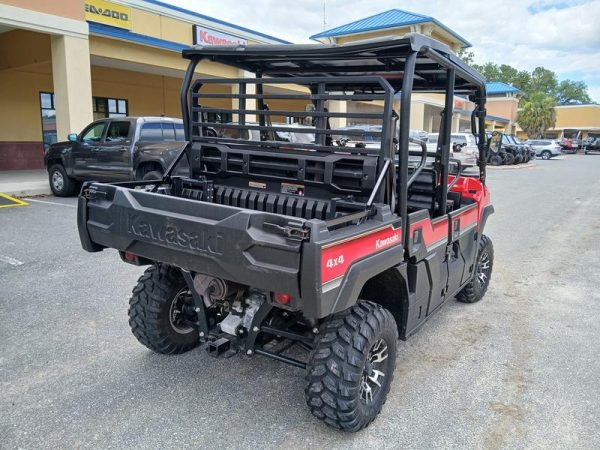

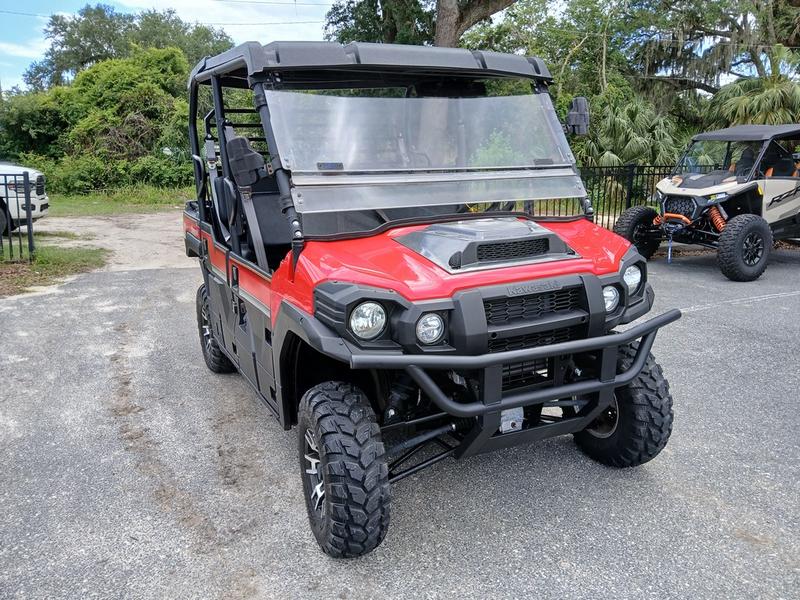

Pre-Owned 2021 Kawasaki Mule Pro-FXT™ EPS LE
812cc Inline Triple • 6-Passenger • Electric Power Steering • 1,000 lb Cargo Bed • 2,000 lb Tow Rating • 36-Month Warranty
ENGINE
812cc Inline 3-Cylinder, Liquid-Cooled
POWER
48 hp @ 5,500 RPM
TORQUE
48 ft-lb @ 3,500 RPM
SEATING
6 Passengers (Folding Bench Seats)
DRIVE SYSTEM
Selectable 2WD / 4WD
CARGO BED
1,000 lb Tilting Steel Bed
TOWING CAPACITY
2,000 lb
GROUND CLEARANCE
10.2 in. (259 mm)
Performance Specifications at a Glance
|
Specification |
Detail |
|
Engine Displacement |
812 cc (49.5 ci) |
|
Engine Configuration |
Inline 3-cylinder, 4-stroke, liquid-cooled, DOHC, 12 valves (4/cylinder) |
|
Horsepower |
48 hp (35.8 kW) @ 5,500 RPM |
|
Torque |
48 ft-lb (65 Nm) @ 3,500 RPM |
|
Transmission |
CVT — Hi / Low range with reverse, shaft drive |
|
Drive System |
Selectable 2WD / 4WD |
|
Suspension Travel (Front) |
8.7 in. (221 mm) |
|
Suspension Travel (Rear) |
8.7 in. (221 mm) |
|
Towing Capacity |
2,000 lb (907 kg) |
|
Payload Capacity |
1,616 lb (733 kg) |
|
Cargo Bed Capacity |
1,000 lb (454 kg), 14.6 cu ft |
|
Wet Weight |
1,922.8 lb (872 kg) |
|
Fuel Capacity |
7.9 gal (29.9 L) |
|
Warranty |
36 months (3 years) Kawasaki Limited Warranty |
Engine — Kawasaki 812cc Inline Triple
The 2021 Mule Pro-FXT™ EPS LE is powered by Kawasaki’s proven 812cc liquid-cooled inline 3-cylinder 4-stroke engine, featuring DOHC valve actuation with 12 valves (4 per cylinder). With a bore of 72 mm and a stroke of 66.5 mm, the engine produces 48 horsepower at 5,500 RPM and 48 ft-lb of torque at a low 3,500 RPM — delivering broad, usable power across the rpm range for heavy hauling and towing tasks.
|
Engine Specification |
Detail |
|
Type |
4-stroke, inline 3-cylinder, liquid-cooled, DOHC |
|
Displacement |
812 cc (49.5 ci) |
|
Bore × Stroke |
72.0 mm × 66.5 mm (2.83 × 2.62 in.) |
|
Compression Ratio |
9.5:1 |
|
Valvetrain |
DOHC, 12 valves (4 per cylinder) |
|
Horsepower |
48 hp (35.8 kW) @ 5,500 RPM |
|
Torque |
48 ft-lb (65 Nm) @ 3,500 RPM |
|
Fuel System |
Electronic Fuel Injection (EFI), 34 mm throttle body |
|
Fuel Type |
Regular unleaded (87 octane) |
|
Cooling |
Liquid-cooled |
|
Starter |
Electric start |
|
Fuel Capacity |
7.9 gal (29.9 L) |
Transmission — CVT with Hi/Lo Range
The Mule Pro-FXT™ EPS LE uses a continuously variable transmission (CVT) paired with a two-speed Hi/Lo range and reverse gear. Power is delivered to all four wheels via a shaft-drive system, eliminating chain and sprocket maintenance. A speed governor allows owners to limit top speed as needed — ideal for worksites requiring speed-controlled operation.
|
Transmission Specification |
Detail |
|
Type |
Continuously Variable Transmission (CVT) |
|
Range |
Hi / Low |
|
Reverse |
Yes |
|
Final Drive |
Shaft drive |
|
Speed Governor |
Included (adjustable) |
Drive System — Selectable 2WD / 4WD
The Pro-FXT™ EPS LE features selectable 2WD/4WD for versatility across terrain types. In 4WD mode, a limited-slip front differential improves traction over uneven ground, while a rear differential lock can be engaged for maximum pull when conditions demand it.
|
Drive Specification |
Detail |
|
Drive Modes |
Selectable 2WD / 4WD |
|
Front Differential |
Limited-slip |
|
Rear Differential |
Locking (diff lock) |
|
Towing Capacity |
2,000 lb (907 kg) |
|
Payload Capacity |
1,616 lb (733 kg) |
Suspension — Independent Double Wishbone, All Four Corners
Both the front and rear axles use independent double wishbone suspension with 8.7 inches (221 mm) of wheel travel at each corner. This independent setup allows each wheel to articulate over obstacles independently, keeping the cab level and maintaining tire contact with the ground for improved traction and a smoother ride — even with a full passenger load or heavy cargo.
|
Suspension Specification |
Detail |
|
Front Type |
Independent Double Wishbone |
|
Front Travel |
8.7 in. (221 mm) |
|
Rear Type |
Independent Double Wishbone |
|
Rear Travel |
8.7 in. (221 mm) |
|
Ground Clearance |
10.2 in. (259 mm) |
LE Package LIMITED EDITION
LIMITED EDITION DISTINCTION
The LE trim builds on the standard EPS model with an exclusive two-tone color scheme — Dark Matte Terrain Green with Matte Dark Black metallic accents — plus LE-specific graphics and badging. All LE utility features are factory-installed and ready to work from delivery.
|
LE / Standard Feature |
Detail |
|
Color Scheme |
Dark Matte Terrain Green / Matte Dark Black Metallic (LE exclusive) |
|
Graphics |
LE-exclusive badging and decals |
|
Hard Cab Canopy |
Factory steel roof with integrated cab structure |
|
Hard Cab Doors |
Factory-installed hard doors on both cab sides |
|
Brush Guard |
Steel front brush guard — factory fitted |
|
Radiator Guard |
Protects radiator from debris intrusion |
|
Front Bumper |
Heavy-duty steel front bumper |
|
Fender Flares |
Front and rear flares — protect cab from roost and mud |
|
Bash Plate / Skid Plate |
Underbody protection for the drivetrain |
|
Cargo Bed |
42.7 × 53.7 × 11 in. tilting steel bed; 1,000 lb / 14.6 cu ft |
|
Cab/Bed Divider |
Separates rear passenger area from cargo bed |
|
Tow Hitch |
2-in. receiver hitch, 2,000 lb tow rating |
6-Passenger Seating
The Mule Pro-FXT™ EPS LE carries up to six adults across two rows of three-person bench seating. The rear bench seat folds flat, converting the cab into a three-passenger vehicle with extended cargo space in seconds — no tools required. Three-point seat belts are standard at all seating positions.
|
Seating Specification |
Detail |
|
Capacity |
6 passengers (3 + 3) |
|
Rear Bench |
Folding — converts to 3-passenger + expanded cargo mode |
|
Seat Belts |
Three-point at all positions |
Tires, Wheels & Brakes
|
Specification |
Detail |
|
Front Tires |
Duro 26 × 9-12 |
|
Rear Tires |
Duro 26 × 11-12 |
|
Wheels |
12-in. aluminum |
|
Front Brakes |
Dual hydraulic disc, 8.3 in. (212 mm) diameter |
|
Rear Brakes |
Dual hydraulic disc, 8.3 in. (212 mm) diameter |
Steering — Electric Power Steering (EPS)
Factory Electric Power Steering (EPS) reduces steering effort at low speeds and over obstacles, minimizing driver fatigue during extended work sessions. EPS also provides steering feedback that increases proportionally with speed, maintaining stability on open terrain.
Dimensions & Cargo
|
Dimension |
Measurement |
|
Overall Length |
~133 in. (3,378 mm) |
|
Overall Width |
64 in. (1,626 mm) |
|
Overall Height |
79.5 in. (2,019 mm) |
|
Wheelbase |
92.3 in. (2,344 mm) |
|
Ground Clearance |
10.2 in. (259 mm) |
|
Minimum Turning Radius |
16 ft |
|
Wet Weight |
1,922.8 lb (872 kg) |
|
Payload Capacity |
1,616 lb (733 kg) |
|
Towing Capacity |
2,000 lb (907 kg) |
|
Fuel Capacity |
7.9 gal (29.9 L) |
|
Cargo Bed — L × W × H |
42.7 × 53.7 × 11 in. (1,085 × 1,364 × 279 mm) |
|
Cargo Bed Capacity |
1,000 lb (454 kg) / 14.6 cu ft |
|
Cargo Bed Material |
Steel, tilting with cab/bed divider |
Technology & Instrumentation
|
Feature |
Detail |
|
Steering |
Electric Power Steering (EPS) |
|
Instrumentation |
Digital multi-function display: speedometer, trip odometer, hour meter, clock |
|
Temperature Warning |
Engine over-temperature warning light |
|
Fuel Gauge |
Yes — analog/digital |
|
Power Outlet |
12V accessory outlet |
|
Lighting |
Halogen headlights; tail and brake lights |
|
Interior Storage |
Glove box with 2 cupholders |
|
Seat Belts |
Three-point belts — all positions |
|
Tow Hitch |
2-in. receiver hitch (standard) |
Warranty & Coverage
|
Coverage |
Detail |
|
Limited Warranty |
36 months (3 years) — Kawasaki Limited Warranty |
|
Coverage Type |
Defects in materials and workmanship |
|
Contact |
See dealer for full warranty terms and conditions |
