Description

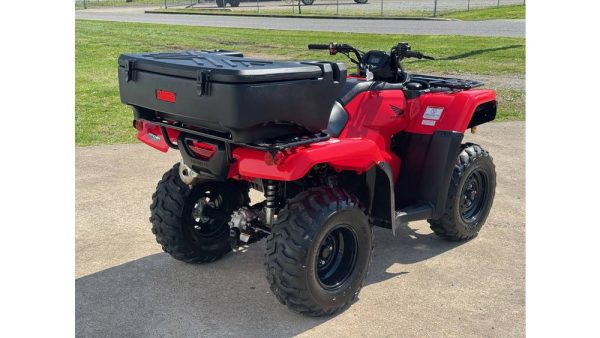

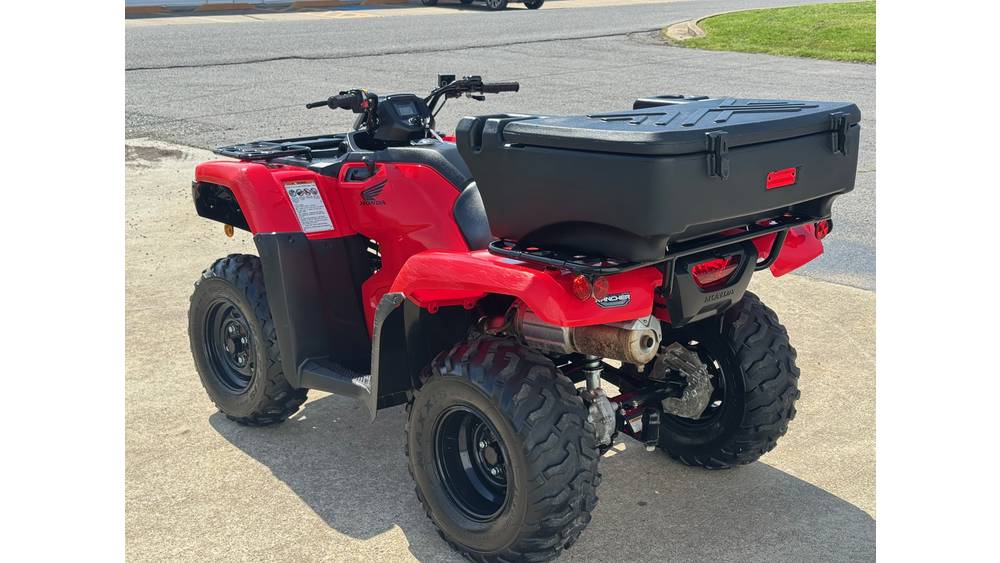

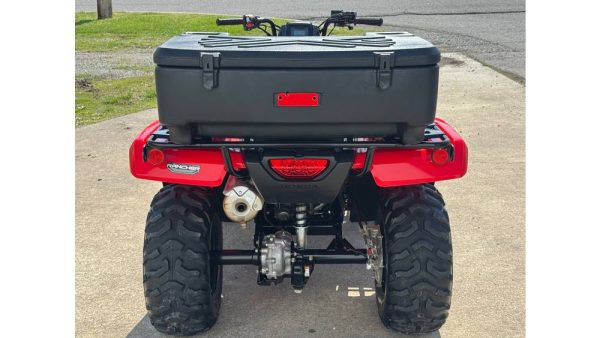

Pre-Owned 2023 Honda Rancher 420 4X4 Foot-Shift
YOUR JOB. YOUR ADVENTURE. YOUR RANCHER. Everyone knows our line of Honda Rancher all-terrain vehicles are legendary for their long life, can-do toughness and Honda reliability. And with eight models in our 2023 Rancher lineup, you have plenty of freedom to pick and choose the one that’s a perfect match for your needs and your budget . The 2023 Honda Rancher 420 4×4 Foot-Shift delivers the proven reliability, legendary performance, and versatile utility that Honda is known for—all in a rugged, easy-to-handle package with the engaging control of a five-speed foot-shift transmission. Whether you’re tackling tough chores on the farm or exploring backcountry trails, this ATV is engineered to get the job done .
PERFORMANCE SPECIFICATIONS
|
Attribute |
Specification |
|
Engine |
420cc liquid-cooled OHV wet-sump longitudinally mounted single-cylinder four-stroke |
|
Valve Train |
OHV; two valves per cylinder |
|
Bore x Stroke |
86.5mm x 71.5mm |
|
Compression Ratio |
9.9:1 |
|
Induction |
Programmed Fuel Injection (PGM-FI), 34mm throttle body |
|
Ignition |
Full transistorized with electronic advance |
|
Starter |
Electric with optional auxiliary recoil |
|
Driveline |
Direct front and rear driveshafts with TraxLok® and torque-sensing front differential |
|
Top Speed (Estimate) |
Approximately 50-55 mph (based on utility ATV class standards) |
|
Transmission |
Five-speed manual foot-shift with reverse and automatic clutch |
|
Clutch |
Automatic |
|
Drive System |
Selectable 2WD / 4WD with TraxLok® |
|
Towing Capacity |
848 lbs. |
|
Fuel Capacity |
3.9 gal., incl. 1.3 gal. reserve |
|
Curb Weight |
615 lbs. (includes all standard equipment, required fluids and full tank of fuel) |
|
Seat Height |
33.6 in. |
|
Ground Clearance |
7.1 in. |
SPEED & PERFORMANCE PROFILE
50-55 mph Estimated Top Speed:
The 2023 Rancher 420 4×4 Foot-Shift is engineered for versatile utility and trail performance, with an estimated top speed of approximately 50-55 mph. This provides ample velocity for property management, trail riding, and recreational adventures while maintaining the control and stability expected from a Honda utility ATV. The five-speed manual transmission with automatic clutch allows operators to match vehicle speed and power delivery to the task at hand, with genuine compression braking for better speed control when operating in steep terrain .
420cc Fuel-Injected Engine:
The Rancher is powered by a proven 420cc liquid-cooled, OHV single-cylinder four-stroke engine that delivers strong, reliable performance . Engine highlights include:
- OHV valve train with two valves per cylinder for durable, reliable operation
- Programmed Fuel Injection (PGM-FI) with 34mm throttle body, 12-hole injector, and oxygen sensor that allows fuel mapping to instantaneously adjust to any riding condition—ensuring trouble-free operation in the cold and at varying altitudes while reducing emissions and enhancing fuel efficiency
- Longitudinal engine layout routes power straight to the wheels without unnecessary right-angle detours, reducing powertrain friction and putting more grunt to the ground
- Semi-dry-sump design lowers the engine’s center of gravity for enhanced handling and allows for better ground clearance
- Liquid cooling for consistent performance during demanding operation
Five-Speed Foot-Shift Transmission with Automatic Clutch:
The manual transmission offers precise control with the convenience of an automatic clutch, eliminating the need for a clutch lever while maintaining true engine braking capability for confident descents . The five-speed gearbox with reverse gives you complete control over power delivery in any situation.
TraxLok® Selectable 2WD/4WD System:
The rock-solid system lets you choose either 2WD or 4WD instantly, giving you the freedom to choose between lighter steering (in 2WD) and maximizing available traction (in 4WD) when you need it most . The torque-sensing front differential provides optimal power delivery in 4WD mode.
- Driveline Type: Selectable 4X2 / 4X4
- Length: 82.8 in; 2103.1 mm
- Width: 47.4 in; 1204 mm
- Height: 46.2 in; 1173.5 mm
- Wheelbase: 50 in; 1270 mm
- Ground Clearance: 7.1 in; 180.3 mm
- Wet Weight: 615 lbs; 279 kg
- Towing Capacity: 848 lbs; 384.7 kgs
- Fuel Capacity: 3.9 gal; 14.8 l
- Frame: Steel
- Front Suspension Type: Independent Double Wishbone
- Front Travel: 6.7 in; 170 mm
- Rear Suspension Type: Swing Arm
- Rear Travel: 6.7 in; 170 mm

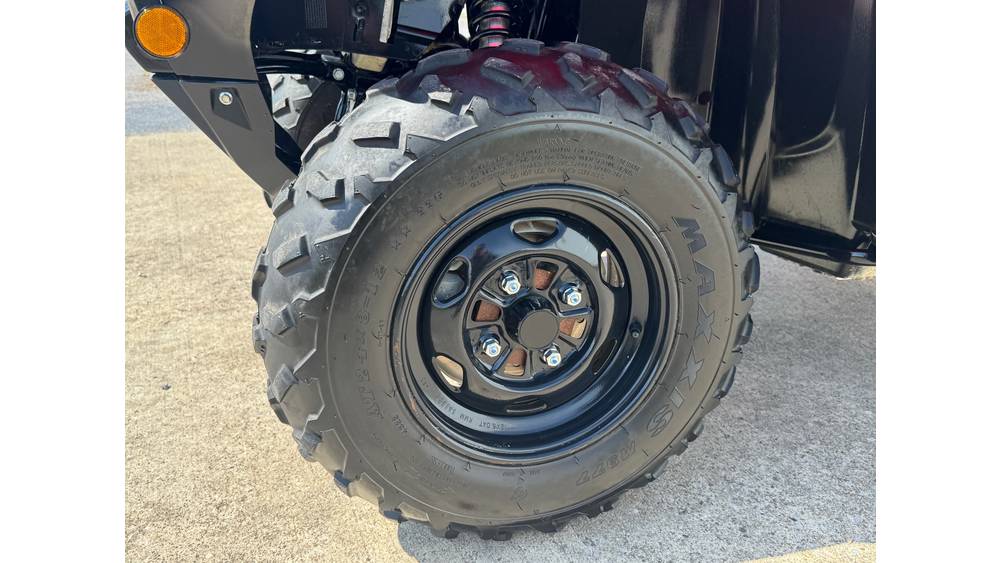

- Front Tire (Full Spec): Maxxis® 24 x 8-12
- Rear Tire (Full Spec): Maxxis® 24 x 10-11
- Front Brake Type: Dual Hydraulic Disc
- Rear Brake Type: Sealed Drum
- Seat Height: 33.7 in; 856 mm
- Number Of Seats: 1

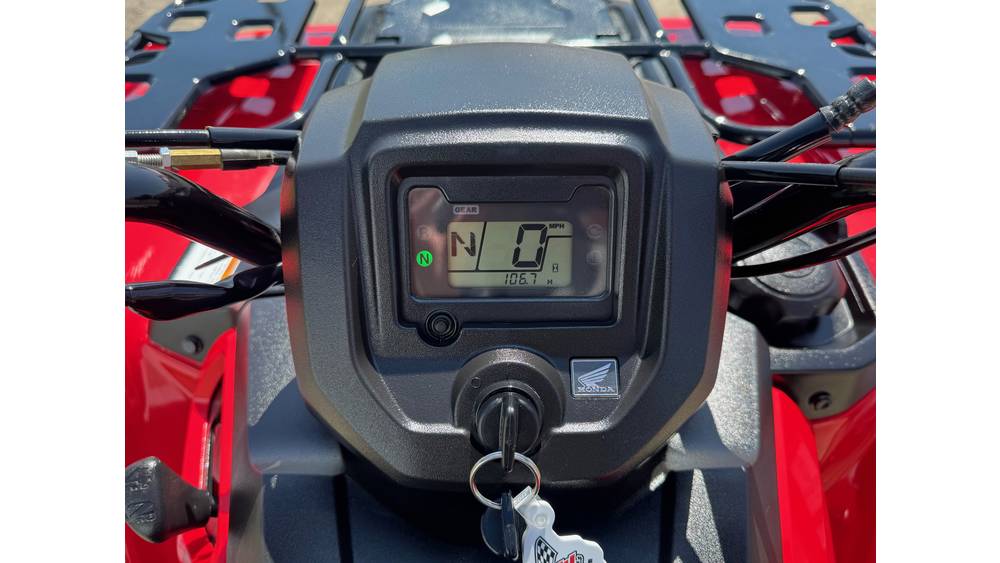

- Speedometer: Standard
- Trip Odometer: Standard
- Capacity: 66 lbs; 29.9 kgs
- Capacity: 133 lbs; 60.3 kgs
- Type: Halogen
- Windshield: Optional
- Heated Hand Grips: Optional
