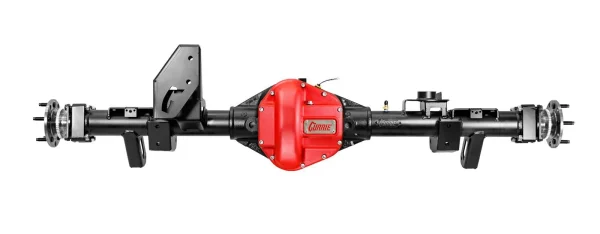

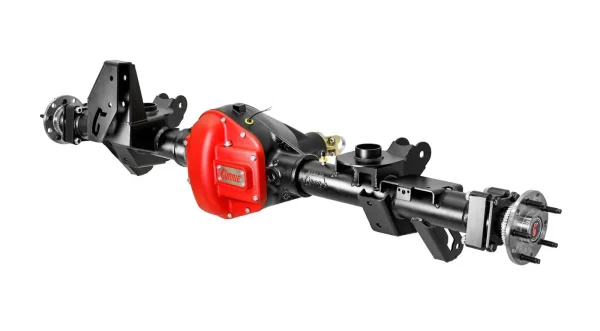

Currie 60 Crate Axles CE-KR6100E51

Description

Currie 60 Crate Axles CE-KR6100E51

Brand: Currie Enterprises

Manufacturer’s Part Number: CE-KR6100E51

Part Type: Axle Assemblies

Product Line: Currie 60 Crate Axles

Summit Racing Part Number: CUR-CE-KR6100E51

Axle Type: Bolt-in

Axle Housing Color: Black

Overall Length (in.): 65.38 in.

Axle Shafts Included: Yes

Axle Shaft Spline Quantity: 40

Brakes Included: No

Brake Type: Disc brake

Third Member Included: Yes

Ring and Pinion Included: Yes

Ring and Pinion Ratio: 5.13:1

Wheel Studs Included: No

Wheel Stud Pattern: 5 x 5.00 in.

Wheel Stud Thread Size: 1/2 in.-20

Bearings Included: Yes

Seals Included: Yes

Remanufactured: No

Quantity: Sold as a kit.

Currie 60 Crate Axles

Currie crate axles deliver unrivaled strength, along with trail-tested, field-proven design. Their Currie 60 axles are complete pre-configured packages, for both front and rear applications, with direct bolt-in simplicity designed for severe off-road use, V8 horsepower, and up to 37 in. tall tires. They feature the Currie exclusive high pinion nodular iron radius bottom center section for improved obstacle slide over, heavy-duty 3 in. tubes, and the industry’s strongest standard axle–full 35-spline inner/outer front and 40-spline semi-floating rear axles–making the Currie 60 axles the clear choice for serious off-road users. They increase axle width to 68.75 in. between wheel mounting surfaces for improved clearance with large tires. The front axle features 5 x 5 1/2 in. wheel lug pattern, while the rear is dual-drilled with both 5 x 5 in. (to match stock front axles) and 5 x 5 1/2 in. Upgrade strength, reliability, and functionality; replace your stock axles with Currie 60 crate axles.
